1. LEFT UNIVERSAL JOINT
2. STEERING AXLE
3. NUT M12
4. NUT M12X40
5. WASHER 14
6. WASHER 14
7. BOLT M14X45
8. KING PIN
9. CYLINDRICAL PIN 10X20
10. BUSHING
11. BEARING 198908K
12. RIGHT UNIVERSAL JOINT
13. HEX NUT M12X30
14. COTTER PIN 6.3X50
15. OIL SEAL
16. WHEEL BOLT
17. WHEEL
18. WHEEL NUT
19. WHEEL CAP
20. NUT M20X2
21. WASHER 30
22. TAPERED ROLLER BEARING
23. BEARING 30211
24. GREASE NIPPLE Z1/8
25. OIL SEAL
26. NEEDLE BEARING
27. O-RING
28. ADJUSTING SHIM
29. LINK PIN
30. LINK ROD
31. RETAINING PLATE
32. WASHER 8
33. BOLT M8X16
34. KNUCKLE BEARING
35. NIPPLE M6
36. BUSHING
37. STEERING CYLINDER

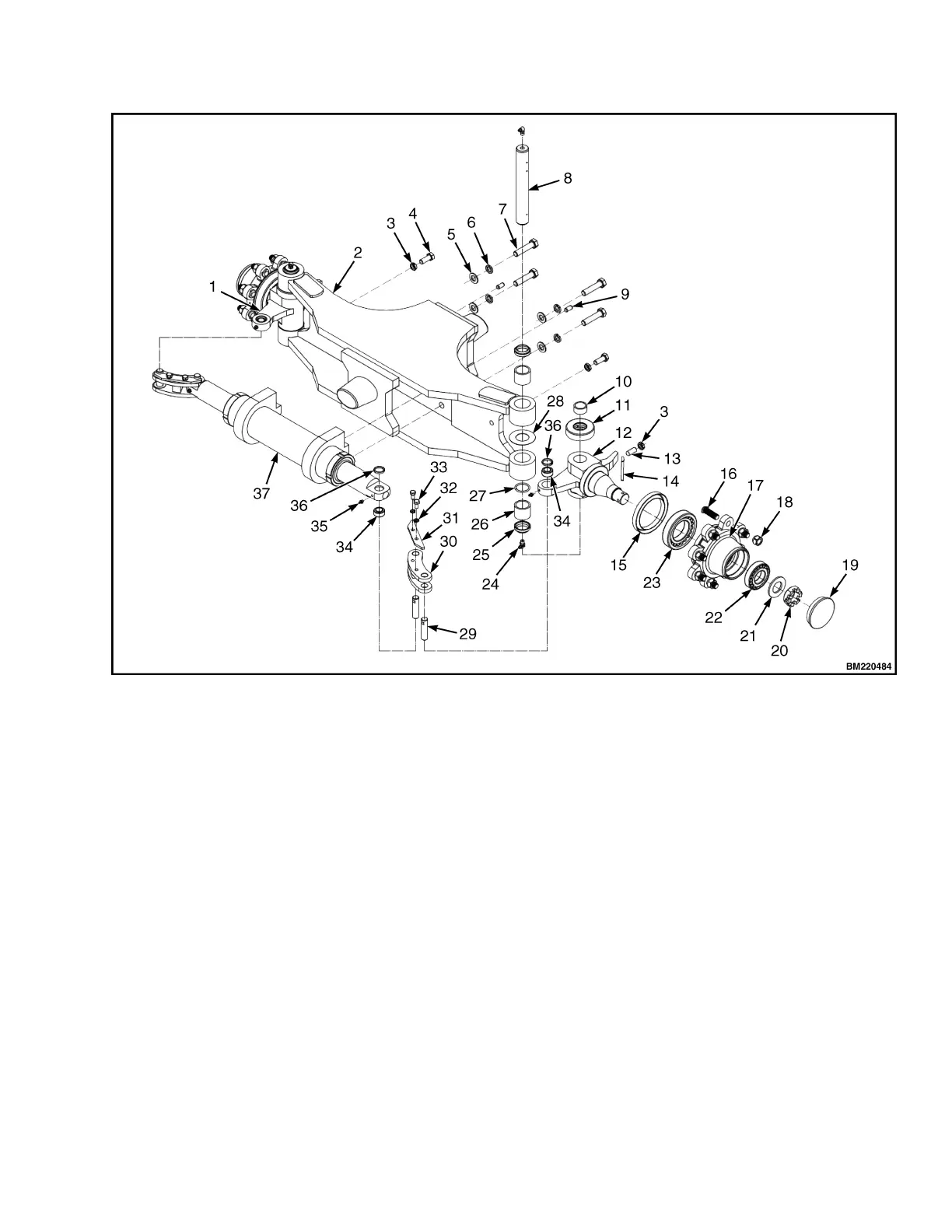

Figure 22. Steering Axle
Steering Knuckle and Steering King Pin
Steering knuckle is mounted between the upper and
lower shaft sleeves on the two ends of steering axle
body using steering knuckle king pin, thrust bearing,
and gasket. The middle part of king pin is locked on
steering knuckle using grub screw, while the two ends
8000 YRM 2199 Steering and Drive Axle Information
25
