Stereo sound system
LINE OUT
LR
2 Setting Up: Power & Connections
Audio Connections —————————————————————————

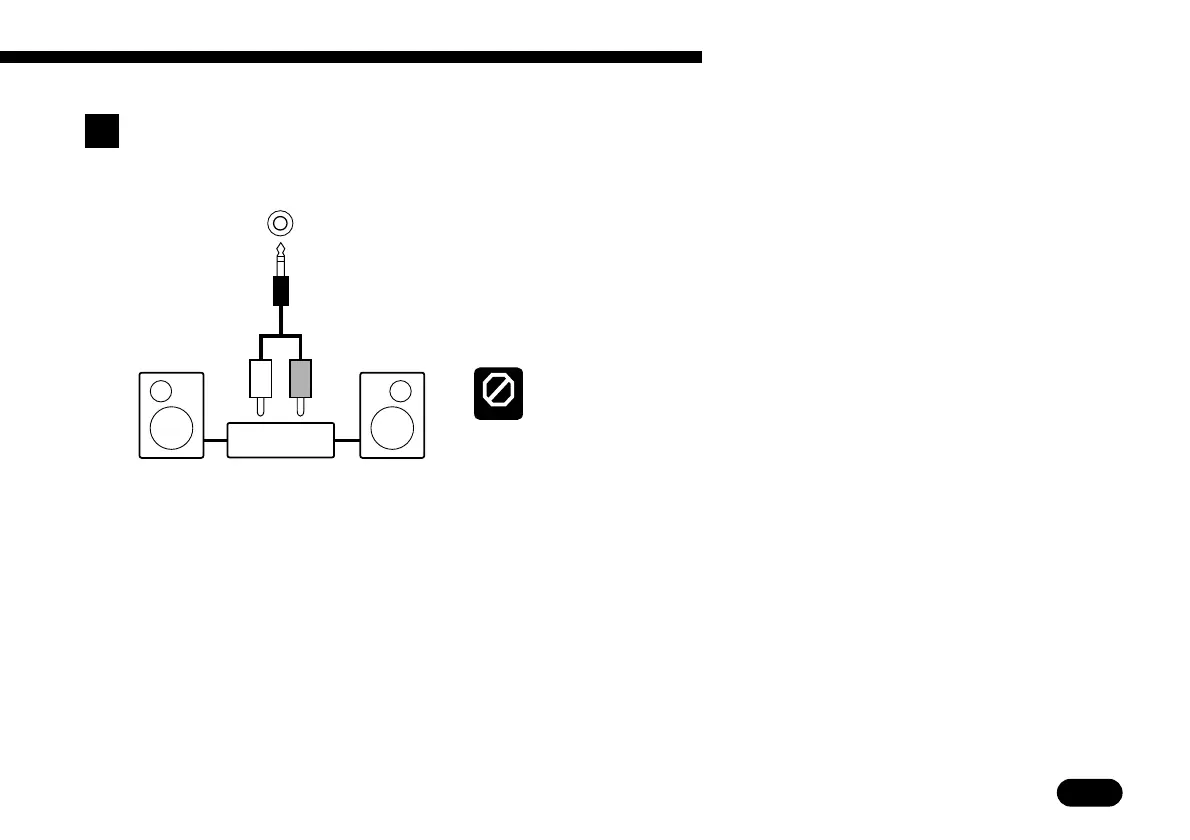

The simplest way to monitor the QY20 sound is via a pair of stereo
headphones (miniature stereo phone plug type) plugged into the
PHONES jack. If you want to use an external stereo sound system,
however, use the LINE OUT jack and the supplied “Y” cable (mini-
ature stereo phone plug to dual RCA pin plugs). The white RCA pin
plug goes to the left-channel input of your stereo sound system and
the red plug goes to the right-channel input.
CAUTION
Make sure that both the QY20 and your sound system are turned OFF
when making connections.
