PREPARATIONS ➤ Connecting speakers En 19

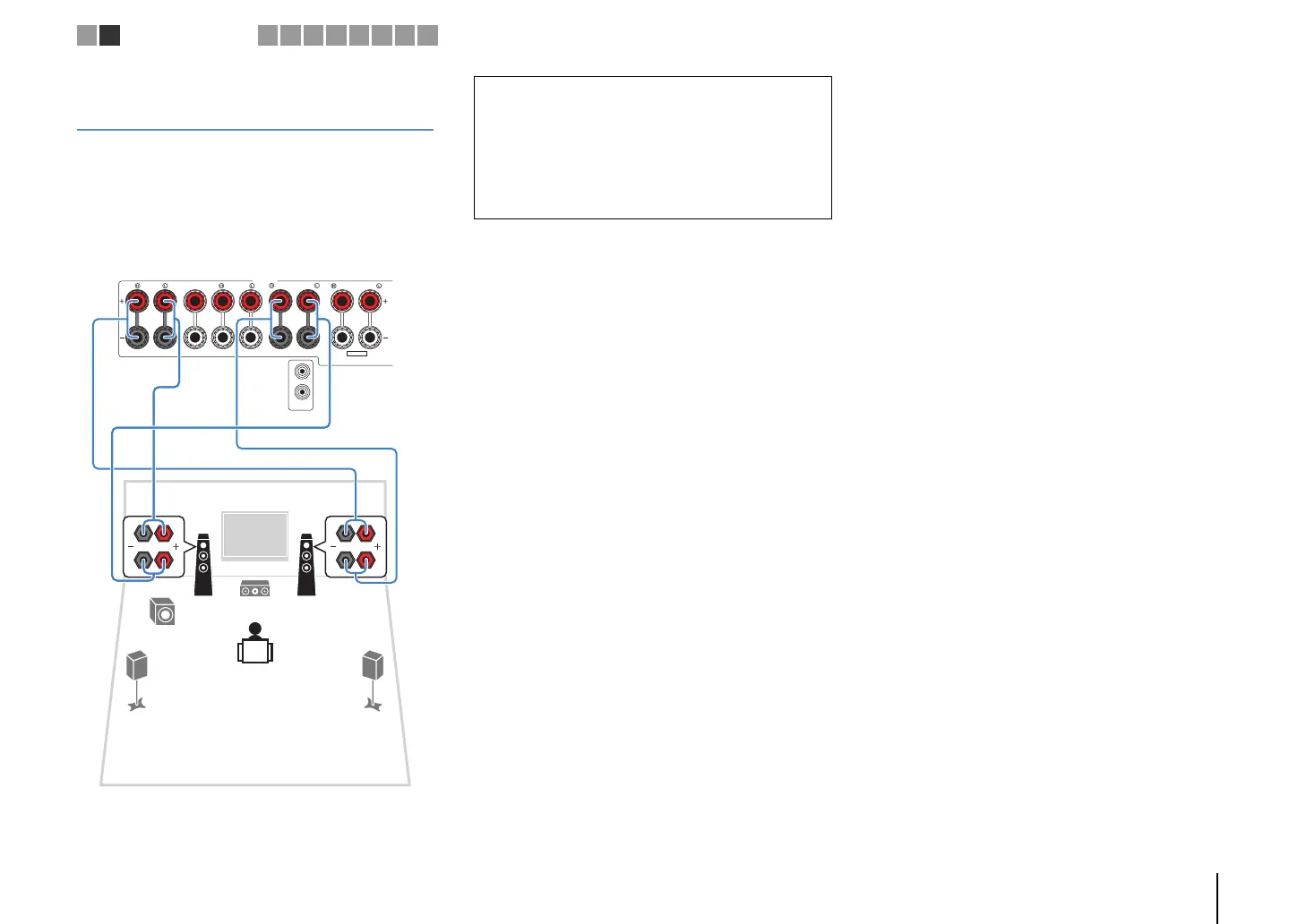

Connecting front speakers that
support bi-amp connections
When using front speakers that support bi-amp
connections, connect them to the FRONT jacks and
SURROUND BACK/BI-AMP jacks.
To enable the bi-amp function, set “Power Amp Assign”
(p.82) in the “Setup” menu to “5ch BI-AMP” after
connecting the power cable to an AC wall outlet.
FRONT CENTER SURROUND
SINGLE
SURROUND BACK/BI-AMP
ZONE 2/PRESENCE
AUDI O
OUT
ZONE 2
OUT
SUBWOOFER
2
1
SPEAKERS
EXTRA SP
AC IN
Caution
• Before making bi-amp connections, remove any brackets or
cables that connect a woofer with a tweeter. Refer to the
instruction manual of the speakers for details. If you are not
making bi-amp connections, make sure that the brackets or
cables are connected before connecting the speaker cables.
• Surround back speakers cannot be used during bi-amp
connections.
1 2
Speaker connections
3 4 5 6 7 8 9 10
