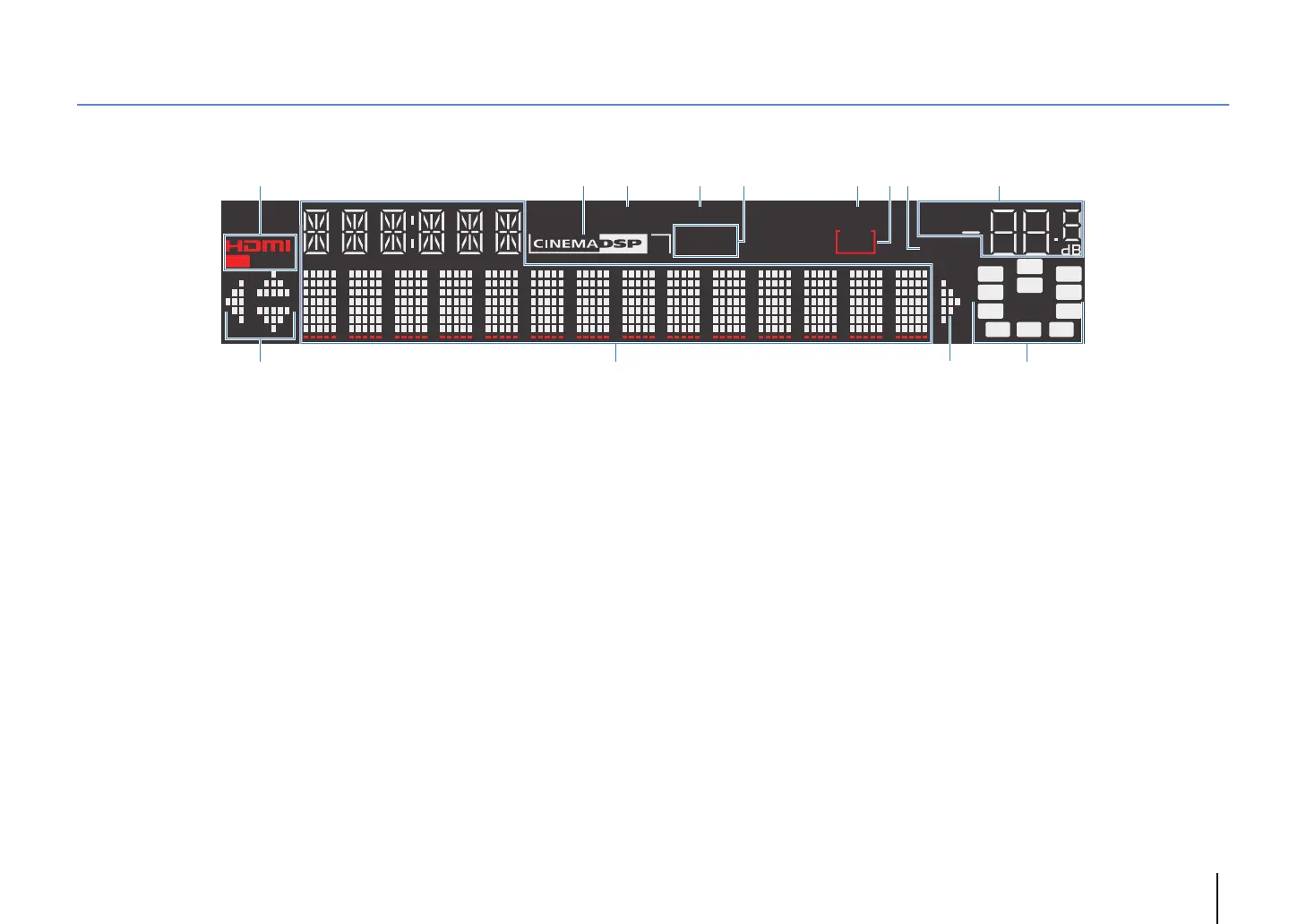

Front display (indicators)
1 HDMI
Lights up when HDMI signals are being input or output.
OUT
Lights up when HDMI signals are being output.
2 CINEMA DSP
Lights up when CINEMA DSP (p.42) is working.
CINEMA DSP n
Lights up when CINEMA DSP 3D (p.44) is working.
3 ENHANCER
Lights up when Compressed Music Enhancer (p.46) is
working.
4 ADAPTIVE DRC
Lights up when Adaptive DRC (p.70) is working.
5 STEREO
Lights up when the unit is receiving a stereo FM radio signal.
TUNED
Lights up when the unit is receiving an FM/AM radio station
signal.
6 SLEEP
Lights up when the sleep timer is on.
7 ZONE2
Lights up when audio output to Zone2 is enabled (p.66).
8 MUTE
Blinks when audio is muted.
9 Volume indicator
Indicates the current volume.
0 Cursor indicators
Indicate the remote control cursor keys currently operational.
A Information display
Displays the current status (such as input name and sound
mode name). You can switch the information by pressing
INFO (p.68).
B Speaker indicators
Indicate speaker terminals from which signals are output.
A Front speaker (L)
S Front speaker (R)
D Center speaker
F Surround speaker (L)
G Surround speaker (R)
H Surround back speaker (L)
J Surround back speaker (R)
K Surround back speaker
Z Presence speaker (L)
X Presence speaker (R)
L Subwoofer
SW
C
LR
PL PR
SL SR
