Components
28
EMU25830
Fuel joint
This joint is used to connect the fuel line.
EMU43120
Fuel gauge
This gauge shows the approximate amount of
fuel remaining in the fuel tank.
EMU43150
Pressure relief tab
This is attached to the filler hole of the fuel
tank.
EMU43130
Fuel tank cap
This cap seals the fuel tank. To loosen the
cap, press and hold the pressure relief tab
and turn the cap counterclockwise.
EMU43141
Air vent screw
This screw is on the fuel tank cap. When turn-
ing the air vent screw counterclockwise, it is
loosened and the pressure in the fuel tank is
released to a certain pressure. Air is allowed
to enter the fuel tank while operating the en-
gine.
EMU26181
Remote control box
The remote control lever actuates both the
shifter and the throttle. The electrical switches
are mounted on the remote control box.
EMU26190
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved about 35° (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.

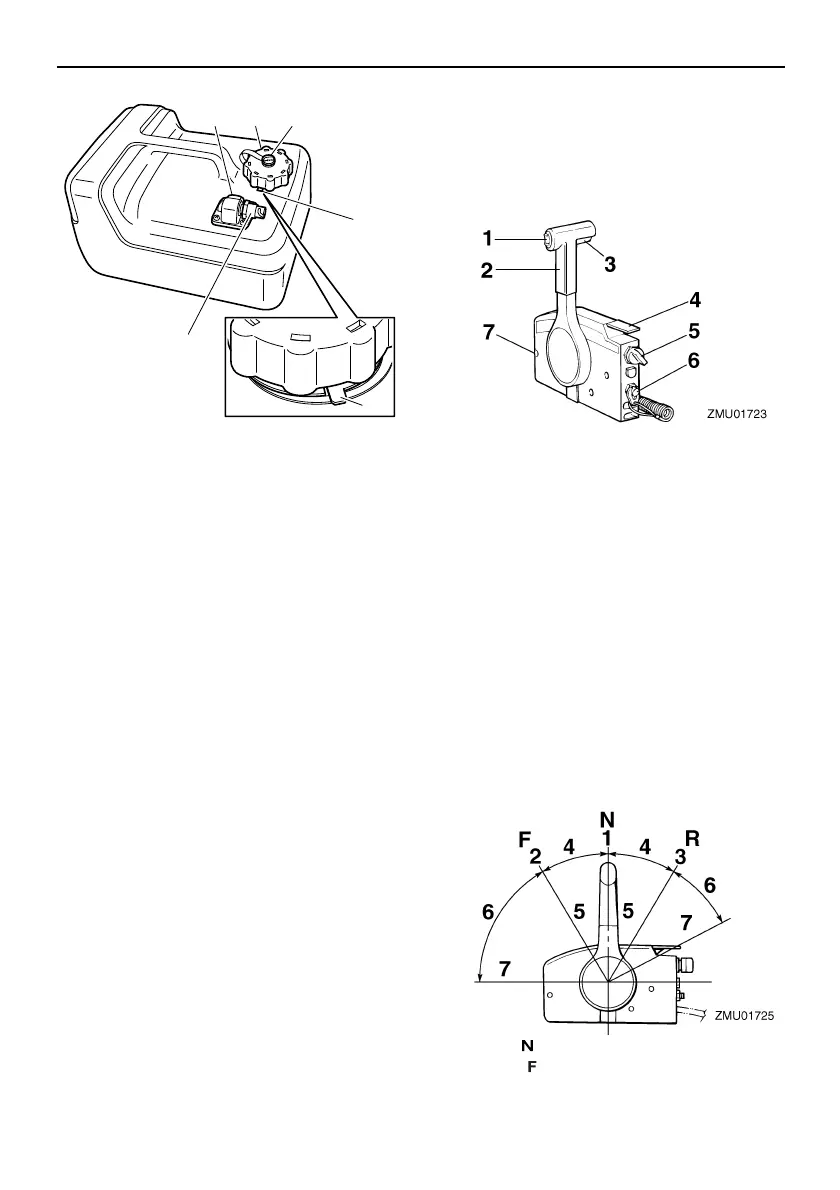

1. Fuel joint
2. Fuel gauge
3. Pressure relief tab
4. Fuel tank cap
5. Air vent screw
1. Power tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch / choke switch
6. Engine shut-off switch
7. Throttle friction adjuster
1. Neutral “ ”
2. Forward “ ”
U6DR30E0.book Page 28 Friday, November 30, 2012 4:27 PM
