Maintenance
91
2. Check the battery’s charge. If your boat is
equipped with the digital speedometer,
the voltmeter and low battery alert func-
tions will help you monitor the battery’s
charge. If the battery needs charging,
consult your Yamaha dealer.
3. Check the battery connections. They
should be clean, secure, and covered by
an insulating cover. WARNING! Bad
connections can produce shorting or
arcing and cause an explosion.
[EWM01912]
EMU29334

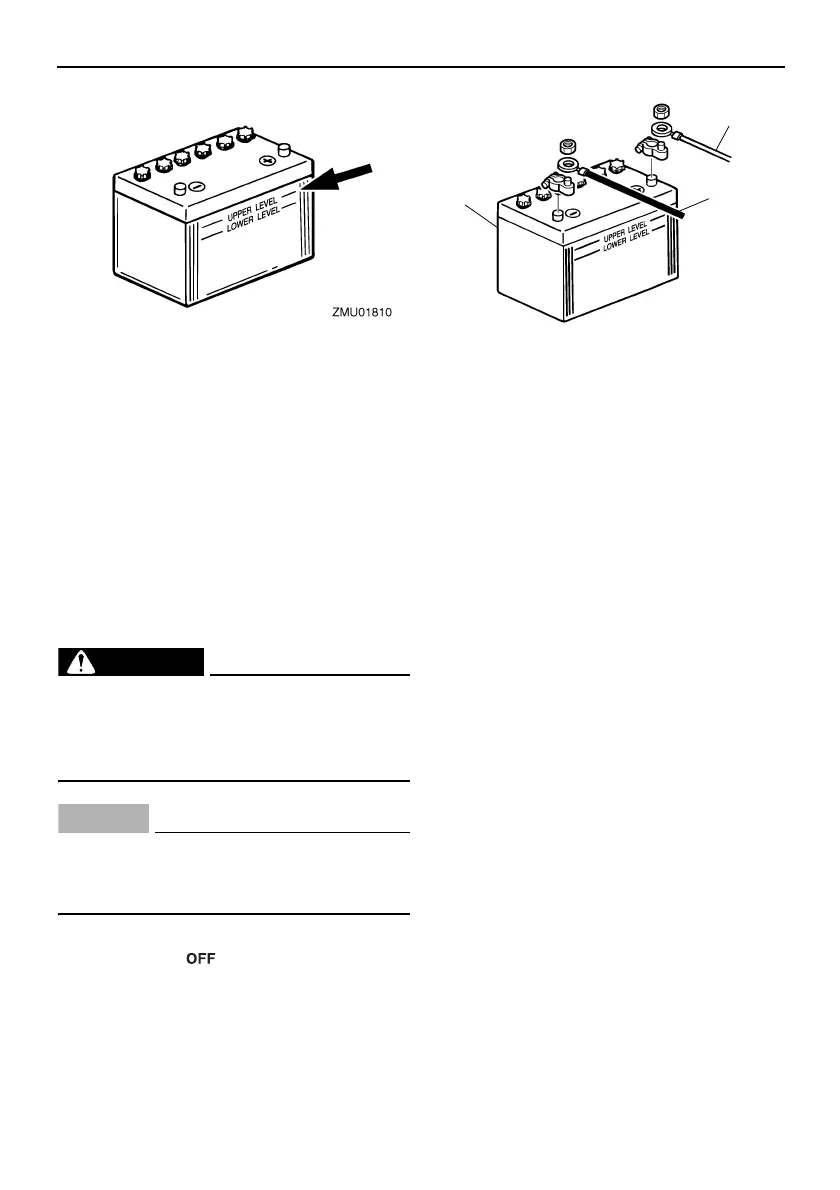

Connecting the battery
EWM00572
Mount the battery holder securely in a dry,
well-ventilated, vibration-free location in
the boat. Install a fully charged battery in
the holder.
ECM01124
Do not reverse the battery cables. Other-
wise, the electrical parts could be dam-
aged.
1. Make sure the main switch (on applicable
models) is “ ” (off) before working on
the battery.
2. Connect the red battery cable to the
POSITIVE (+) terminal first. Then con-
nect the black battery cable to the NEGA-
TIVE (-) terminal.
3. The electrical contacts of the battery and
cables must be clean and properly con-
nected, or the battery will not start the en-
gine.
EMU29371
Disconnecting the battery
1. Turn off the battery cut-off switch (if
equipped) and main switch. NOTICE: If
they are left on, the electrical system
can be damaged.
[ECM01930]
2. Disconnect the negative cable(s) from
the negative (-) terminal. NOTICE: Al-
ways disconnect all negative (-) ca-
bles first to avoid a short circuit and
damage to the electrical system.
[ECM01940]
3. Disconnect the positive cable(s) and re-
move the battery from the boat.
4. Clean, maintain, and store the battery ac-
cording to the manufacturer’s instruc-
tions.
1. Red cable
2. Black cable
3. Battery
U6DR30E0.book Page 91 Friday, November 30, 2012 4:27 PM
