Components
35
NOTICE
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard mo-
tor could shake loose from the tilt support
and fall. If the motor cannot be trailered in
the normal running position, use an addi-
tional support device to secure it in the tilt
position.
EMU26333

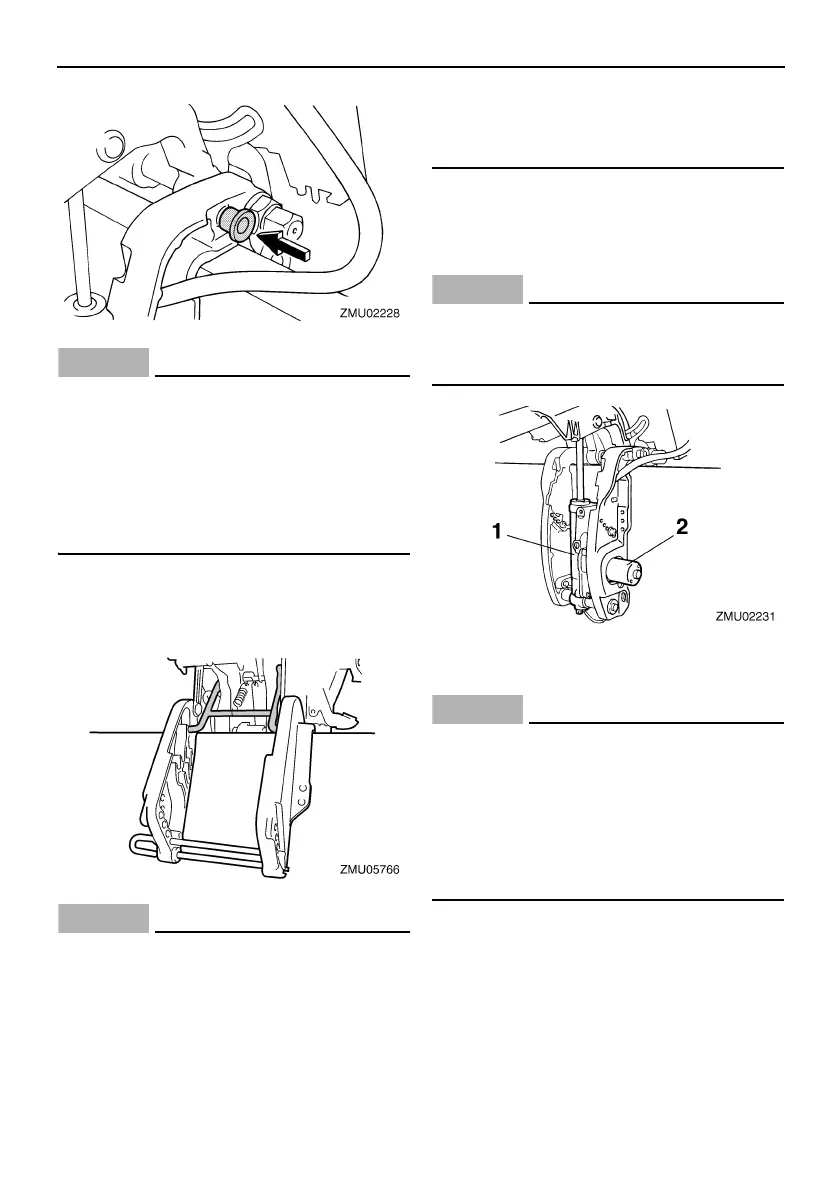

Tilt support bar
The tilt support bar keeps the outboard motor
in the tilted up position.
NOTICE
ECM01660
Do not use the tilt support bar when traile-
ring the boat. The outboard motor could
shake loose from the tilt support and fall.
If the motor cannot be trailered in the nor-
mal running position, use an additional
support device to secure it in the tilt posi-
tion.
EMU26361
Power tilt unit
This unit tilts the outboard motor up and down
and is controlled with the power tilt switch.
NOTICE
ECM00630
Do not step on or exert pressure on the
power tilt motor. The power tilt unit could
be damaged as a result.
NOTICE
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard mo-
tor could shake loose from the tilt support
and fall. If the motor cannot be trailered in
the normal running position, use an addi-
tional support device to secure it in the tilt
position.
EMU39263
Cowling lock lever
The cowling lock lever(s) is used to secure the
top cowling.
1. Power tilt unit
2. Power tilt motor
