Components
34

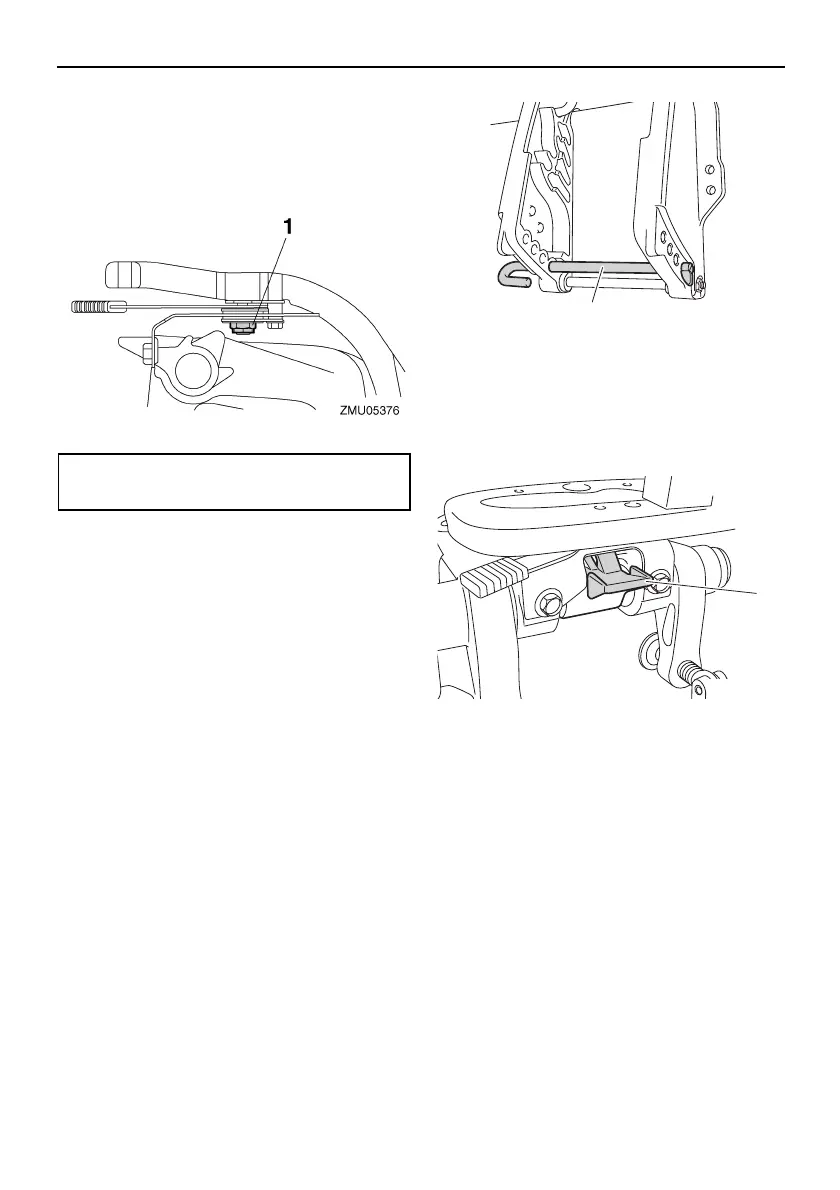

If the resistance does not increase even when
the lever is turned to the port side “A”, make
sure that the nut is tightened to the specified
torque.
● Steering movement is blocked when the
adjuster lever is set to the “A” position.
● Check the tiller handle for smooth move-
ment when the lever is turned to the star-
board side “B”.
● Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
EMU26262
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU30530
Tilt lock mechanism
The tilt lock mechanism is used to prevent the
outboard motor from lifting out of the water
when in reverse gear.
To lock it, set the tilt lock lever in the lock po-
sition. To release, push the tilt lock lever in the
release position.
EMU26321
Tilt support knob
To keep the outboard motor in the tilted up po-
sition, push the tilt support knob under the
swivel bracket.
1. Nut
Nut tightening torque:
8 Nm (0.82 kgf-m, 5.9 ft-lb)
1. Trim rod
1. Tilt lock lever
1
ZMU07813
1
ZMU07814
U6DR30E0.book Page 34 Friday, November 30, 2012 4:27 PM
