Operation
45

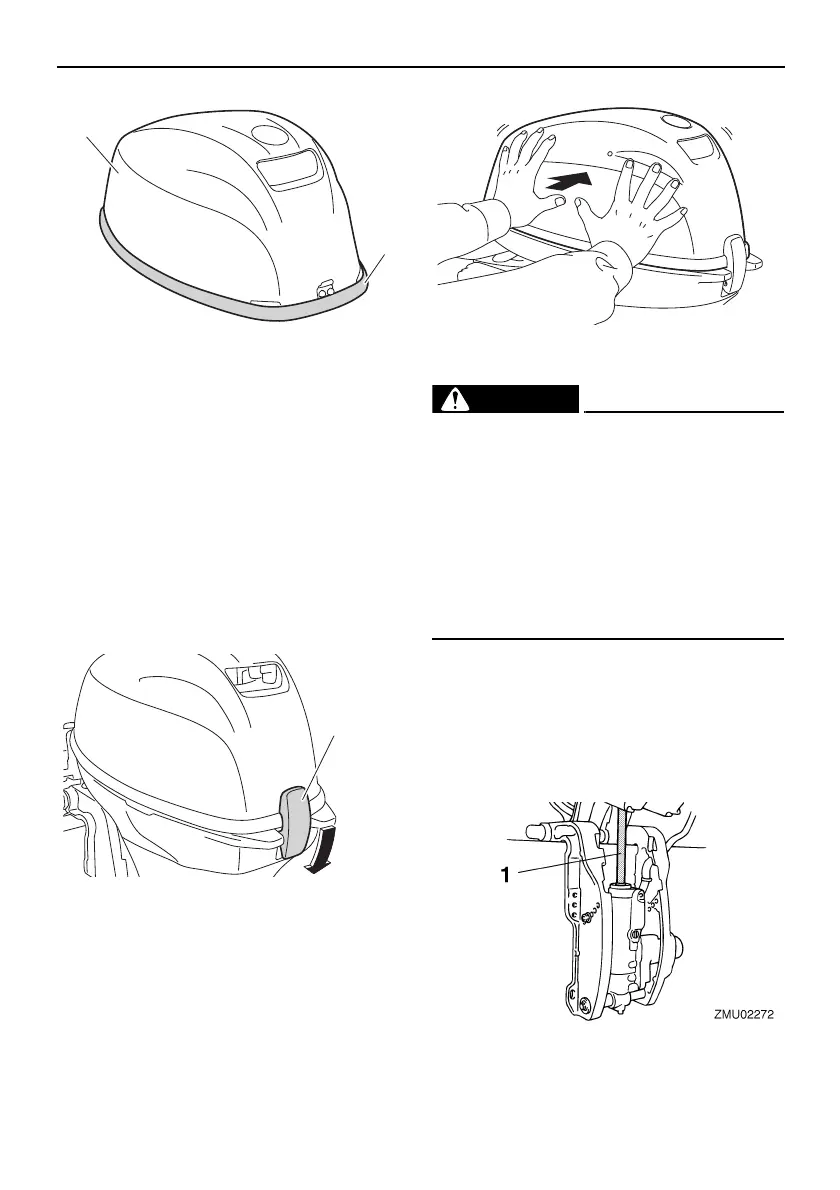

3. Place the top cowling on the bottom cowl-
ing.
4. Check to be sure the rubber seal is seat-
ed correctly between the top cowling and
the bottom cowling.
5. Move the cowling lock lever to lock the
top cowling as shown. NOTICE: If the
top cowling is not installed correctly,
water spray under the top cowling can
damage the engine, or the top cowling
can blow off at high speeds.
[ECM01991]
After installing, check the fitting of the top
cowling by pushing it with both hands. If the
top cowling is loose, have it repaired by your
Yamaha dealer.
EMU34782
Checking power tilt system
EWM01970
● Never get under the lower unit while it is
tilted, even when the tilt support knob is
locked. Severe injury could occur if the
outboard motor accidentally falls.
● Body parts can be crushed between the
motor and the clamp bracket when the
motor is trimmed or tilted.
● Be sure no one is near the outboard mo-
tor before performing this check.
1. Check the power tilt unit for any sign of oil
leaks.
2. Operate each of the power tilt switches to
check that all switches work.
3. Tilt the outboard motor up and check that
the tilt rod is pushed out completely.
1. Top cowling
2. Rubber seal
1. Cowling lock lever
1. Tilt rod
ZMU07829
U6DR30E0.book Page 45 Friday, November 30, 2012 4:27 PM
