6. Push the “ ” (set) button again. The 1-
minute display will begin blinking.
7. Push the “ ” (mode) button until the
desired 1-minute value is displayed.
8. Push the “ ” (set) button again to start
the clock.
The clock operates on battery power. Dis-
connecting the battery will stop the clock.
Reset the clock after connecting the battery.
EMU36081
Voltmeter
The voltmeter displays the charge of the bat-
tery in volts(V).
EMU26723
Fuel level-alert indicator
If the fuel level decreases to one segment, the
fuel level alert segment will blink.
Do not continue to operate the engine at full
throttle if an alert device has activated. Get
back to the port using trolling engine speed.
NOTICE: Running out of fuel can damage
the engine.
[ECM01771]
EMU26733
Low battery voltage-alert indicator
If battery voltage drops, the display will auto-
matically turn on and blink.
Get back to the port soon if an alert device
has activated. For charging the battery, con-
sult your Yamaha dealer.
EMU26742
Fuel management meter
The fuel management meter shows the state
of the fuel consumption while the engine is
running.

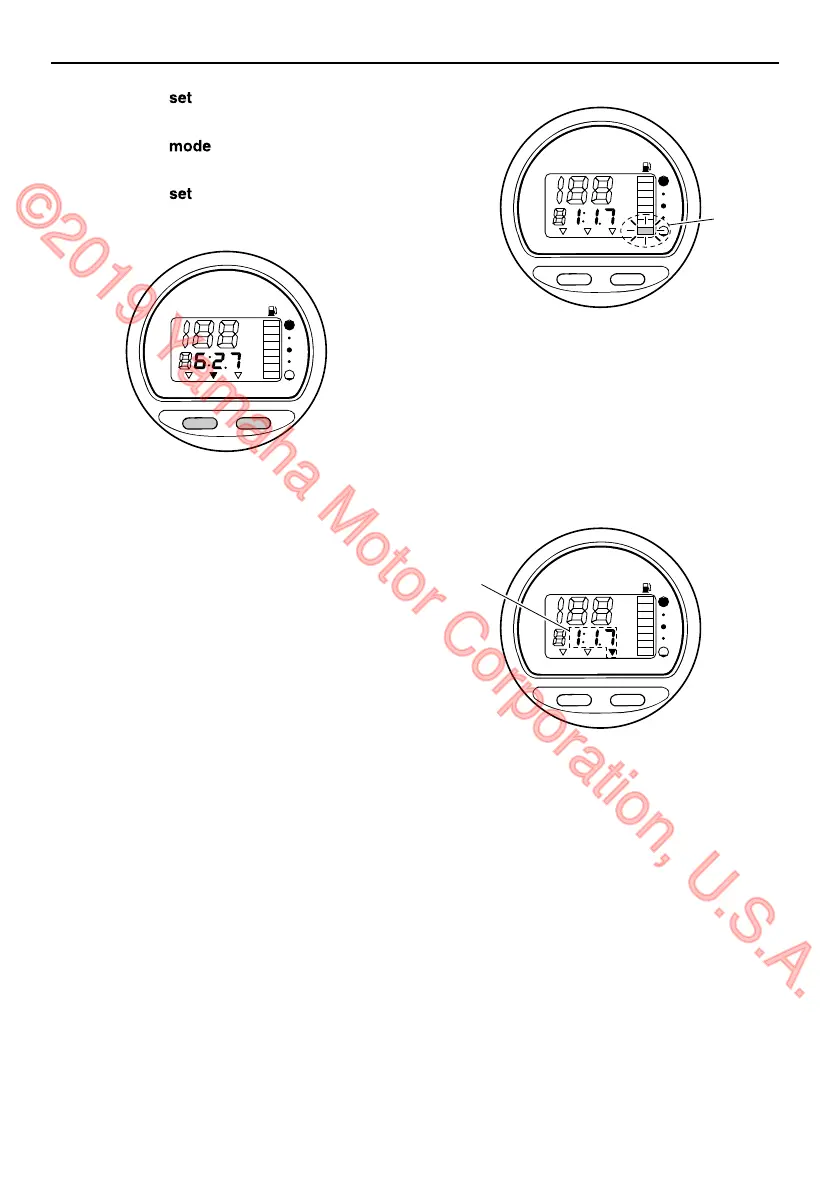

TRIP TIME BATT
km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
ZMU07004
1. Fuel level-alert segment
1. Low battery indicator
TRIP TIME BATT
km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
ZMU07005
1
TRIP TIME BATT
km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
ZMU07006
1
