6Y8 Multifunction speed & fuel
meters
The speed & fuel meter unit shows the boat
speed and has the functions of fuel meter, to-
tal fuel consumption display, fuel economy
display, fuel flow display, and system voltage
display. The chosen display is selected by
using the “ ” (set) and “ ” (mode) but-
tons as described in this section. If the speed
sensor is installed, the unit can also show the
trip display. However, even if the speed sen-
sor is not installed, the trip display can be
shown by connecting an optional sensor to
the unit. In addition, if optional sensors are
connected to the unit, water surface temper-
ature display, depth display, and clock will
also be available. For the optional sensors,
consult your Yamaha dealer.
The speed & fuel meter unit is available in
round or square types. Check your speed &
fuel meter unit type for operation information.
After the main switch is first turned on, all the
displays come on as a test. After a few sec-
onds, the gauge will change to normal oper-
ation.
For more information, see the operation man-
ual originally supplied with the meter.

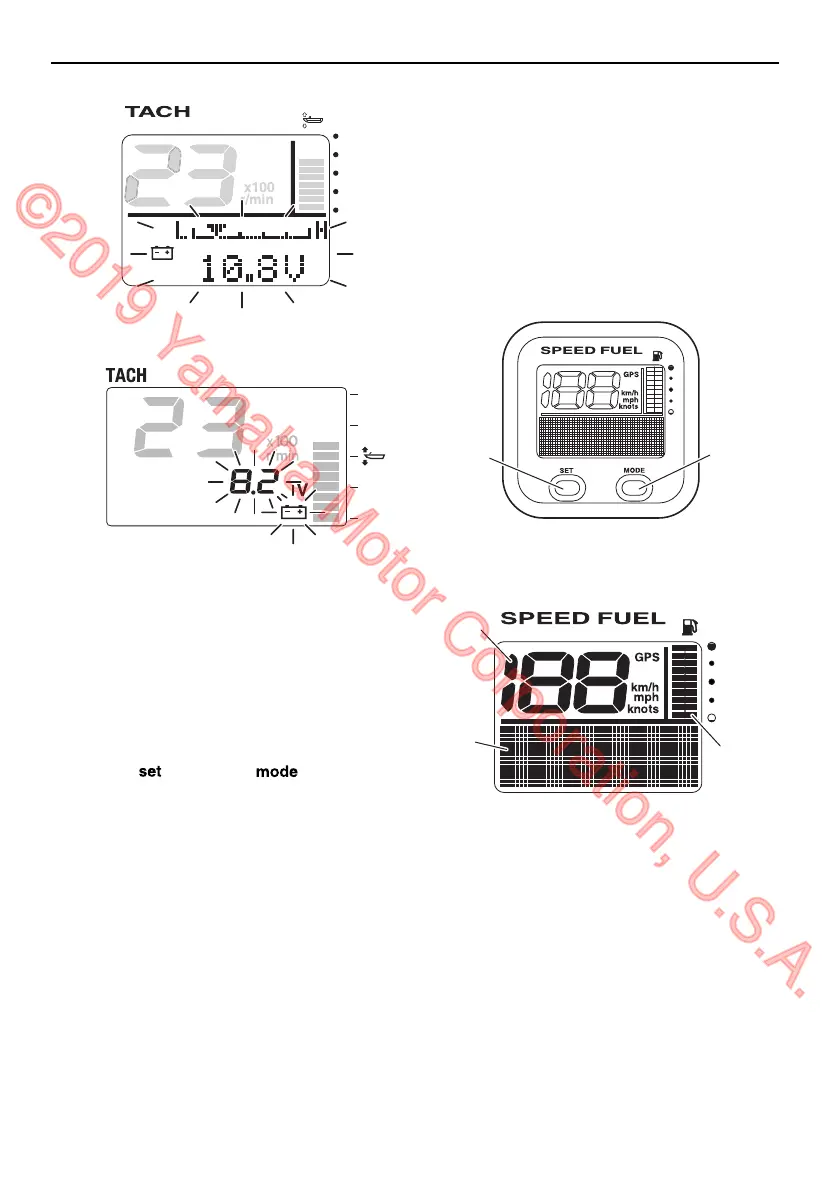

1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
