Instruments and indicators
40
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
EMU26753
Fuel flow meter
The fuel flow meter displays the amount of
fuel flow over a one-hour period, at the cur-
rent rate of engine operation.
The fuel flow meter displays gallons/hour
or liters/hour according to operator prefer-
ence. Select the desired units of measure-
ment by setting the selector switch on the
back of the gauge during installation.
The fuel consumption meter and fuel econ-
omy meter will indicate the same unit of
measurement.
Fuel flow readings are not accurate when the
engine is operating under about 1300 r/min.
As the fuel pump cycles on and off, the dis-
play indicates either no fuel flow or higher
flow than the actual average use.
Dual engine users: the fuel flow meter can
display the fuel flow of either or both engines.
To change the fuel flow display, press the
“ ” (set) button repeatedly until the gauge
displays “ ” (for fuel flow to the starboard en-
gine only), “ ” (for fuel flow to the port engine
only), or “ ” (for total fuel flow both en-
gines).
EMU36091
Fuel consumption meter / Fuel econo-
my meter / Twin engine speed syn-
chronizer
The display shows either the fuel consump-
tion meter, the fuel economy meter, or the
twin engine synchronizer.
To change the display, press the “ ”
(mode) button repeatedly until the indicator
on the face of the gauge points to “ ” (fuel
consumption meter), “ ” (fuel economy
meter), or “ ” (twin engine speed syn-
chronizer).
EMU26762
Fuel consumption meter
This gauge displays the total amount of fuel
consumed since the gauge was last reset.

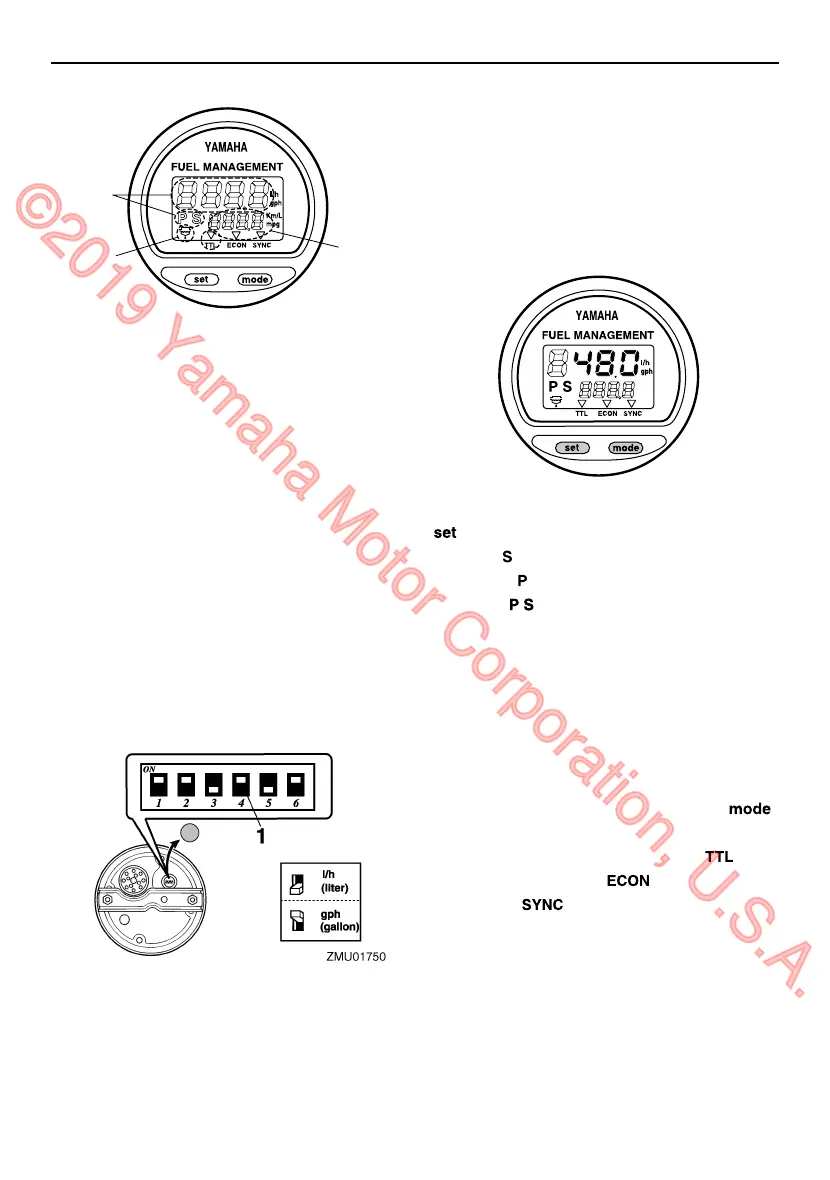

1. Fuel flow meter
2. Fuel consumption meter / Fuel economy
meter / Twin engine speed synchronizer
3. Water separator-alert indicator (operates
only if the sensor has been installed)
