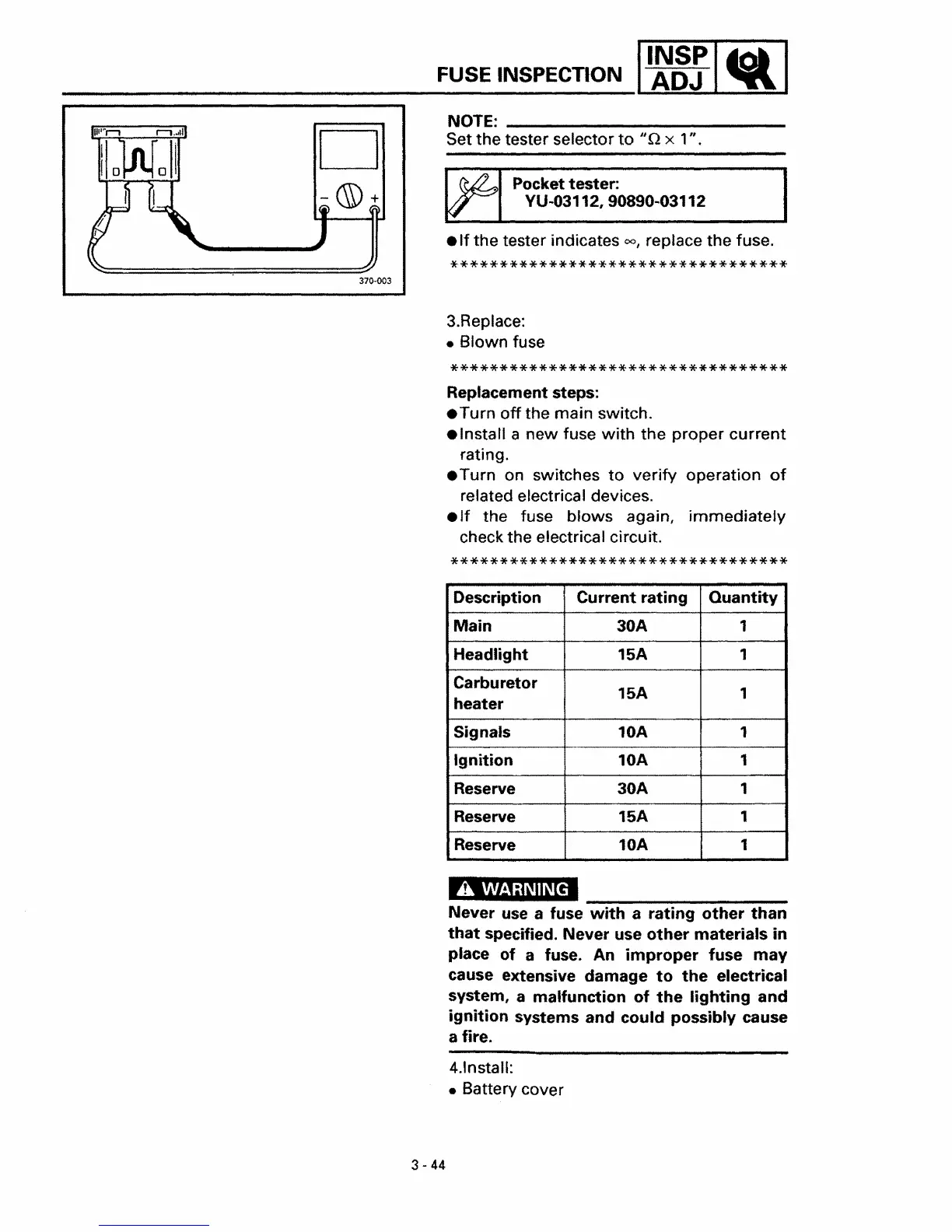

FUSE INSPECTION II~gr Itill
NOTE: _
Set the tester selector to "Q x 1".
. Pocket tester:
VU .. 03112,90890·03112
elf the tester indicates 00, replace the fuse.
**********************************
3.Replace:
• Blown fuse
**********************************
Replacement steps:
e Turn
off the main switch.
elnstall a new fuse with the proper current
rating.
e Turn on switches
to verify operation of
related electrical devices.
elf the fuse blows again, immediately
check the electrical circuit.
**********************************
Description Current rating
Quantity
Main 30A 1
Headlight 15A
1
Carburetor
15A
1
heater
Signals 10A 1
Ignition 10A 1
Reserve 30A
1
Reserve
15A
.
•
Reserve
lOA 1
A WARNING
Never use a fuse with a rating other than
that specified. Never use other materials in
place of a fuse. An improper fuse may
cause extensive damage to the electrical
system, a malfunction
of the lighting and
ignition systems and could possibly cause
a fire.
4.1nstall:
• Battery cover
3 - 44
