Yamaha XVS650 - LUBRICATION POINTS AND LUBRICANT TYPES; CHASSIS

E8203010
CHASSIS

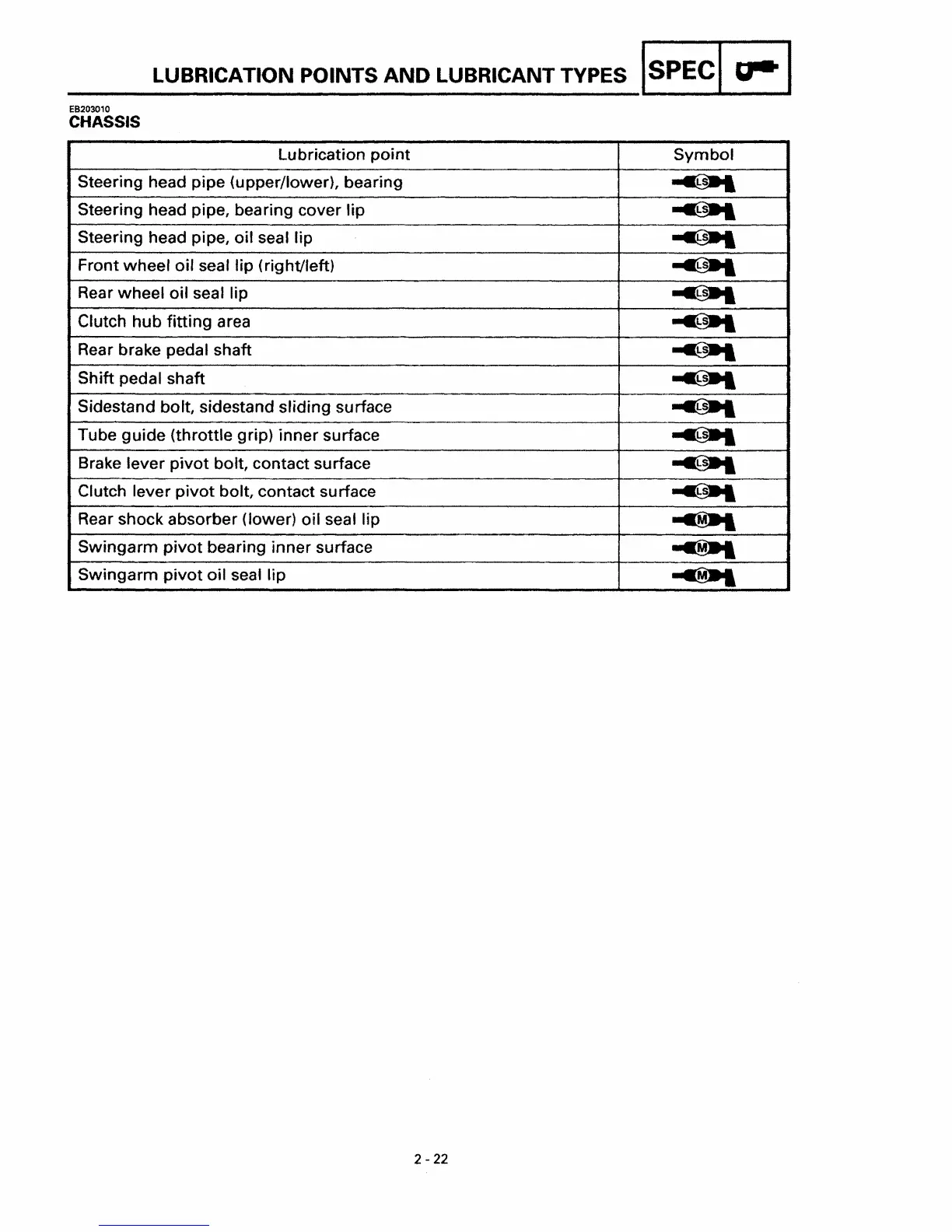

LUBRICATION POINTS AND LUBRICANT TYPES ISPECI U--I
Lubrication point Symbol
Steering head pipe (upper/lower), bearing
~
Steering head pipe, bearing cover lip
~
Steering head pipe, oil seal lip
~
Front wheel oil seal lip (right/left)
~
Rear wheel oil seal lip
~
Clutch hub fitting area
~
Rear brake pedal shaft
~
Shift pedal shaft
~
Sidestand boft, sidestand sliding surface
~
Tube guide (throttle grip) inner surface
~
Brake lever pivot bolt, contact surface
~
Clutch lever pivot bolt, contact surface
~
Rear shock absorber (lower) oil seal lip
~
Swingarm pivot bearing inner surface
~
Swingarm pivot oil seal lip
~
