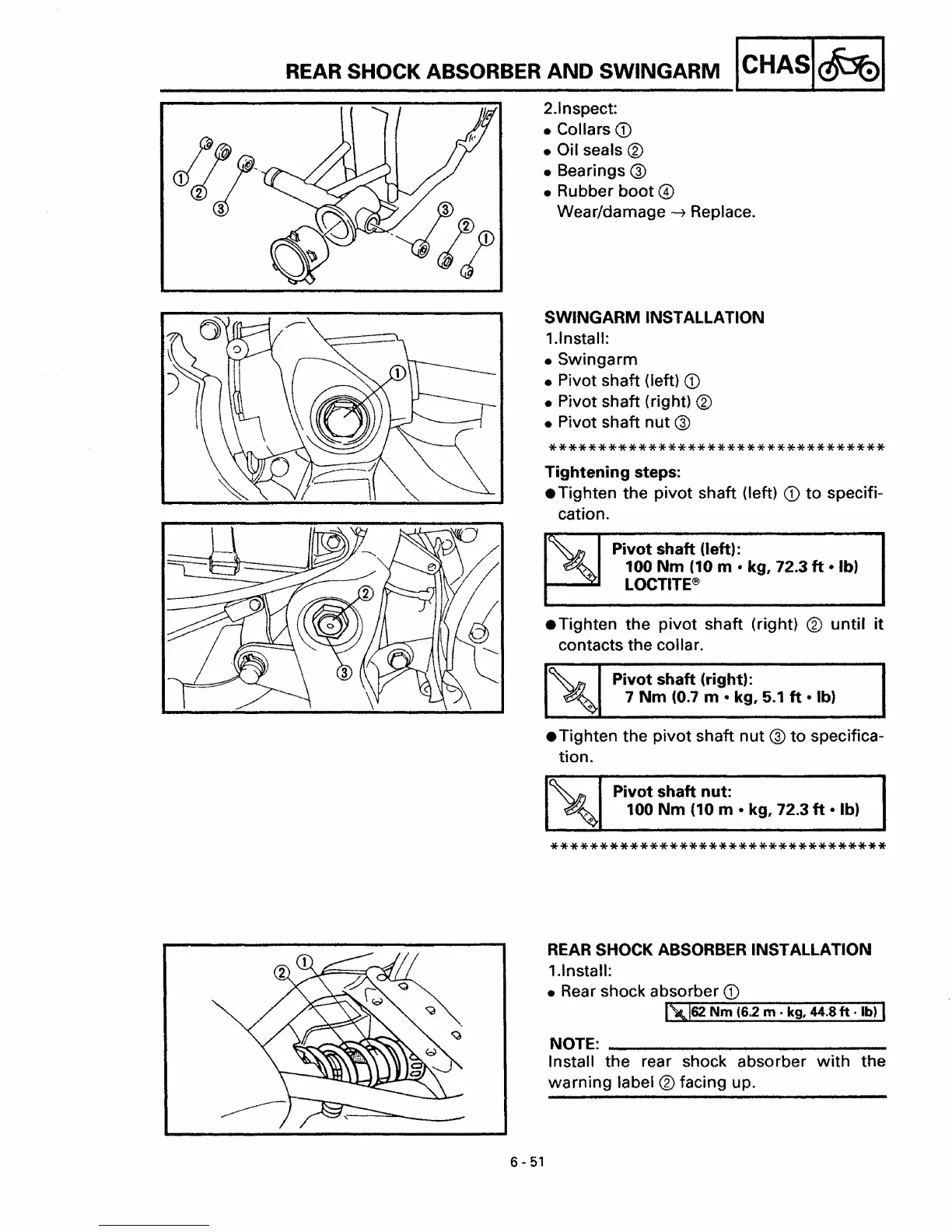

REAR SHOCK ABSORBER AND SWINGARM ICHASI~I
2.1nspect:
• Collars
<D
• Oil seals ®
• Bearings@
• Rubber boot @
Wear/damage ~ Replace.
**********************************
• Tighten the pivot shaft (right) ® until it
contacts the collar.
~ Pivot shaft (right):
~ 7 Nm (0.7 m • kg, 5.1 ft • Ib)
Pivot shaft (left):
100 Nm (10 m • kg, 72.3 ft • Ib)
LOCTITE®
Tightening steps:
• Tighten the pivot shaft (left) <D to specifi-
cation.
SWINGARM INSTALLATION
1.1nstall:
•
Swingarm
• Pivot shaft {left} <D
• Pivot shaft (right) ®
• Pivot shaft nut @
• Tighten the pivot shaft nut @ to specifica-
tion.
~ • Pivot shaft nut:
~ 100 Nm (10 m • kg, 72.3 ft • Ib)
**********************************
REAR SHOCK ABSORBER INSTALLATION
1.1nstall:
• Rear shock absorber
<D
~"""62""'N---m--'(6""'.2-m-.""'k-9,-4""4~.8~ft-. ~Ib~) I
NOTE: _
Install the rear shock absorber with the
warning label ® facing up.
6 - 51
