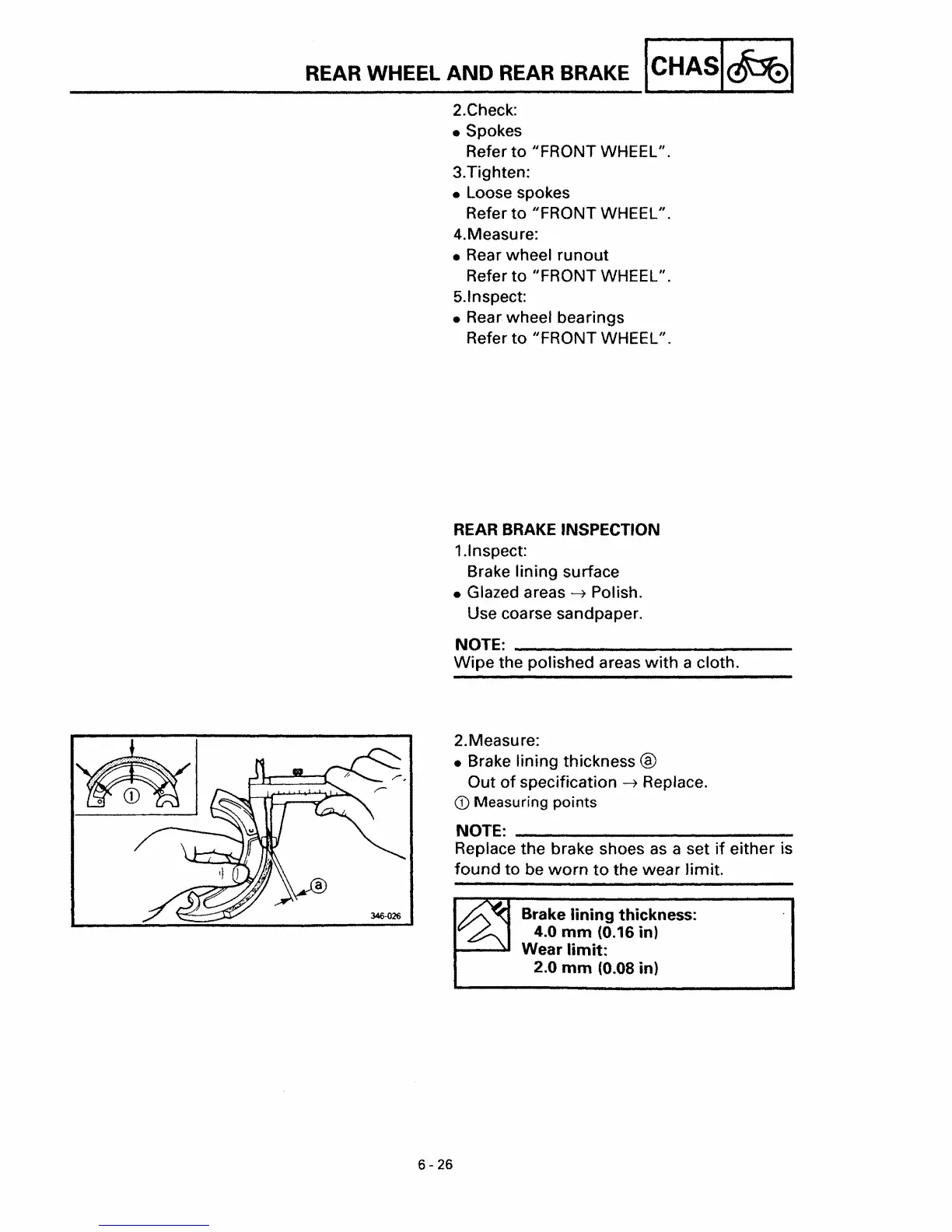

REAR WHEEL AND REAR BRAKE ICHASIAI
2.Check:
• Spokes
Refer
to IIFRONT WHEEL
II
•
3.Tighten:
• Loose spokes
Refer
to IIFRONT WHEEL".
4.Measure:
• Rear wheel runout
Refer
to IIFRONT WHEEL".
5.1nspect:
• Rear wheet bearings
Refer
to IIFRONT WHEEL
II
•
REAR BRAKE INSPECTION
1.tnspect:
Brake lining surface
• Glazed areas
-7 Polish.
Use coarse sandpaper.
NOTE: _
Wipe the polished areas with a cloth.
NOTE: _
Replace the brake shoes as a set if either is
found to be worn to the wear limit.
2.Measure:
• Brake lining thickness
®
Out of specification -7 Replace.
G) Measuring points
Brake lining thickness:
4.0
mm (0.16 in)
Wear
limit:
2.0 mm (0.08 in)
