REAR BRAKE
ADJUSTMENT
II~gs
1-.1
Brake pedal height:
85
mm
(3.3 in)
(above
the
top
of
the
footrest)
Free
play
(brake pedal):
20",
30
mm
(0.79 - 1.18 in)
'''''
locknut:
~~
7
Nm
(0.7
m·
kg,
5.1
ft·
Ib)
**********************************
**********************************
**********************************
Turning
in:
brake pedal free
play
is
decreased.
Turning
out:
brake pedal ·free
play
is
increased.
Adjustment
steps:
• Turn the adjuster
CD
in
or
out
until
the
specified free play is obtained.
Adjustment
steps:
• Loosen the locknut
CD.
• Turn the adjuster @ in
or
out
until
the
specified pedal
height
is obtained.
• Tighten the locknut.
4.Adjust:
• Brake pedal free play
2.Adjust:
• Brake pedal
height
EB304012

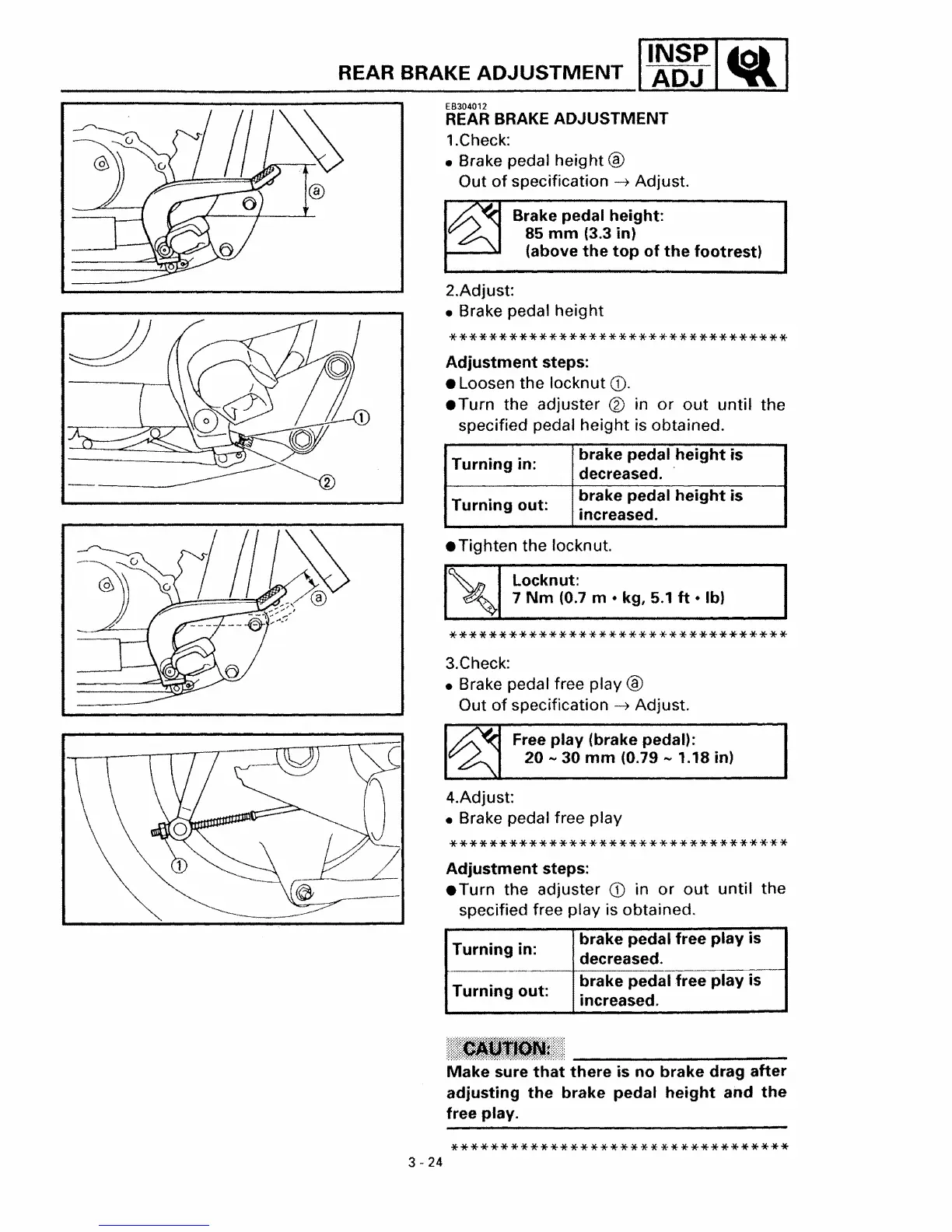

REAR BRAKE ADJUSTMENT
1.Check:
• Brake pedal
height
®
Out
of
specification
~
Adjust.
Turning
in:
brake pedal
height
is
decreased.
Turning
out:
brake pedal
height
is
increased.
3.Check:
• Brake pedal free play
®
Out
of
specification
~
Adjust.
®
Make
sure
that
there
is
no
brake drag
after
adjusting
the
brake pedal
height
and
the
free play.
**********************************
3 - 24
