Yamaha XVS650 - Middle Drive Pinion Gear

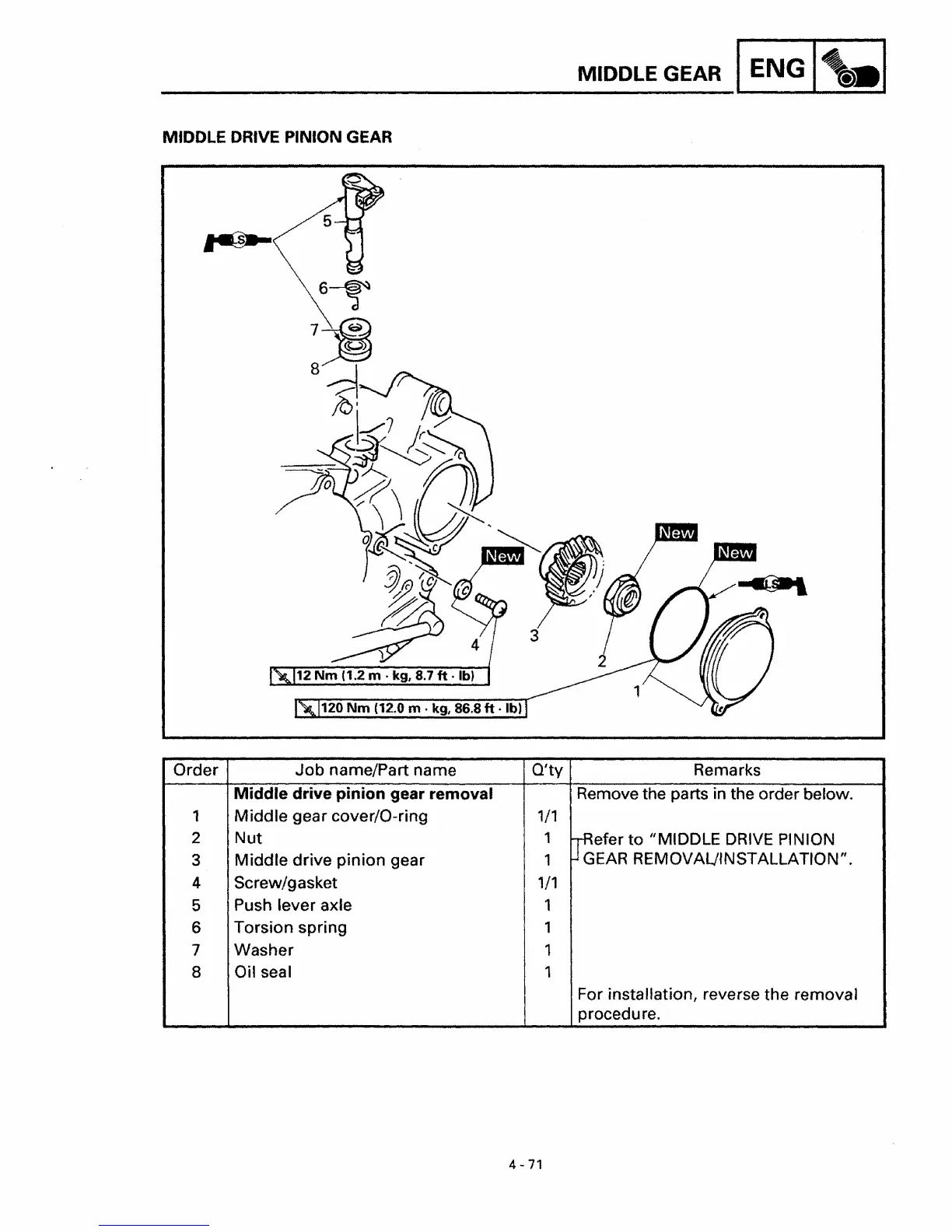

MIDDLE DRIVE PINION GEAR
120 Nm (12.0 m . kg, 86.8 it . Ib)
MIDDLE GEAR ENG
Order Job name/Part name
Q'ty
Remarks
Middle drive pinion gear removal
Remove the parts in the order below.
1 Middle gear cover/O-ring 1/1
2
Nut
1
~efer to "MIDDLE DRIVE PINION
3
Middle drive pinion gear 1
GEAR REMOVALJINSTALLATION".
4 Screw/gasket
1/1
5
Push lever axle 1
6
Torsion spring
1
7 Washer
1
8
Oil seal 1
For installation, reverse the removal
procedure.
4 -71
