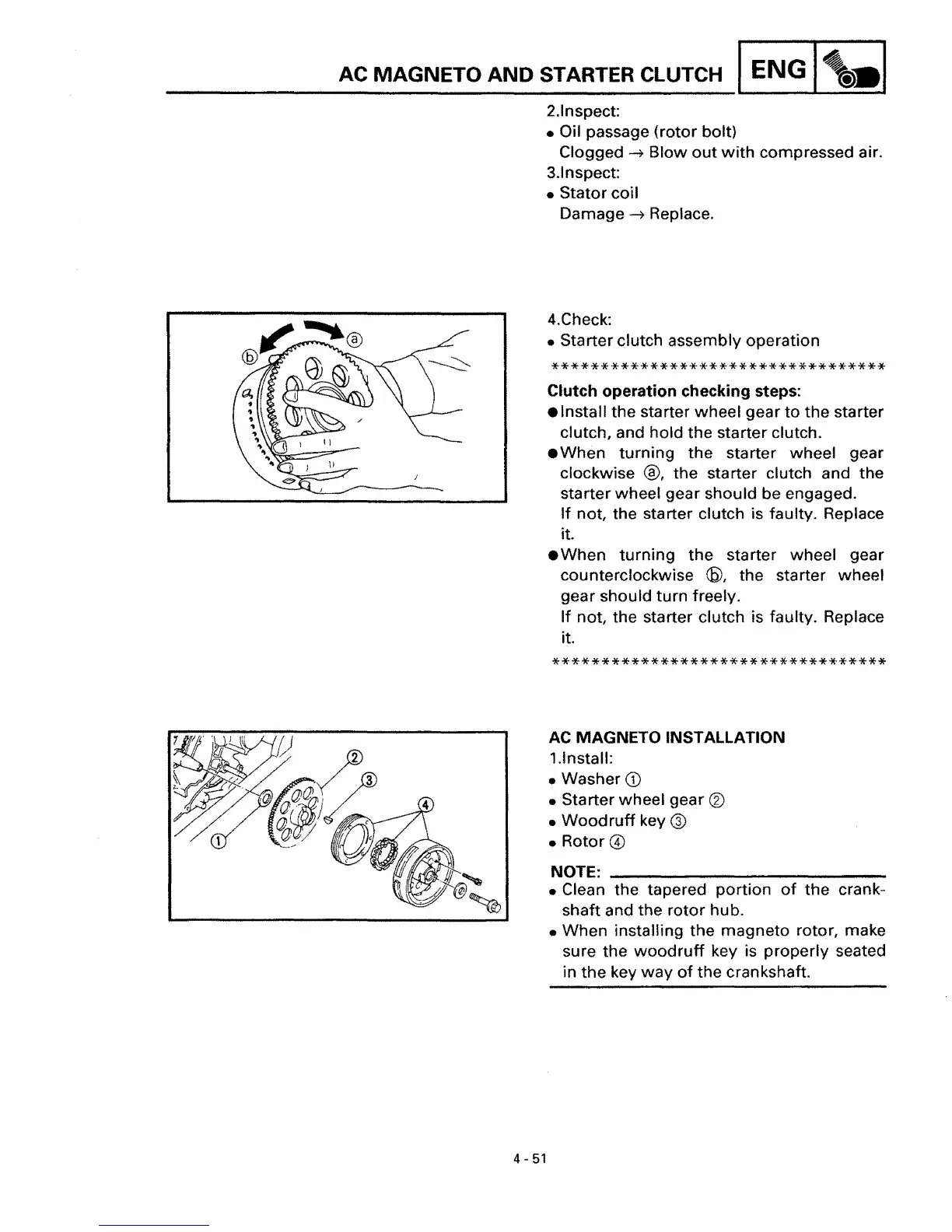

AC
MAGNETO
AND
STARTER CLUTCH
ENG
2.1nspect:
• Oil passage (rotor bolt)
Clogged
~
Blowout
with
compressed air.
3.1nspect:
• Stator coil
Damage
-7
Replace.
4.Check:
• Starter clutch assembly operation
**********************************
Clutch operation checking steps:
• Install the starter wheel gear
to
the starter
clutch, and hold the starter clutch.
• When turning the starter wheel gear
clockwise
@, the starter clutch and the
starter wheel gear should be engaged.
If not, the starter clutch is faulty. Replace
it
.
• When turning the starter wheel gear
counterclockwise
(6),
the starter wheel
gear should turn freely.
If
not, the starter clutch is faulty. Replace
it.
**********************************
AC MAGNETO INSTALLATION
1.1nstall:
• Washer
CD
• Starter wheel gear ®
•
Wood
ruff key @
•
Rotor@
NOTE: _
• Clean the tapered portion
of
the crank-
shaft and the rotor hub.
• When installing
the
magneto rotor, make
sure the
woodruff
key is properly seated
in
the
key
way
of
the crankshaft.
4
51
