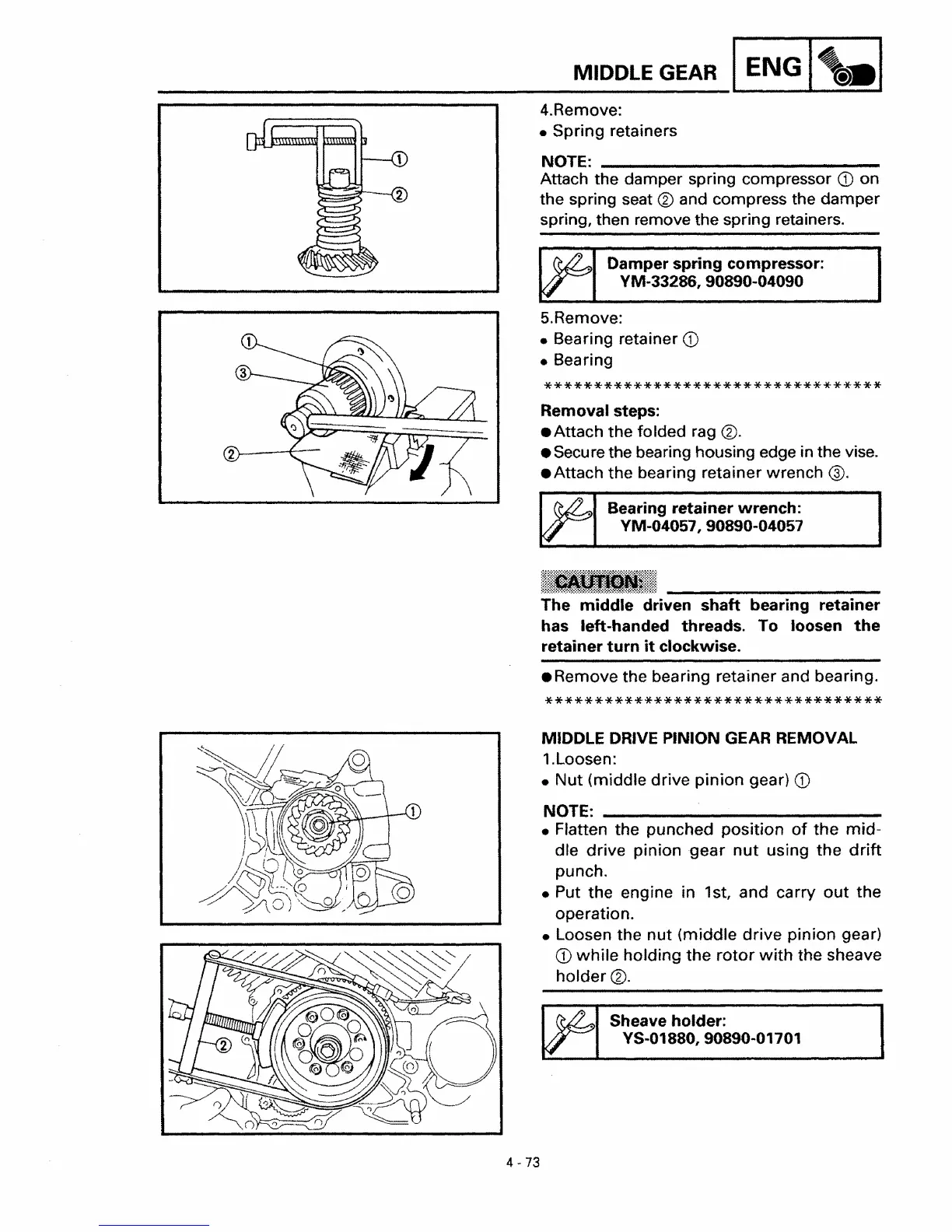

MIDDLE GEAR ENG
'. Damper spring compressor:
YM-33286, 90890-04090
NOTE:
Attach the damper spring compressor CD on
the spring seat
® and compress the damper
spring, then remove the spring retainers.
4.Remove:
• Spring retainers
. Bearing retainer
wrench:
YM-04057I 90890-04057
**********************************
Removal steps:
• Attach the foIded rag
® .
• Secure the bearing housing edge in the vise.
• Attach the bearing retainer wrench
@.
5.Remove:
• Bearing retainer
CD
• Bearing
The
middle driven shaft bearing retainer
has left-handed threads. To loosen
the
retainer turn it clockwise.
• Remove the bearing retainer and bearing.
**********************************
MIDDLE DRIVE PINION GEAR REMOVAL
1.Loosen:
•
Nut (middle drive pinion gear) CD
NOTE: _
• Flatten the punched position of the mid-
dle drive pinion gear nut using the drift
punch.
• Put the engine in 1st, and carry
out the
operation.
• Loosen the nut (middle drive pinion gear)
CD while holding the rotor with the sheave
holder®.
Sheave holder:
YS .. 01880,90890-01701
4 - 73
