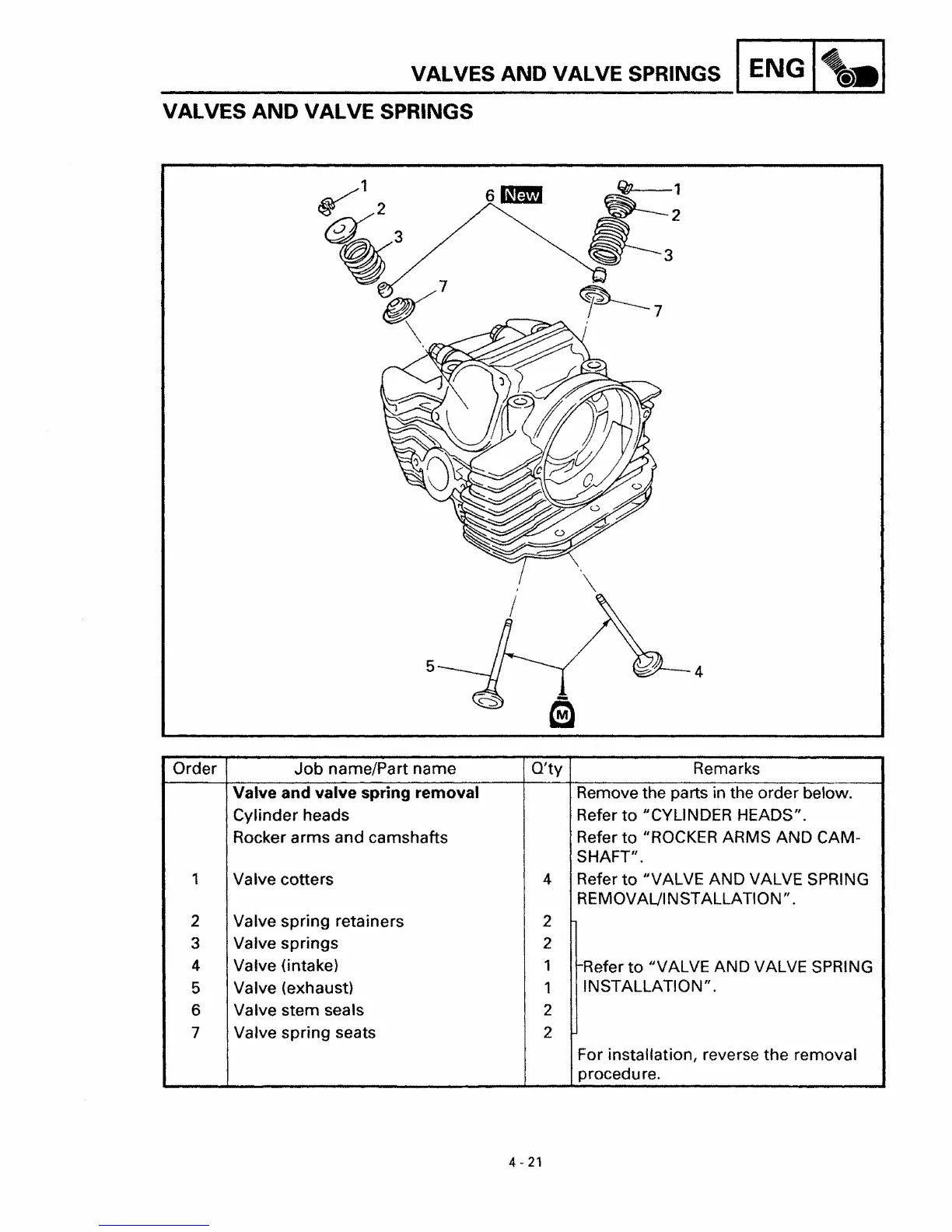

VALVES AND VALVE SPRINGS
ENG.
VALVES
AND
VALVE SPRINGS
5
~7
Order
Job
name/Part name
O/ty
Remarks
Valve and valve spring removal
Remove the parts in the order below.
Cylinder heads
Refer
to
"CYLINDER HEADS".
Rocker arms and camshafts
Refer to "ROCKER ARMS AND CAM-
SHAFT".
1
Va
Ive cotters
4
Refer
to
IIVALVE AND VALVE SPRING
REMOVAlJlNSTALLATION".
2 Valve spring retainers 2
3
Valve springs
2
4 Valve (intake) 1
i-Refer
to
IIVALVE AND VALVE SPRING
5
Valve (exhaust) 1
INSTALLATION".
6 Valve stem seals 2
7 Valve spring seats 2
For installation, reverse the removal
procedure.
4 -
21
