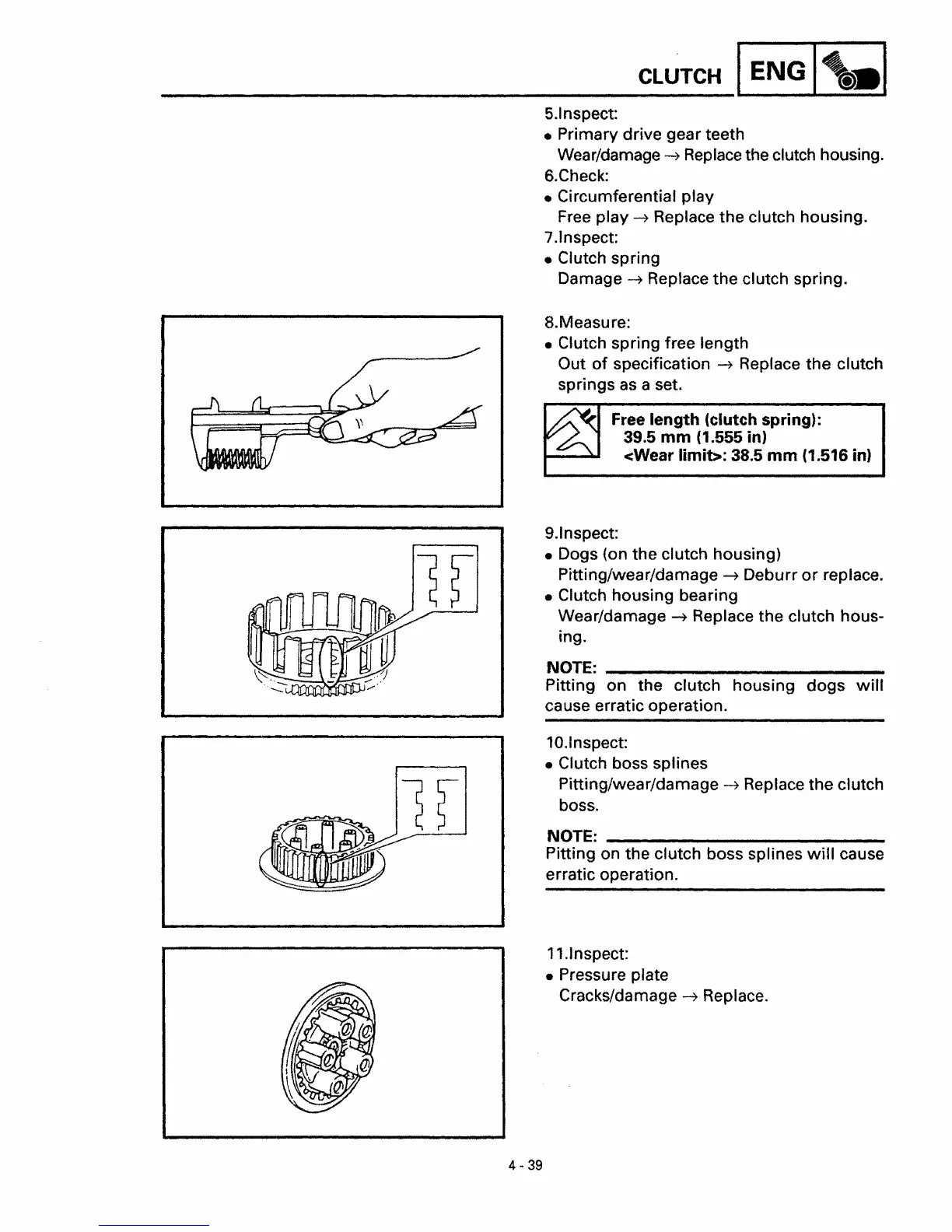

CLUTCH ENG
5.lnspect:
• Primary drive gear teeth
Wear/damage
~ Replace the clutch housing.
6.Check:
• Circumferential play
Free play ~ Replace the clutch housing.
7.1nspect:
• Clutch spring
Damage
~ Replace the clutch spring.
a.Measure:
• Clutch spring free length
Out
of specification ~ Replace the clutch
springs
as a set.
Free length (clutch spring):
39.5 mm (1.555 in)
<Wear limit>:
38.5 mm (1.516 in)
4 - 39
9.lnspect:
• Dogs (on the clutch housing)
Pitting/wear/damage
~ Deburr or replace.
• Clutch housing bearing
Wear/damage
~ Replace the clutch hous-
ing.
NOTE: _
Pitting on the clutch housing dogs will
cause erratic operation.
10.lnspect:
• Clutch boss splines
Pitting/wear/damage
~ Replace the clutch
boss.
NOTE: _
Pitting on the clutch boss splines will cause
erratic operation.
11.1nspect:
• Pressure plate
Cracks/damage
~ Replace.

Yamaha XVS650 Specifications

General

Compression Ratio	9.0:1
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	130/90-16
Rear Tire	170/80-15
Front Brakes	Single disc
