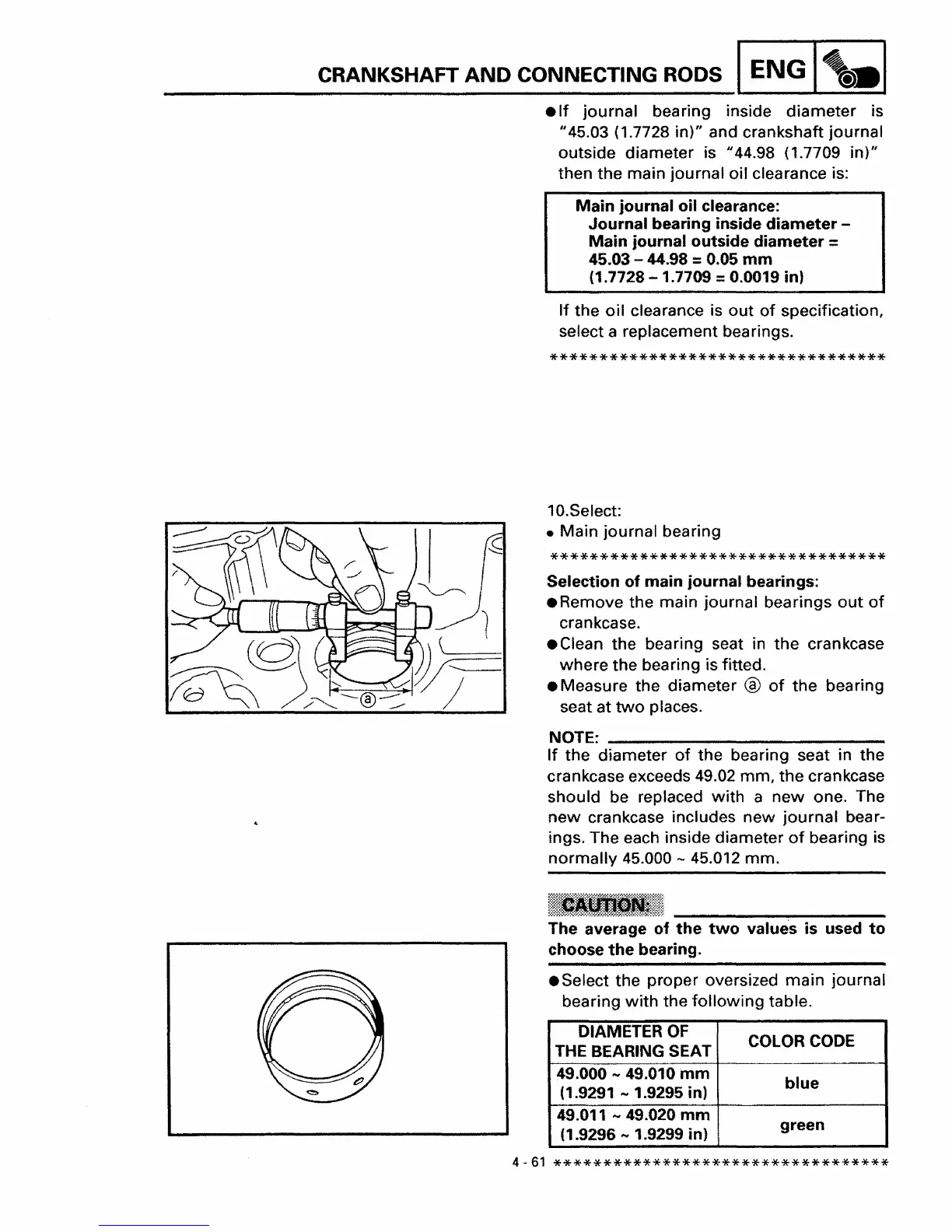

CRANKSHAFT
AND
CONNECTING RODS
ENG
.If
journal bearing inside
diameter
is
"45.03 (1.7728
in)"
and crankshaft journal
outside diameter is "44.98 (1.7709
in)"
then the main journal oil clearance is:
Main
journal
oil
clearance:
Journal bearing inside
diameter
-
Main
journal outside
diameter
=
45.03 - 44.98 =0.05
mm
(1.7728
-1.7709
=0.0019 in)
If
the
oil
clearance is
out
of
specification,
select a replacement bearings.
**********************************
10.Select:
• Main journal bearing
**********************************
Selection
of
main journal bearings:
• Remove the main journal bearings
out
of
crankcase.
• Clean the bearing seat in
the
crankcase
where
the bearing is fitted.
• Measure the diameter
®
of
the
bearing
seat at
two
places.
NOTE: _
If
the diameter
of
the bearing seat in the
crankcase exceeds 49.02
mm
,
the crankcase
should be replaced
with
a
new
one. The
new
crankcase includes new journal bear-
ings. The each inside diameter
of
bearing is
normally
45.000 - 45.012
mm.
The average
of
the
two
values
is
used
to
choose
the
bearing.
• Select the proper oversized
main
journal
bearing
with
the
following
table.
DIAMETER
OF
COLOR
CODE
THE
BEARING SEAT
49.000
...
49.010
mm
blue
(1.9291 - 1.9295 in)
49.011
...
49.020
mm
(1.9296
....
1.9299 in)
green
4·61
**********************************
