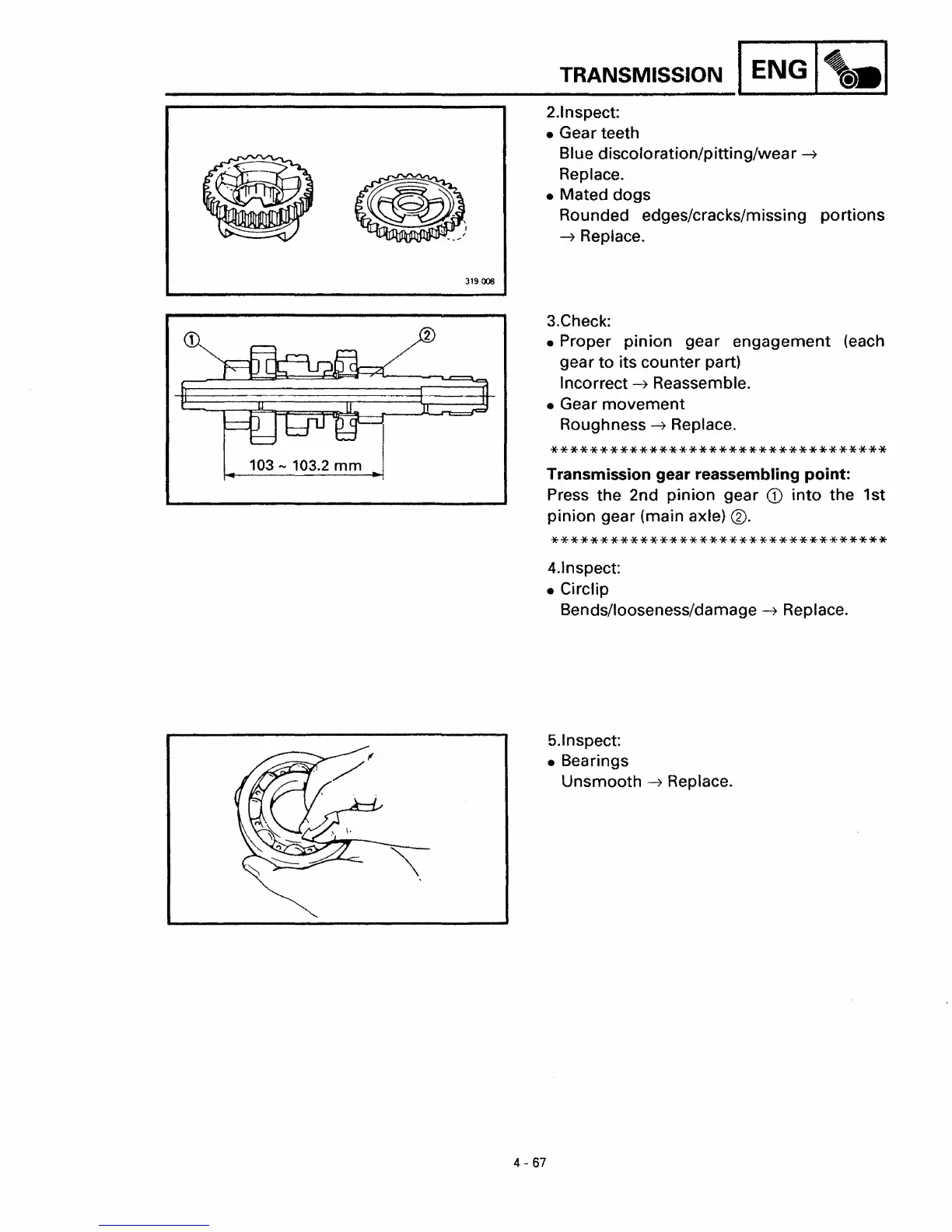

TRANSMISSION
ENG
319006
2.1nspect:
• Gear teeth
Blue discoloration/pitting/wear
-7
Replace.
• Mated dogs
Rounded edges/cracks/missing portions
-7 Replace.
2
103 - 103.2 mm
3.Check:
• Proper
pinion gear engagement (each
gear
to its counter part)
Incorrect
-7 Reassemble.
•
Gea r movement
Roughness -7 Replace.
**********************************
Transmission gear reassembling point:
Press the 2nd pinion gear CD into the 1st
pinion gear (main axle)
®.
**********************************
4.1nspect:
• Circlip
Bends/looseness/damage
-7 Replace.
5.1nspect:
• Bearings
Unsmooth
-7 Replace.
4 - 67
