5-4
CARBURETOR ICARSI Ii' I
EB600030

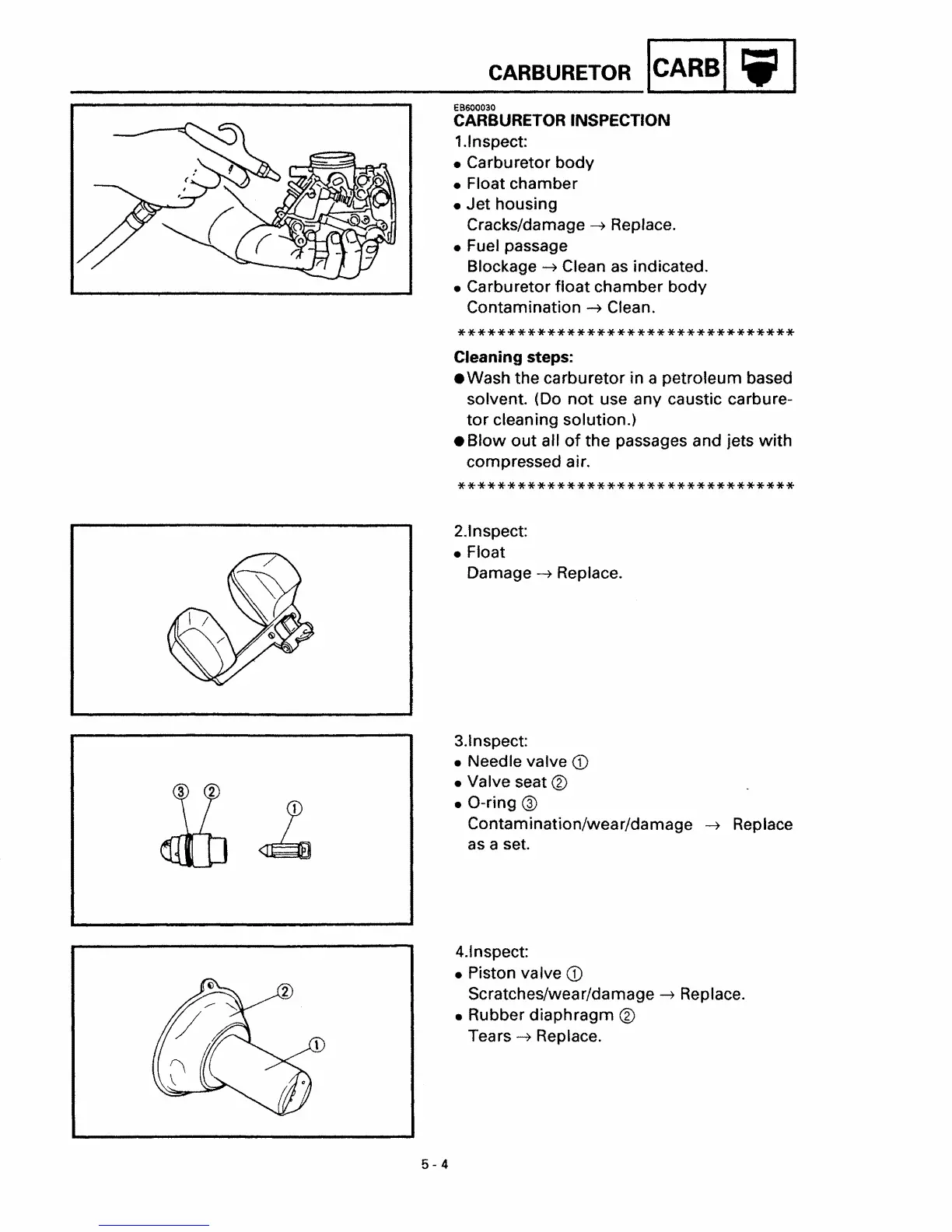

CARBURETOR INSPECTION
1.lnspect:
• Carburetor body
• Float chamber
• Jet housing
Cracks/damage
-t Replace.
• Fuel passage
Blockage
-t Clean as indicated.
• Carburetor float chamber body
Contamination
-t Clean.
**********************************
Cleaning steps:
• Wash the carburetor in a petroleum based
solvent. (Do
not use any caustic carbure-
tor cleaning solution.)
•
Blowout all of the passages and jets with
compressed air.
**********************************
2.1nspect:
• Float
Damage
-t Replace.
3.1nspect:
• Needle valve
CD
• Valve seat <V
• O-ring ®
Contamination/wear/damage -t Replace
as a set.
4.tnspect:
• Piston valve
<D
Scratches/wear/damage -t Replace.
• Rubber diaphragm
<V
Tears -t Replace.
