Yamaha XVS650 User Manual

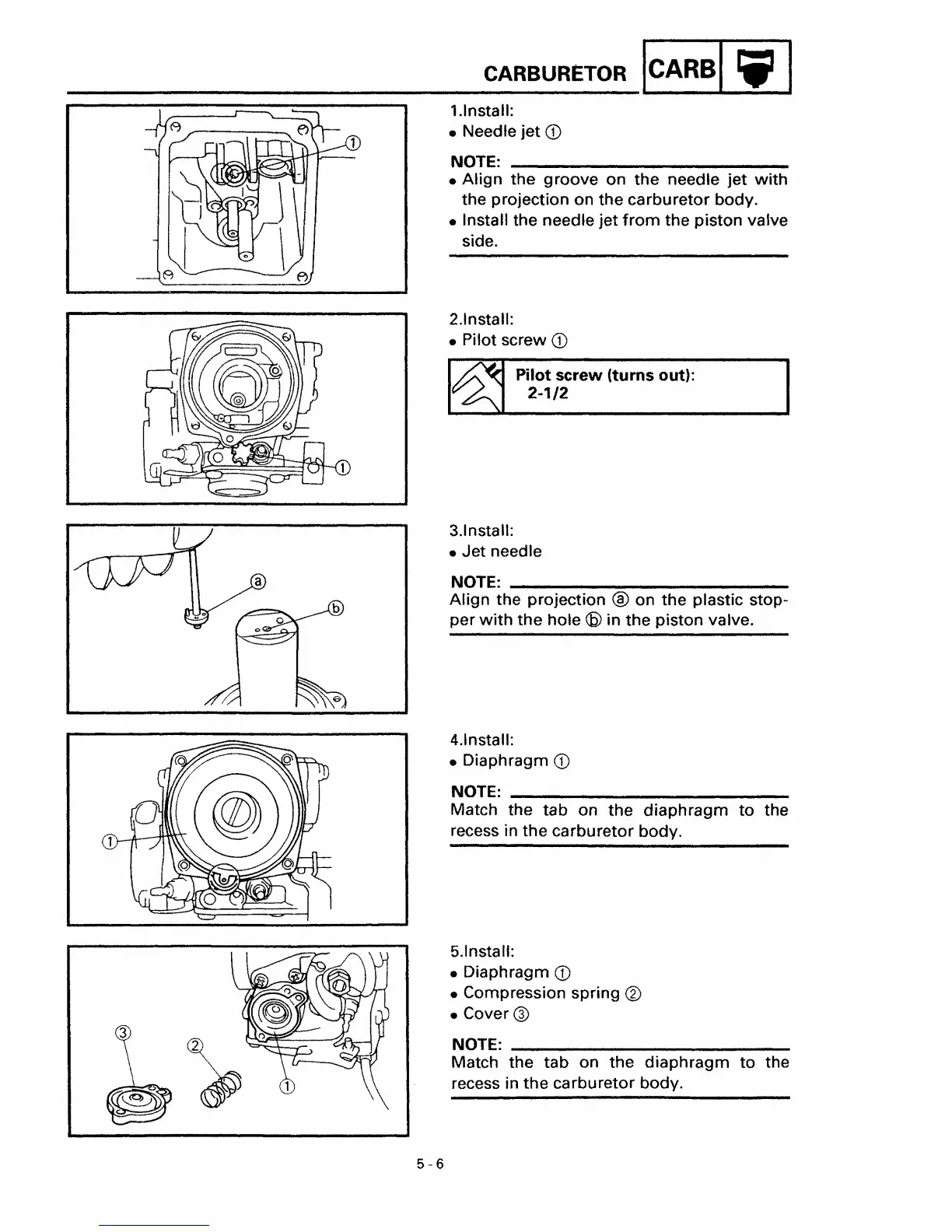

CARBURETOR ICARBIIiII
1.1nstall:
• Needle
jet CD
NOTE:
• Align the groove on the needle jet with
the projection on the carburetor body.
• Install the needle
jet from the piston valve
side.
2.1nstall:
• Pilot screw
CD
Pilot screw (turns out):
2-1/2
3.1 nstall:
•
Jet needle
NOTE: _
Align the projection ® on the plastic stop-
per
with the hole <6> in the piston valve.
4.1nstall:
• Diaphragm
CD
NOTE: _
Match the tab on the diaphragm to the
recess in the carburetor body.
3
5 6
5.1nstall:
• Diaphragm
CD
• Compression spring ®
• Cover ®
NOTE: _
Match the tab on the diaphragm to the
recess in the carburetor body.

Yamaha XVS650 Specifications

General

Compression Ratio	9.0:1
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	130/90-16
Rear Tire	170/80-15
Front Brakes	Single disc
