4

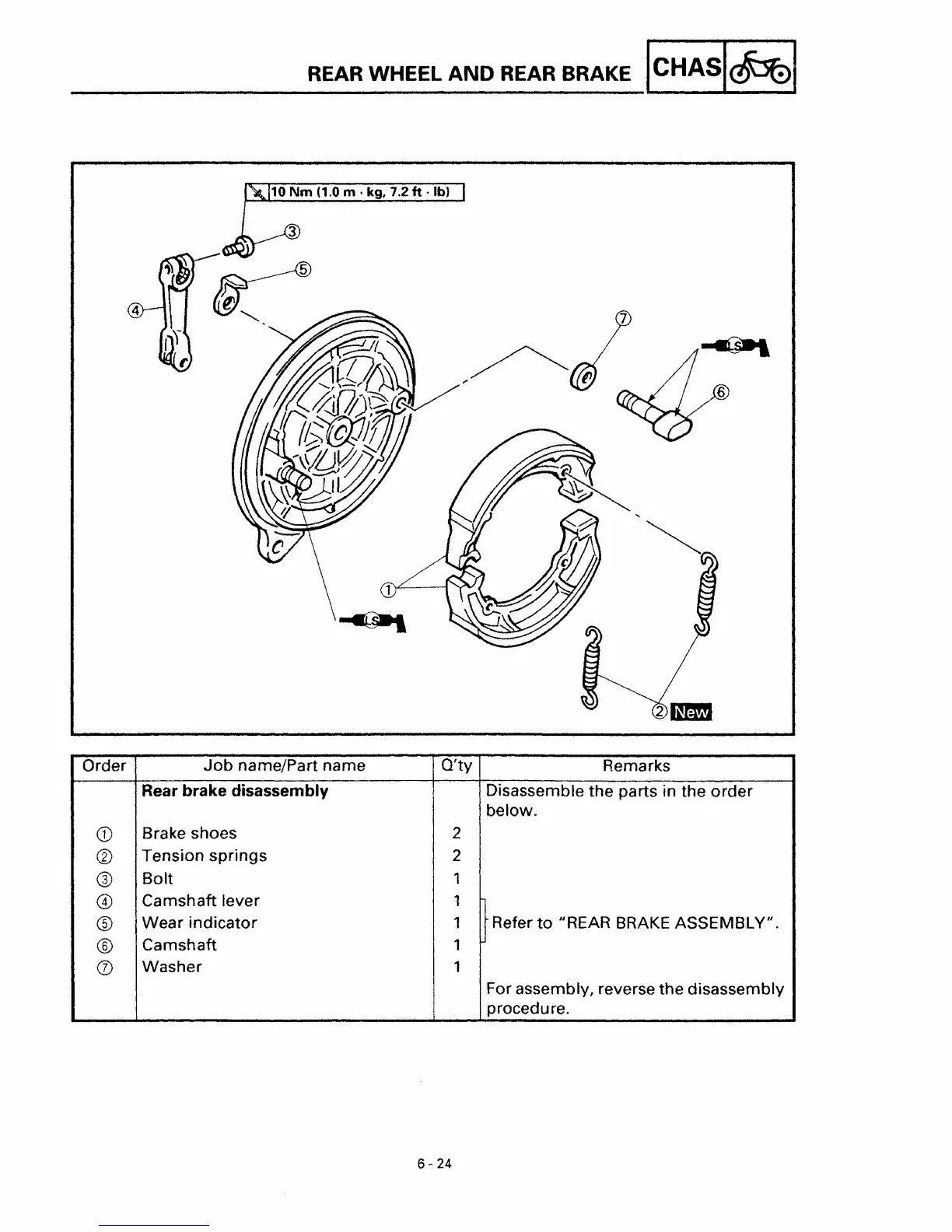

REAR WHEEL AND REAR BRAKE ICHASI~I
10 Nm (1.0 m . kg, 7.2 it ·Ib)
Order
Job name/Part name
Q'ty
Remarks
Rear brake disassembly
Disassemble the parts in the order
below.
CD
Brake shoes 2
®
Tension springs
2
@
Bolt
1
@
Camshaft lever 1
} Refer to "REAR BRAKE ASSEMBLY".
®
Wear indicator
1
®
Camshaft
1
(j) Washer 1
For assembly, reverse the disassembly
procedure.
6 - 24
