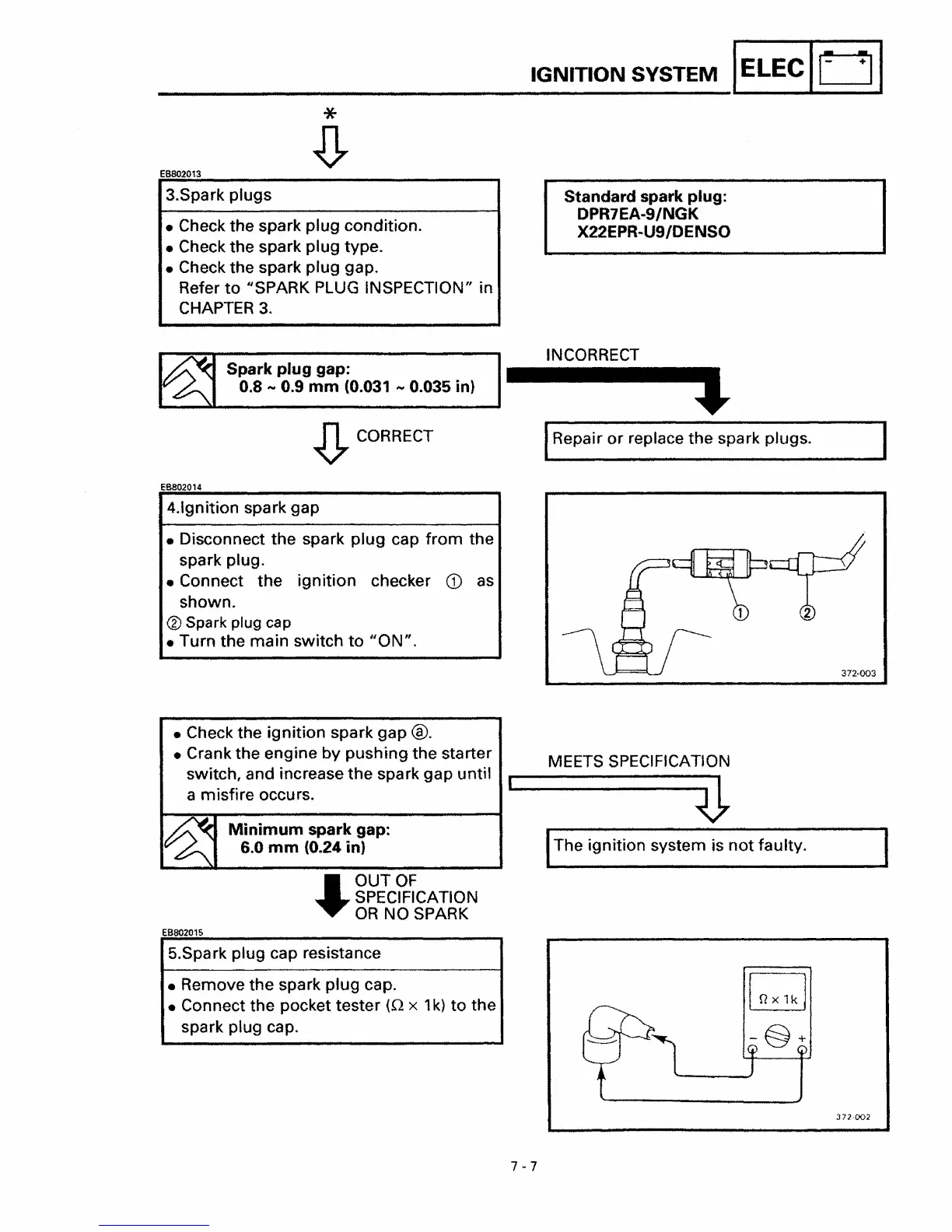

EB802013
3.Spark plugs
• Check the spark plug condition.
• Check the spark plug type.
• Check the spark plug gap.
Refer
to
"SPARK PLUG INSPECTION" in
CHAPTER
3.
Spark
plug
gap:
0.8
..,
0.9
mm
(0.031
..,
0.035 in)
..(J,.
CORRECT
EB802014
4.1gnition spark gap
• Disconnect the spark
plug
cap
from
the
spark plug.
• Connect the
ignition
checker
CD
as
shown.
® Spark plug cap
• Turn the main switch
to
liON"
.
• Check the ignition spark gap ®.
• Crank the engine
by
pushing the starter
switch, and increase the spark gap until
a misfi
re
occu
rs.
Minimum
spark gap:
6.0
mm
(0.24 in)
~
OUTOF
SPECIFICATION
OR
NO SPARK
EB802015
5.Spark plug cap resistance
• Remove the spark
plug
cap.
• Connect the pocket tester
(0
x 1
k)
to
the
spark plug cap.
IGNITION SYSTEM IELECI0 I
Standard spark plug:
DPR7EA
w
9/NGK
X22EPRwU9/DENSO
INCORRECT
IRepair
or
replace the spark plugs.
MEETS SPECIFICATION
:0,
IThe ignition system is
not
faulty.
7-7
To Next Page
