Yamaha XVS650 User Manual

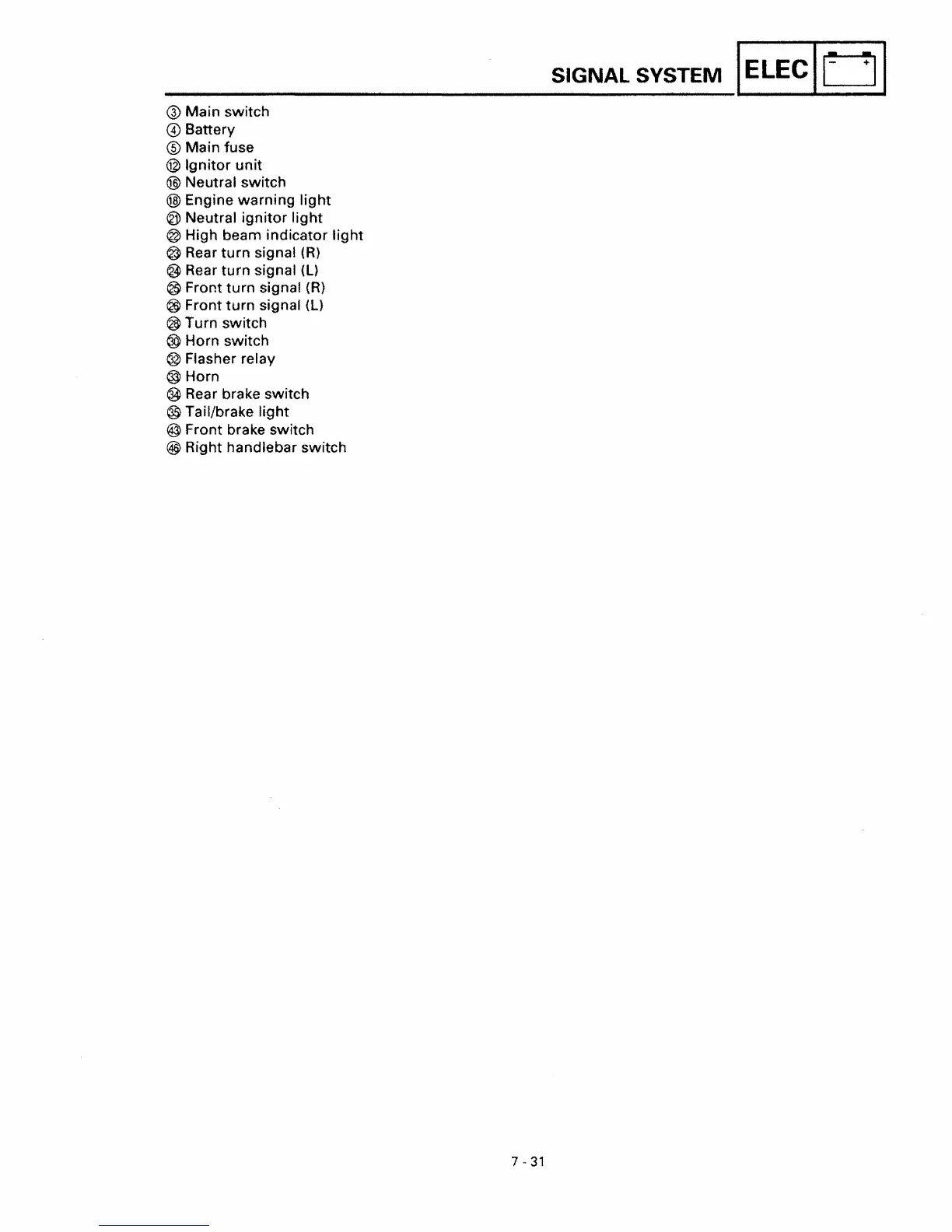

® Main switch
@ Battery
® Main fuse
@ Ignitor unit
@ Neutral switch
@ Engine warning light
® Neutral ignitor light
@ High beam indicator light
@ Rear turn signal (R)
@ Rear turn signal (l)
~ Front turn signal (R)
@ Front turn signal (L)
~ Turn switch
@l Horn switch
@ Flasher relay
@Horn
@ Rear brake switch
@ Tail/brake light
@ Front brake switch
@ Right handlebar switch
7 - 31
SIGNAL SYSTEM I ELEC I0 I

Yamaha XVS650 Specifications

General

Compression Ratio	9.0:1
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	130/90-16
Rear Tire	170/80-15
Front Brakes	Single disc
