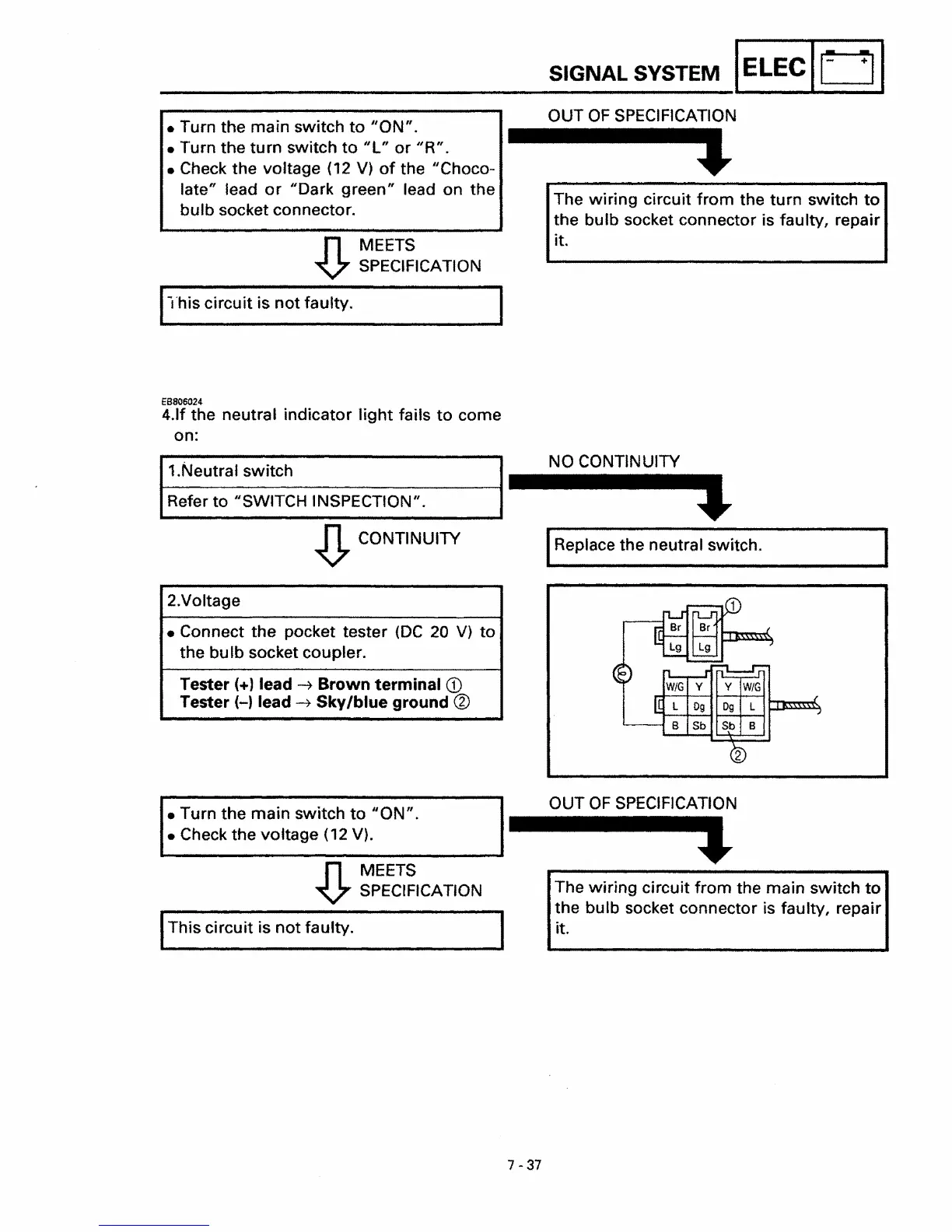

• Turn the main switch to liON".
• Turn the turn switch to "l" or "R".
• Check the voltage (12 V) of the "Choco-
late" lead
or "Dark green" lead on the
bulb socket connector.
n MEETS
V SPECIFICATION
I i'his circuit is not faulty.
EB806024
4.1f the neutral indicator light fails to come
on:
1.Neutral switch
Refer
to "SWITCH INSPECTION".
~ CONTINUITY
2.Voltage
• Connect the pocket tester
(DC 20 V) to
the bu Ib socket coupler.
Tester (+) lead ~ Brown terminal CD
Tester (-) lead ~ Sky Iblue ground ®
• Turn the main switch to liON".
• Check the voltage (12 V).
n MEETS
V SPECIFICATION
IThis circuit is not faulty,
SIGNAL SYSTEM I ELEC I [:=.:11
OUT OF SPECIFICATION
~
The wiring circuit from the turn switch to
the bulb socket connector is faulty, repair
it.
NO CONTINUITY
~
IReplace the neutral switch.
OUT
OF SPECIFICATION
l
The wiring circuit from the main switch to
the bulb socket connector is faulty, repair
it.

Yamaha XVS650 Specifications

General

Compression Ratio	9.0:1
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	130/90-16
Rear Tire	170/80-15
Front Brakes	Single disc
