FUEL PUMP SYSTEM IElECI0 I
EB80801 0

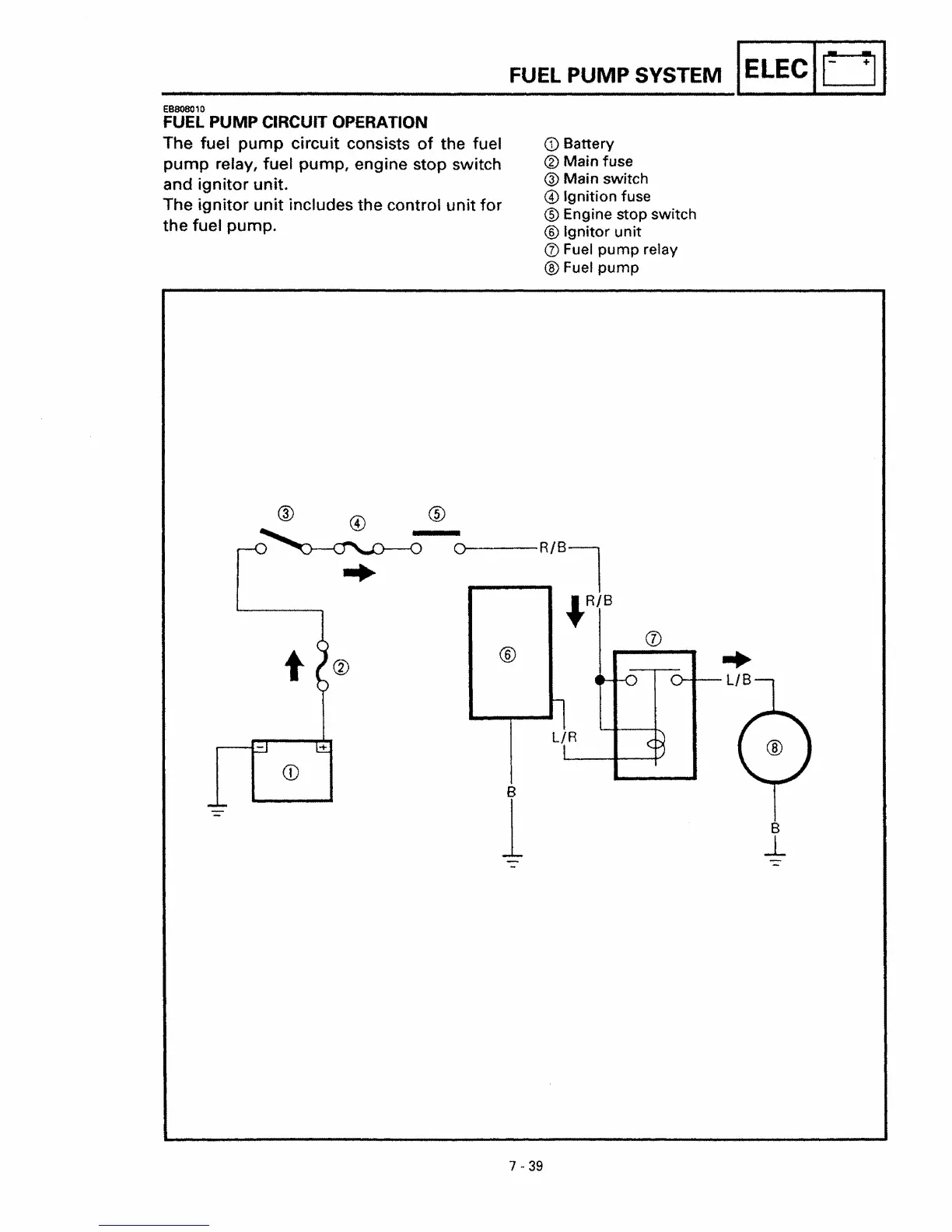

FUEL PUMP CIRCUIT OPERATION
The fuel pump circuit consists of the fuel
pump relay, fuel pump, engine stop switch
and ignitor unit.
The
ignitor unit includes the control unit for
the fuel pump.
<D Battery
® Main fuse
® Main switch
@ Ignition fuse
® Engine stop switch
® Ignitor unit
(j) Fuel pump relay
® Fuel pump
®
1
t ®
7 - 39
