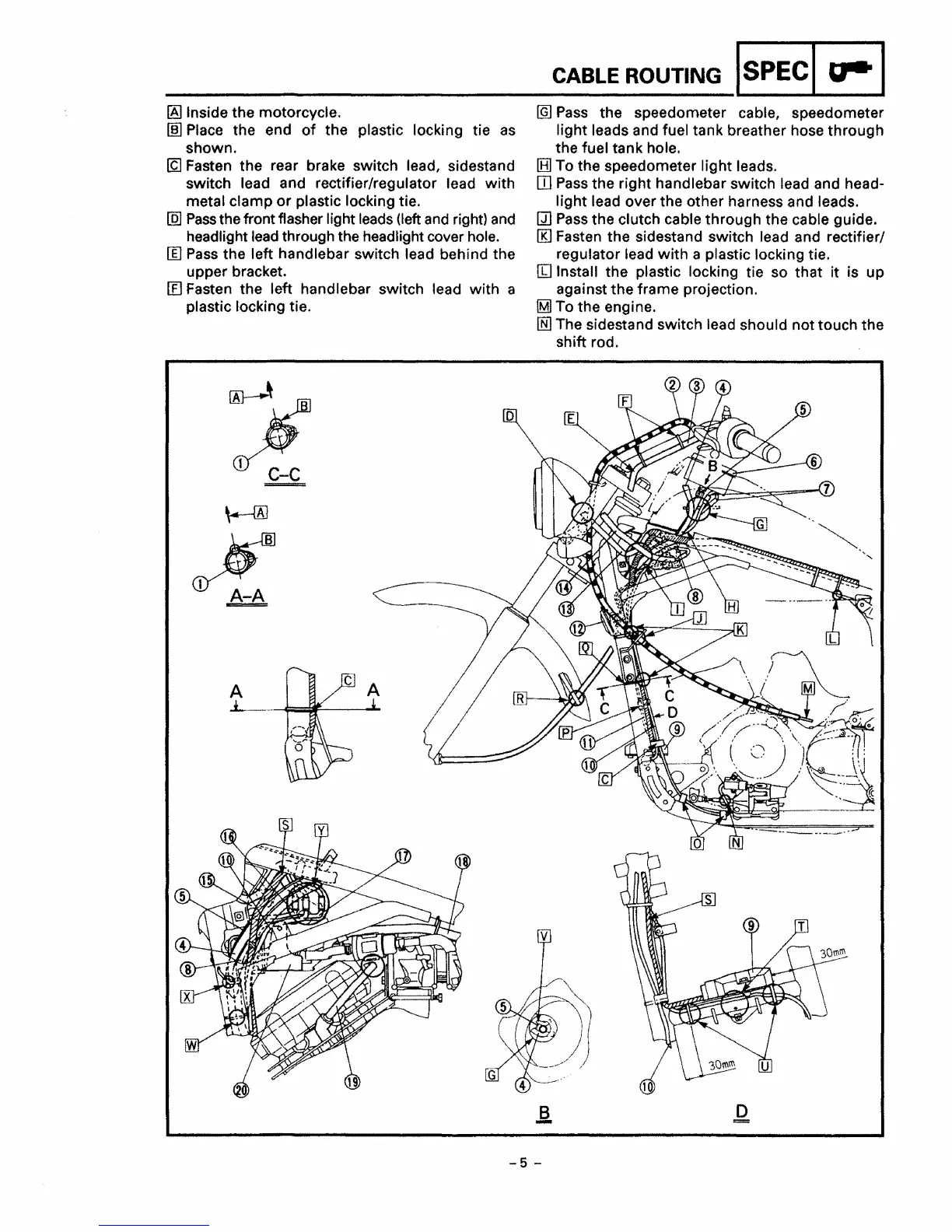

I!llnside
the motorcycle.
lID
Place the end
of
the plastic locking tie
as
shown.
[g
Fasten the rear brake switch lead, sidestand
switch lead and rectifier/regulator lead with
metal clamp
or
plastic locking tie.
[QJ
Pass
the front flasher light
leads
(left
and
right)
and
headlight
lead
through the headlight cover hole.
[§]
Pass
the left handlebar switch lead behind the
upper bracket.
[ÂŁ]
Fasten the left handlebar switch lead with a
plastic locking tie.
CABLE
ROUTING
ISPECI
0-1
[§]
Pass
the speedometer cable, speedometer
light leads and fuel tank breather hose through
the fuel tank hole.
[8]
To the speedometer light leads.
en
Pass
the right handlebar switch lead and head-
light lead over the other harness and leads.
QJ
Pass
the clutch cable through the cable guide.
00
Fasten the sidestand switch lead and rectifier/
regulator lead with a plastic locking tie.
l!J
Install the plastic locking tie so that it is up
against the frame projection.
!MI
To the engine.
[ffi
The sidestand switch lead should not touch the
shift rod.
D
0:=
-5
-
