6.1.4 Coupling Motor and Machinery
Consider the following conditions when coupling the motor with the machinery. For the servomotor, only the
direct coupling is available.
(1) Direct Coupling
Couple the motor with the machinery so that the center of the motor shaft and that of the machinery shaft are
on a straight line. Insert a liner for adjustment, if necessary.

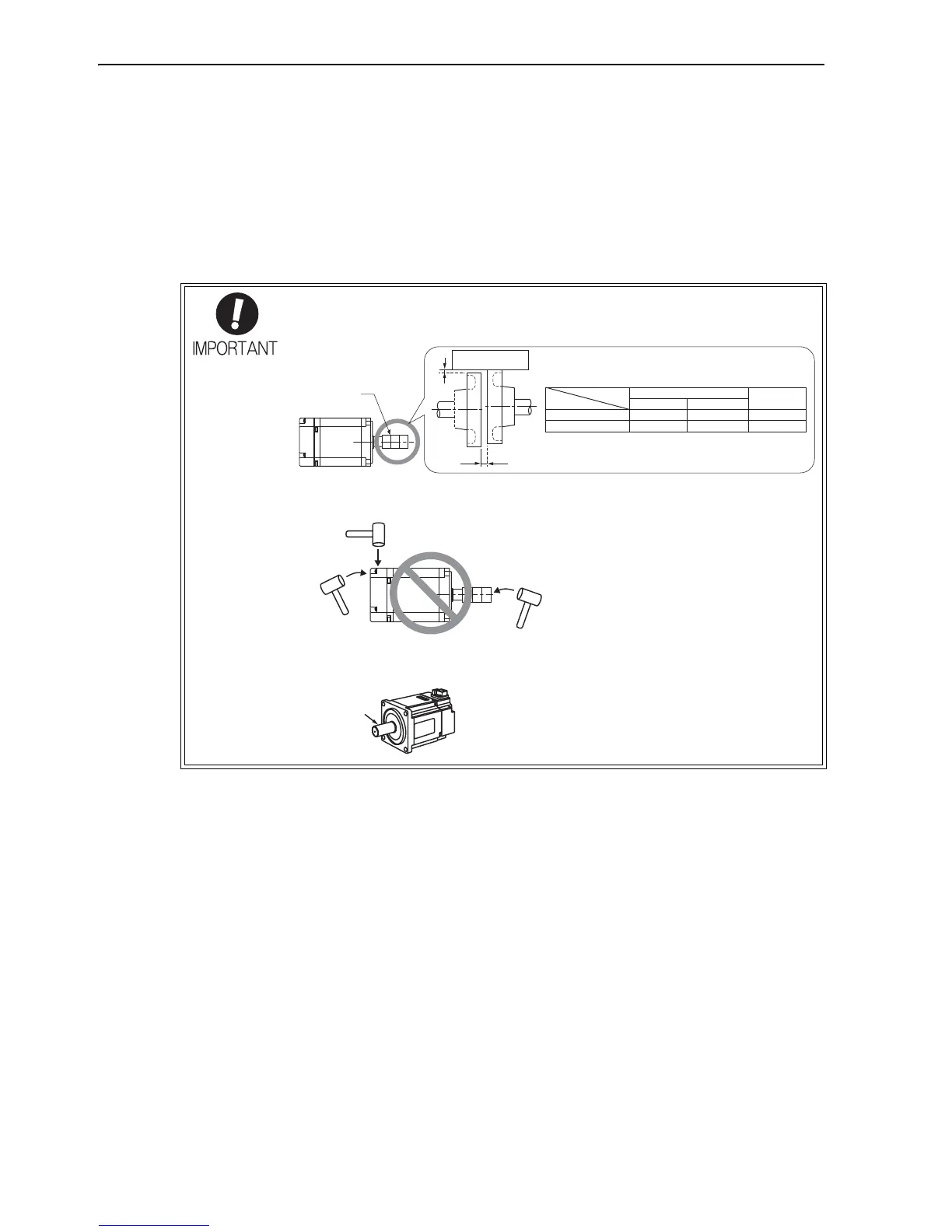

• Install the servomotor so that alignment accuracy falls within the following range.
Vibration that will damage the bearings and encoders if the shafts are not properly
aligned.
• Do not allow any direct impact to the shafts when installing the couplings. Do not hit
the area near encoders with a hammer etc., as impacts may damage the encoders.
• Before installation, thoroughly remove the anticorrosive paint from the end of the
motor shaft. Only after removing the paint can motors be installed on the machines.
Coupling
*㧦
Alignment Accuracy
Note: Turn together with coupling.
*
*
Level
Tolerance A
Surface irregularity B
0.03 mm max.
0.03 mm max.
Spindle Motor
Standard
0.01 mm max.
0.01 mm max.
0.03 mm max.
0.03 mm max.
High-speed type
Servomotor
A
B
Anticorrosive
paint is
coated here.
