10 Standards Compliance
10.2.2 Precautions
10-4
∗1. Recommended surge absorber model: LT-C32G801WS (Soshin Electric Co., Ltd.)
∗2. For more information on this noise filter, refer to 5.4 Noise Filter.
∗3. For more information on this AC reactor, refer to 5.2 AC Reactor.
∗4. Install the following surge absorber on the power line between the single-phase 200 V power supply and the 24 VDC
power supply.
Surge absorber model: LT-C12G801WS (Soshin Electric Co., Ltd.)
∗5. Install the following noise filter on the power line between the single-phase 200 V power supply and the 24 VDC
power supply.
Noise filter model: HF2005A-UP (Soshin Electric Co., Ltd.)
∗6. Use a 24-VDC control power supply with double insulation against primary or reinforced insulation.
∗7. For the EtherCAT (CoE) communication cable, refer to 2.2.3 (9) Cable Specifications for Use with EtherCAT (CoE)
Communications.

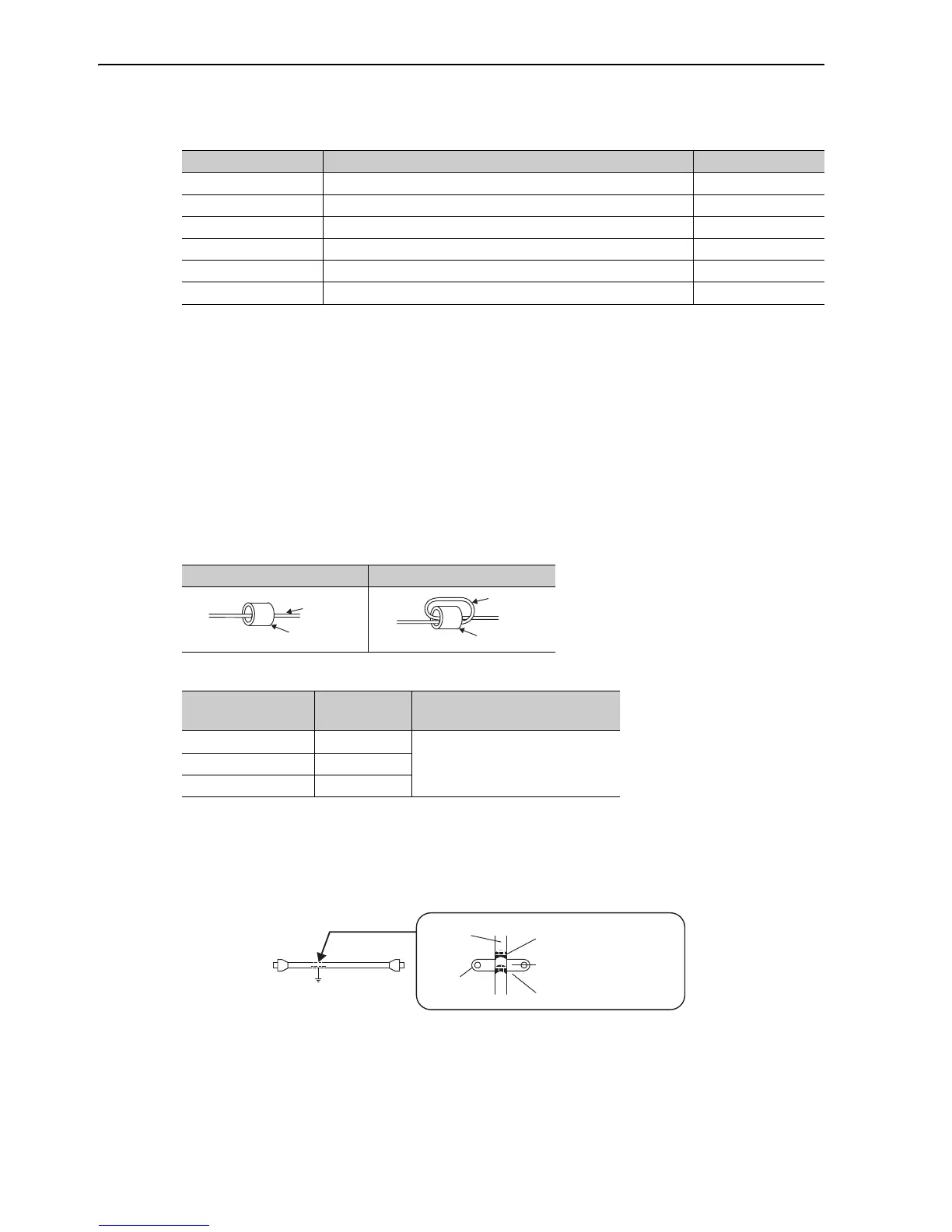

10.2.2 Precautions
(1) Attachment Methods of Ferrite Cores
(2) Recommended Ferrite Core
∗ For details, refer to diagrams in 10.2.1 EMC Installation Conditions.
(3) Fixing the Cable
Fix and ground the cable shield using a piece of conductive metal.
•Example of Cable Clamp
(4) Shield Box
A shield box, which is a closed metallic enclosure, is effective as reinforced shielding against electromagnetic
interference (EMI) from SERVOPACKs. The structure of the box should allow the main body, door, and cool-
ing unit to be attached to the ground. The box opening should be as small as possible.
Note: Do not connect the analog monitor cable to the SERVOPACK during operations.
Connect them only when the machinery is stopped during maintenance.
i Spindle motor main circuit cable Shield cable
j Spindle motor encoder cable Shield cable
k Servomotor main circuit cable for 1st axis Shield cable
l Servomotor encoder cable for 1st axis Shield cable
Servomotor main circuit cable for 2nd axis Shield cable
Servomotor encoder cable for 2nd axis Shield cable
(cont’d)
Symbol Cable Name Specification
Ԣ
To Next Page
