5.3 Magnetic Contactor for Winding Selection
5-9
Peripheral Devices
5

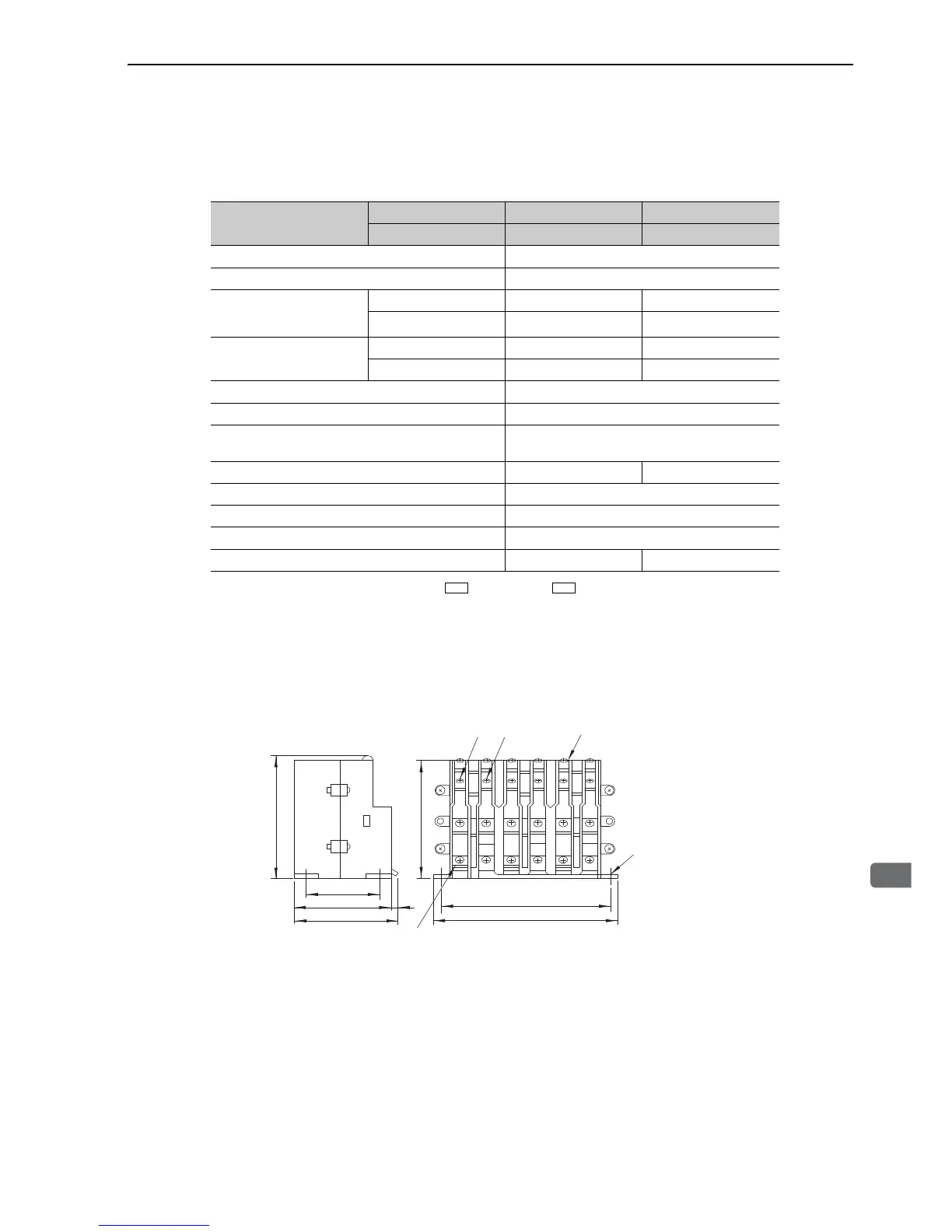

5.3 Magnetic Contactor for Winding Selection
5.3.1 Specifications
∗1. Safety covers are provided on the HV- AP4S and HV- AP4S/UL.
∗2. A dwell time of 1 hour or more is required after applying power supply for 30 minutes.
5.3.2 External Dimensions
The external dimensions are shown below.
(1) Model: HV-75AP4
Model
*1
Standard HV-75AP4 HV-150AP4
For UL Compliance HV-75AP4/UL HV-150AP4/UL
Contact Main contact: 3NO, 3NC, auxiliary contact: 1NC
Rated Insulation Voltage 600 V
Rated Applying Current
Continuous 75 A 150 A
30 minutes
*2
87 A 175 A
Breaking Current
Capacity
220 V 200 A 400 A
440 V 150 A 300 A
Open/Close Frequency 600 times/hour
Mechanical Duration of Life 5 million times
Control Magnetic Coil Rating
200 V 50/60 Hz, 220 V 50/60 Hz,
230 V 60 Hz
Mass 2.5 kg 5.0 kg
Ambient Temperature -10 to 55°C
Storage Temperature -20 to 85°C
Humidity 10 to 95%RH (non-condensing)
Spindle Motor Capacity (50%ED) 5.5 to 15 kW 18.5 to 30 kW
Main circuit terminals (M5)
Control circuit terminals (M4)
4-M6 mounting holes
Unit: mm
123456
7
8
9
10
11
12
13
14
15
16
17
18
145
160
107
92
85
65
110
