Yealink VC110 User Manual

User Guide for Yealink VC110 Video Conferencing Endpoint
86

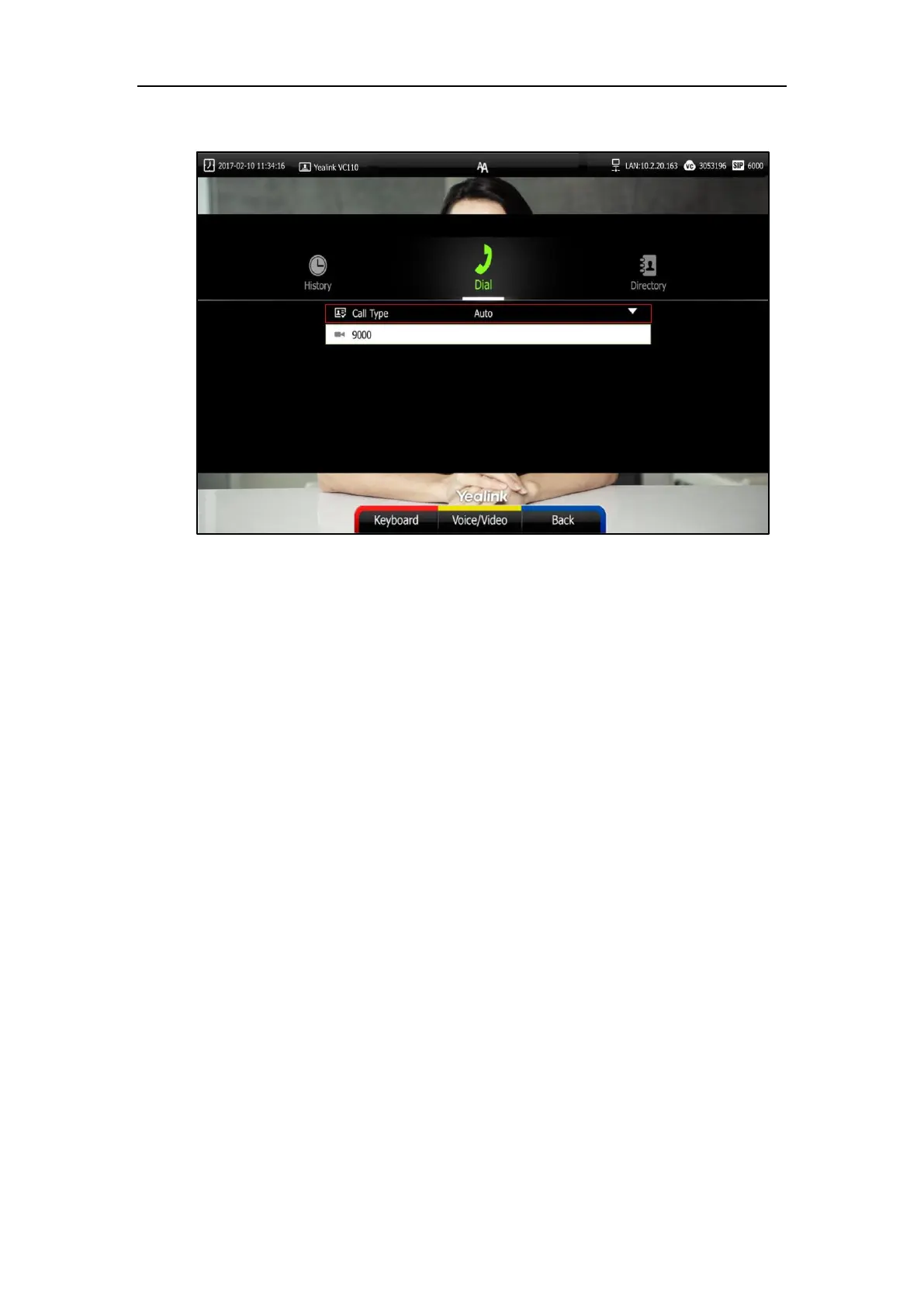

2. On endpoint A, select Auto from the pull-down list of Call Type before calling.
3. On endpoint A, dial the account numbers of endpoint B.
Result：
 If account polling is disabled, endpoint A can only use its Cloud account (highest priority)
to call endpoint B.
 If account polling is enabled, endpoint A will use its Cloud account (highest priority) to call
endpoint B first. If this call fails, endpoint A continues to use its SIP account (next priority)
to call endpoint B.
To configure account polling via web user interface:
1. Click on Setting->Call Features.
2. Select the desired value from the pull-down list of Account Polling.
- If you select Disabled, the endpoint can only call other endpoints using the call type
with the highest priority.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
