Yealink VC110 User Manual

Customizing the VC110 Video Conferencing Endpoint
69
Importing/Exporting Contact Lists
You can import or export the contact list to share contacts between different endpoints or
between endpoint and application software (e.g., Outlook).
The VC110 video conferencing endpoint only supports the XML and CSV format contact lists.
You can only import or export the contact list via the web user interface.
To import an XML file of contact lists via the web user interface:
1. Click on Directory->Local Directory.
2. Click Import/Export.
3. Click Import.
4. Click Browse to locate a contact list file (file format must be *.xml) from your local endpoint.
5. Click Confirm to import the contact list.
The web user interface prompts "The original contact will be covered, continue?".
6. Click Confirm to complete importing the contact list.
The web user interface prompts "Contacts imported successfully!".

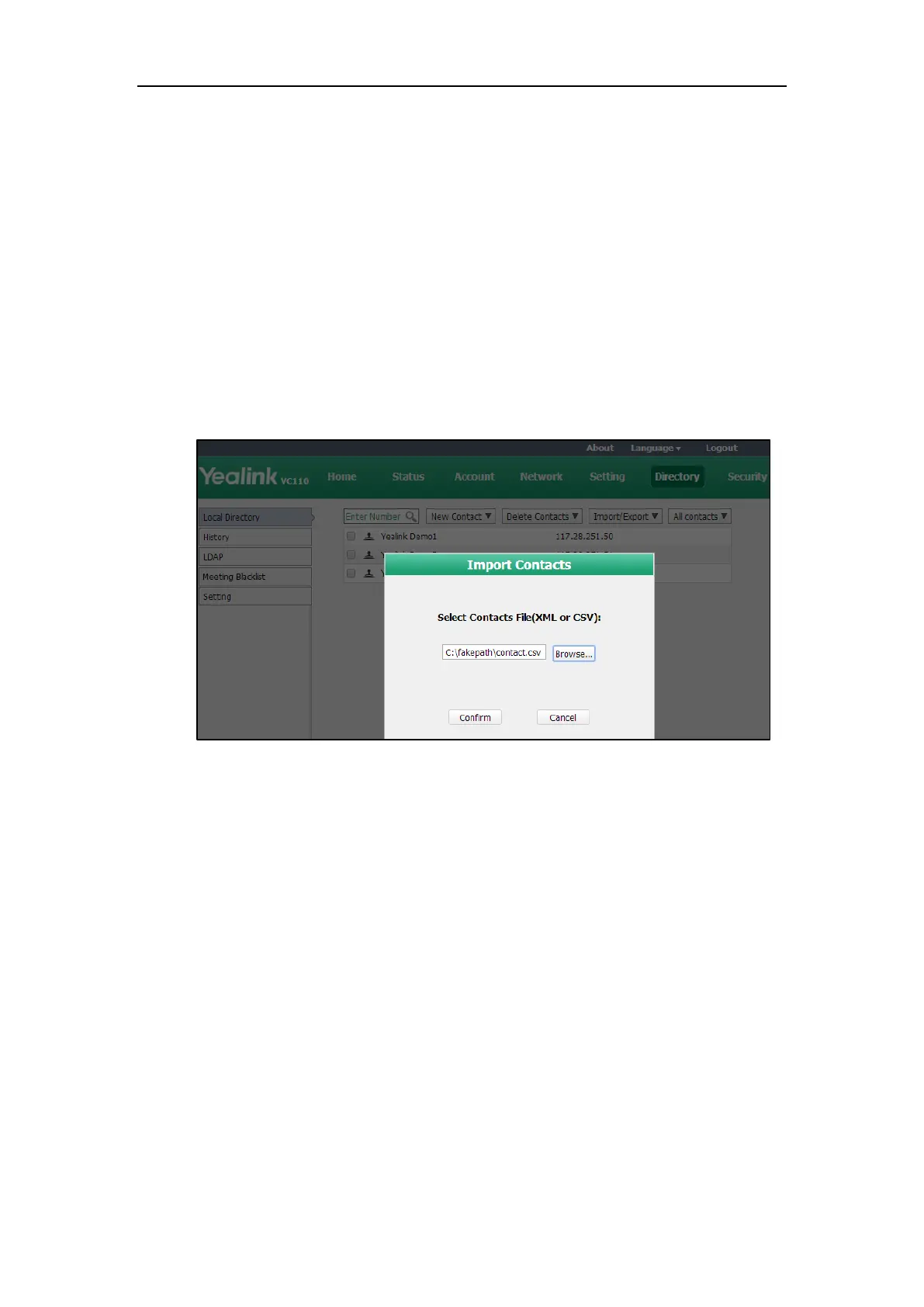

To import a CSV file of contact lists via the web user interface:
1. Click on Directory->Local Directory.
2. Click Import/Export.
3. Click Import.
4. Click Browse to locate a contact list file (file format must be *.csv) from your local endpoint.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
