YOKOGAWA digitalYEWFLO Series User Manual

<APPENDIX 6. Enhanced ARITHMETIC (AR) BLOCK>
A6-9
IM 01F06F00-01EN
Relative
Index
Parameter Write Mode
Initial
Value
Description / Remarks
50
AR_CONFIG_
SOFT_REV
AUTO (Space)
Memo; The version of MV tool which is calculated multinominal approximation
coefcient.
51
AR_CONFIG_
DATE
AUTO (Space)
Memo; The date of multinomial approximation coefcient setting.
52
AR_CONFIG_
WHO
AUTO (Space)
Memo; The person who set the multinominal approximation coefcient.
53
AR_CONFIG_
STATUS
AUTO 0 Memo; Setting download status.
54
AR_CONFIG_
VSTRING32
AUTO (Space) Memo; 32 characters
55
AR_CONFIG_
VSTRING16
AUTO (Space) Memo; 16x2 characters
56
AR_CONFIG_
OSTRING32
AUTO 0 Memo; 32 characters
57
AR_CONFIG_
OSTRING2
AUTO 0
SUM of coefcient which is calculated at multinominal approximation coefcient
setting.

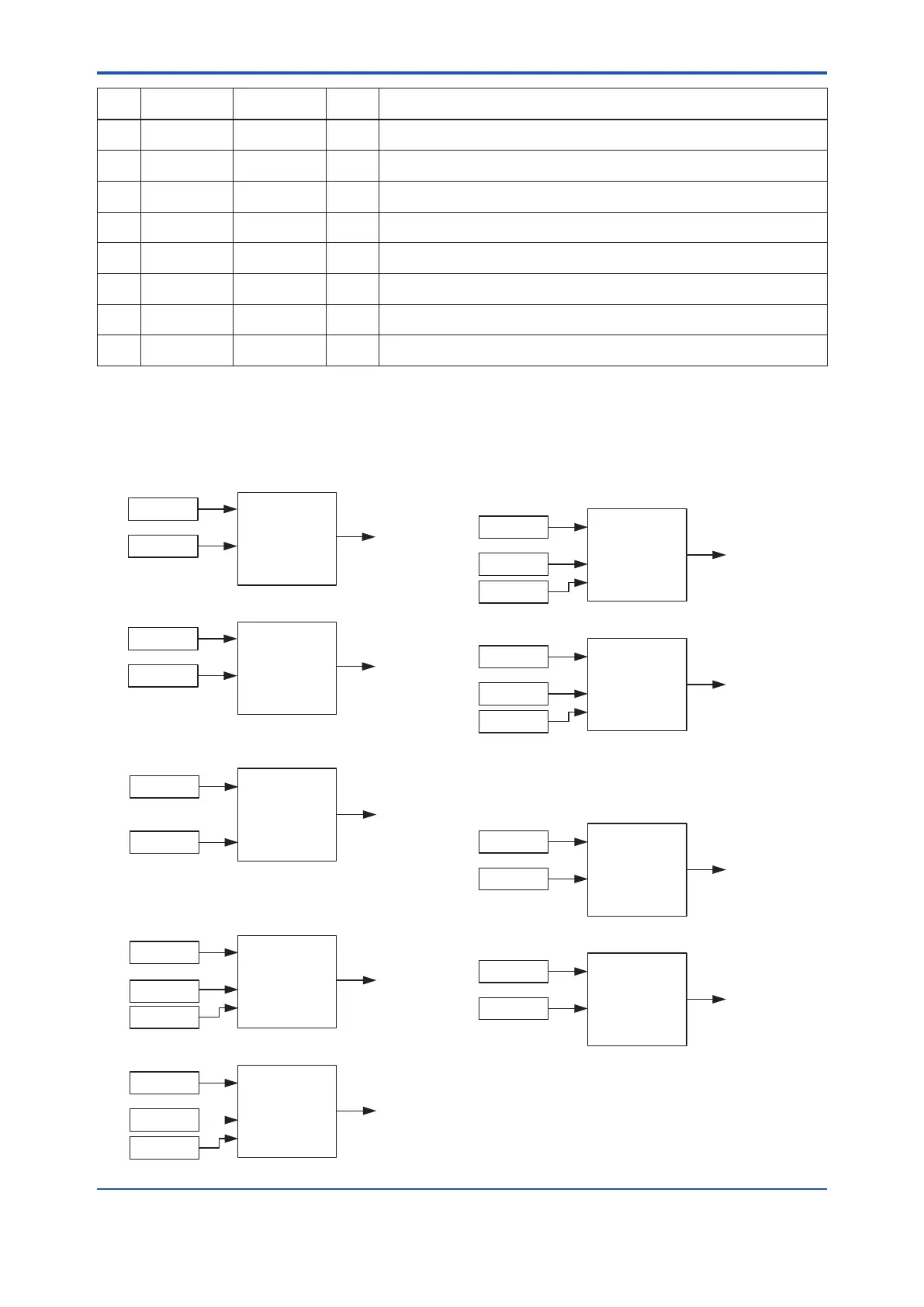

A6.6 Example of Connection
DYF AI3
DYF AI2
Mass Flow Rate
DYF AI3
Temp. AI
Mass Flow Rate
DYF AI3
DYF AI2
Mass Flow Rate
DYF AI3
Press. AI
Mass Flow Rate
Press. AI
DYF AI3
Temp. AI
Mass Flow Rate
Press. AI
DYF AI3
DYF AI2
Mass Flow Rate or
Volumetric Flow
Rate at Normal
Condition
Press. AI
DYF AI3
Temp. AI
Mass Flow Rate or
Volumetric Flow
Rate at Normal
Condition
Press. AI
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
DYF AI3
DYF AI2
Mass Flow Rate
DYF AI3
Temp. AI
Mass Flow Rate
ARITH_TYPE:32 Saturated steam (Temperature)
In case of using external temperature output
In case of using built-in temperature sensor output
ARITH_TYPE:33 Saturated steam (Pressure)
ARITH_TYPE:34 Superheat steam
In case of using external temperature output
In case of using built-in temperature sensor output
ARITH_TYPE:35 Gas temperature pressure compensation
ARITH_TYPE:37 Gas temperature pressure compensation (Detail)
In case of using external temperature output
In case of using built-in temperature sensor output
ARITH_TYPE:36 Liquid temperature compensation
ARITH_TYPE:38 Liquid temperature compensation (Detail)
In case of using external temperature output
In case of using built-in temperature sensor output
FA0605.ai
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
AR
IN
IN_1
IN_2
OUT
