YOKOGAWA digitalYEWFLO Series User Manual

<10. EXPLOSION PROTECTED TYPE INSTRUMENT>
10-11
IM 01F06F00-01EN

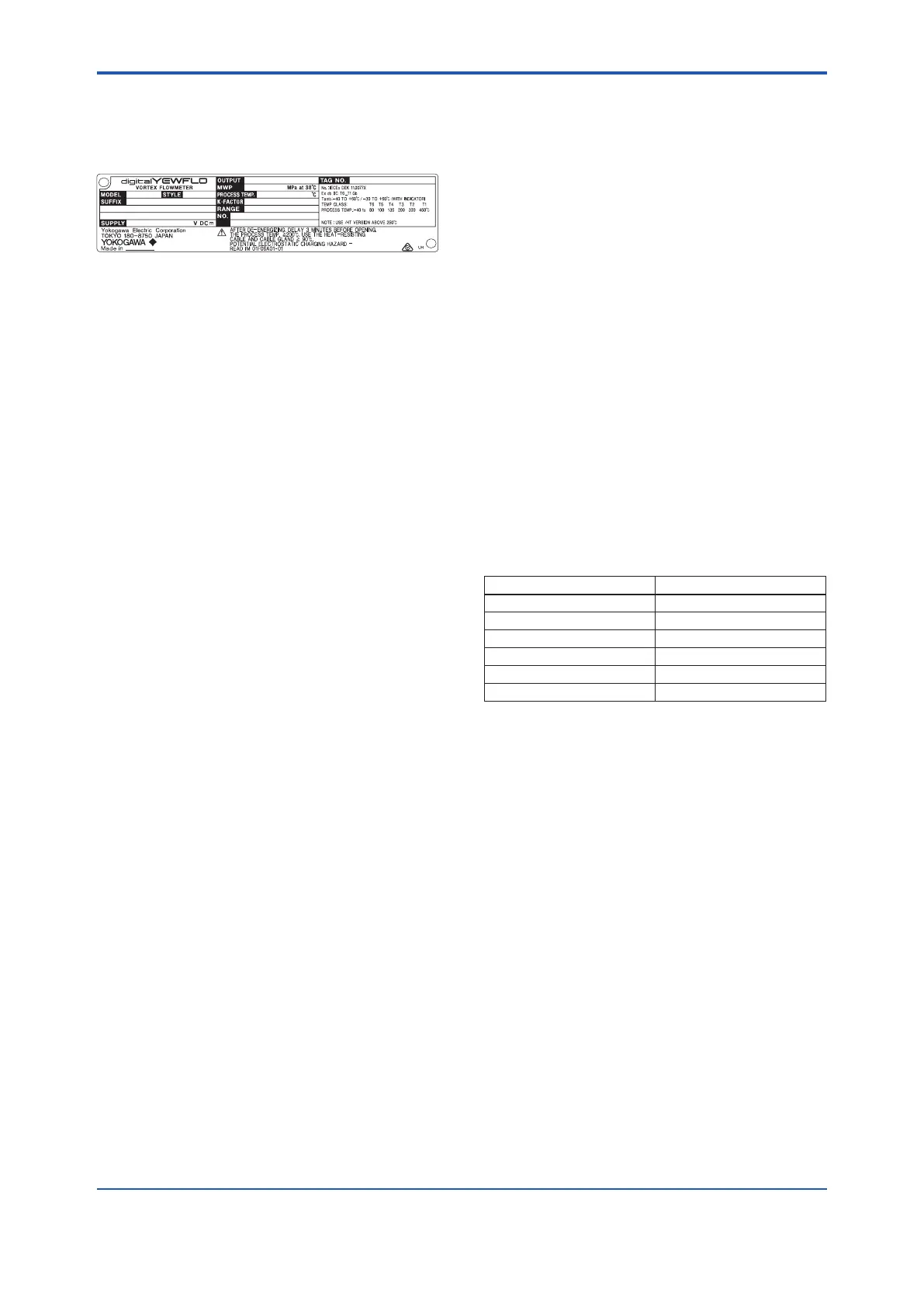

(6) Name Plate
Example for name plates in case of
“Flameproof, Integral type”
*2
MODEL: Specied model code
SUFFIX: Specied sufx code
STYLE: Style code
SUPPLY: Supply voltage
OUTPUT: Output signal
MWP: Maximum working pressure
PROCESS TEMP.: Process temperature
K-FACTOR: Device-specic factor
RANGE: Specied range
NO.: Upper column: Manufacturing serial number
Lower column: The year and month of production
TAG NO.: Specied TAG No.
IECEx DEK 11.0077X: Certicate number*
1
Ex db IIC T6...T1 Gb: Type of Protection*
1
*1) Example for “Flameproof, Integral type”
*2) The product - producing country
10.4 CSA
(1) Technical Data
•ExplosionProof
Applicable Standard: C22.1-98, C22.2 No.0-M1991,
C22.2 No.0.4-04, C22.2
No.0.5-1982, C22.2 No. 25-
1966, C22.2 No. 30-M1986,
C22.2 No. 94-M1991, C22.2
No. 142-M1987, C22.2 No.
61010-1-04, ANSI/ISA-
12.27.01-2003
Certicate: 1166201
Type of Protection:
Explosion proof for Class I, B, C and D;
Class II, Groups E, F and G; Class III.
For Class I, Division 2 location:
“FACTORY SEALED, CONDUIT SEAL NOT
REQUIRED.”
Enclosure : Type 4X
Temperature Code:
(Integral Type and Remote Type Detector)
Temperature Code Process Temperature
T6 ≤85°C
T5 ≤100°C
T4 ≤135°C
T3 ≤200°C
T2 ≤300°C
T1 ≤450°C
Temperature Code: T6 (Remote Type Converter)
Ambient Temperature: -50 to +60°C
Power Supply: 9 to 32 Vdc (Integral Type and
Remote Type Converter)
Output Signal (Remote Type Detector):
Output Signal; 30Vp-p, 100μAp-p
Input/Output signal (Remote Type Converter):
Input Signal; 30Vp-p, 100μAp-p
Electrical Connection: ANSI 1/2 NPT female
