<12. OPERATION OF DO (Dissolved Oxygen)>
12-6
IM 12A01A02-01E
Next
20
12
4
mA
15.00
HOLD
FAIL
WASH
Next
New sensor?
“Yes” resets
sensor wellness data.
Yes
No
HOUSING ASSY:
Module Pdn No. 23456789
Software Revision 2.10
HART Device Revision 2
Next
Reset wellness data
Zero Current 0.00 µA
Slope 100.0 %
Sensor Current 0.00 µA
Available KOH 100 %
Compensation:
NaCl Disable
Press(Process) 101.3 kPa
(Cal.) 101.3 kPa
Next
Sesor wellness:
Slope
Heat cycle – – – –
Progress Time – – – –
Reset welness data
Next
DO module(sensor1):
Module Pdn No. S12345
Software Revision 1.10
Next
2010/02/15 16:04:07
Last calibrated at
-------- ------
Calibration due at
-------- ------
Next
(Fig.12.7)
*: This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in communication setup.
*

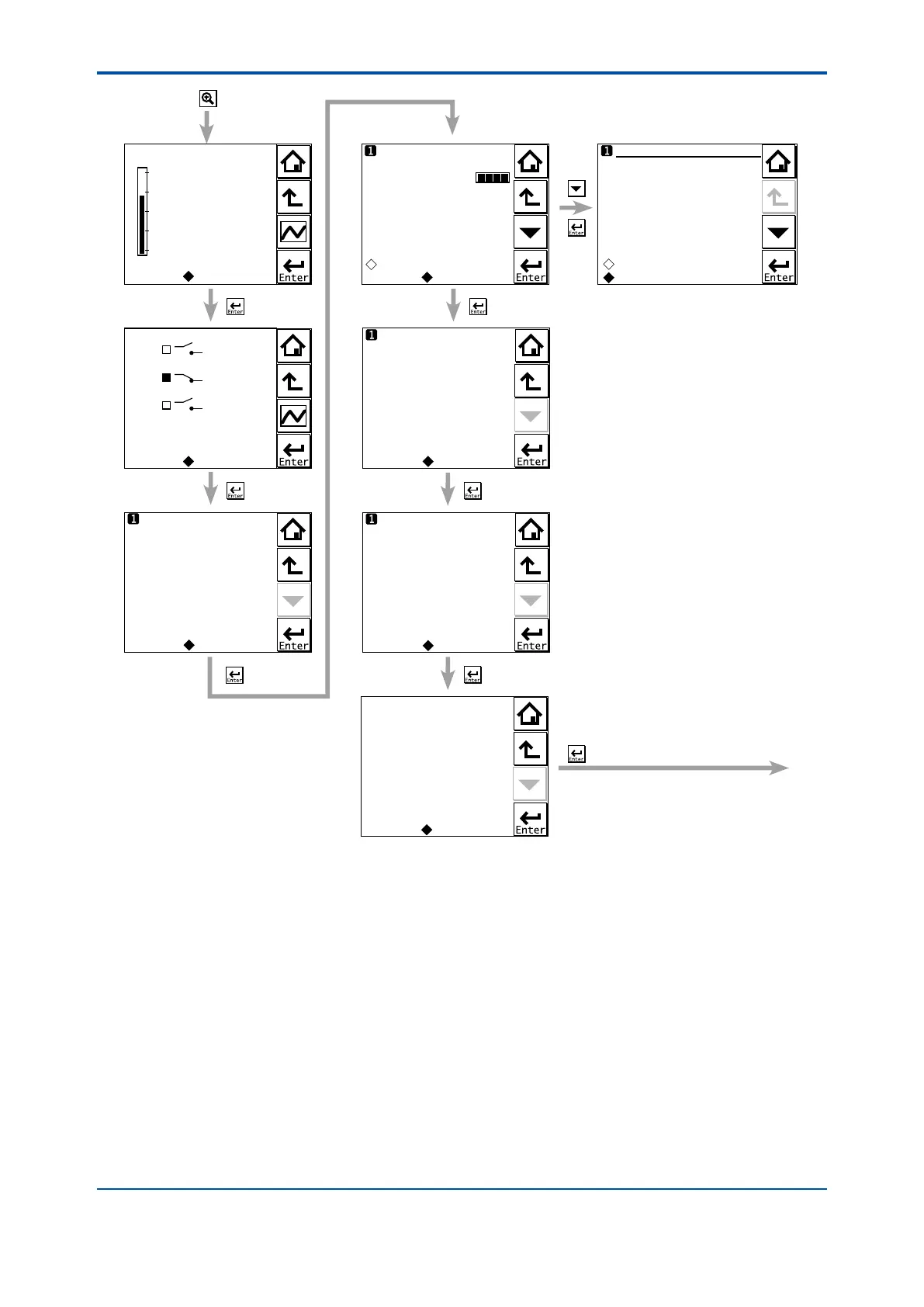

Figure 12.6 Detail display
n Current output mA
= current output in mA. The range and function of this mA output can be set in Commissioning →
Output setup → mA.
For details, see section 13.3.
n Contact status
This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in
communication setup.
8th Edition : Oct. 01, 2015-00
