<3. OPERATION OF pH/ORP>
3-6
IM 12A01A02-01E 8th Edition : Oct. 01, 2015-00
In case of trouble, when you contact your nearest Yokogawa service center, please inform us
of the module and FLXA202/FLXA21 software revision displayed on the Detail screen and
other display information as well as the module productions number indicated on the nameplate
attached to the instrument.
Next
20
12
4
mA
15.00
HOLD
FAIL
WASH
Next
pH: Zero 0.000mV
Slope 100.0 %
Sensor 1.234 mV
ORP: Zero 0.000 mV
Slope 100.0 %
Sensor -1.567 mV
Impedance 1 BAD
Impedance 2 124.6 kΩ
Next
Sesor wellness:
Zero
Slope
Input 1 imp. – – – –
Input 2 imp. – – – –
Heat cycle – – – –
Progress Time – – – –
Reset welness data
Next
New sensor?
“Yes” resets
sensor wellness data.
Yes
No
2010/02/15 16:04:07
Last calibrated at
-------- ------
Calibration due at
-------- ------
Projected maintenance
-- (no meaning)
Projected replacement
-- (no meaning)
Next
PH module(sensor1):
Module Pdn No. AAAA1111
Software Revision 1.10
Next
HOUSING ASSY:
Module Pdn No. BBBB2222
Software Revision 2.10
HART Device Revision 2
Next
Reset wellness data

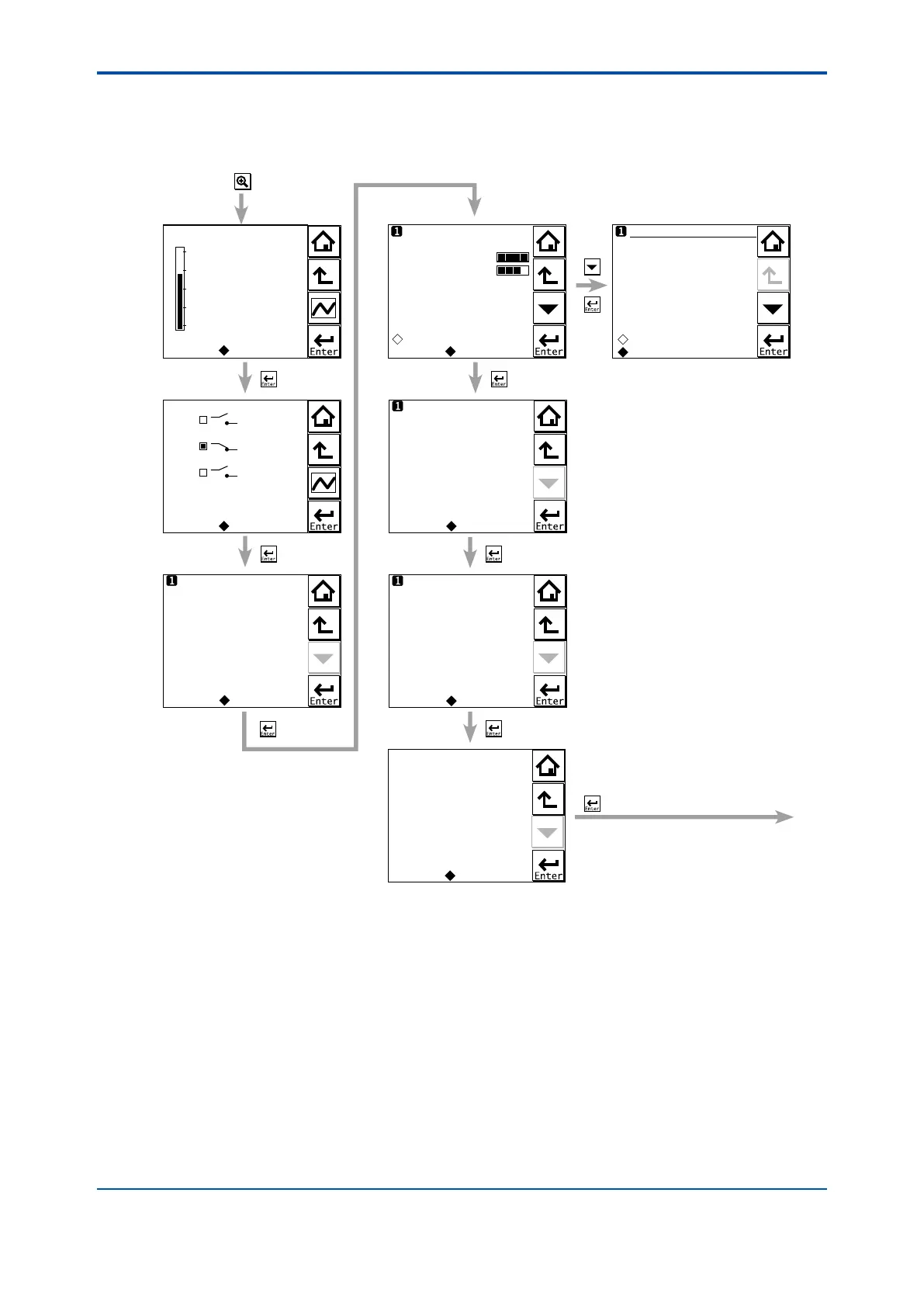

(Fig.3.9)
*: This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in communication setup.
*
Figure 3.6 Detail display
n Current output mA
= current output in mA. The range and function of this mA output can be set in Commissioning →
Output setup → mA.
For details, see section 4.3.
n Contact status
This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in
communication setup.
