176
ADJUSTMENT
C750
TENSIONING OF ENGINE BELT
At correct tensioning of the belt, belt
deflection must be 5,5 mm after affecting
one belt by force of 25 N.
Adjust the belt tension to prescribed
value after loosening of the alternator
fixing screws (1, 2).

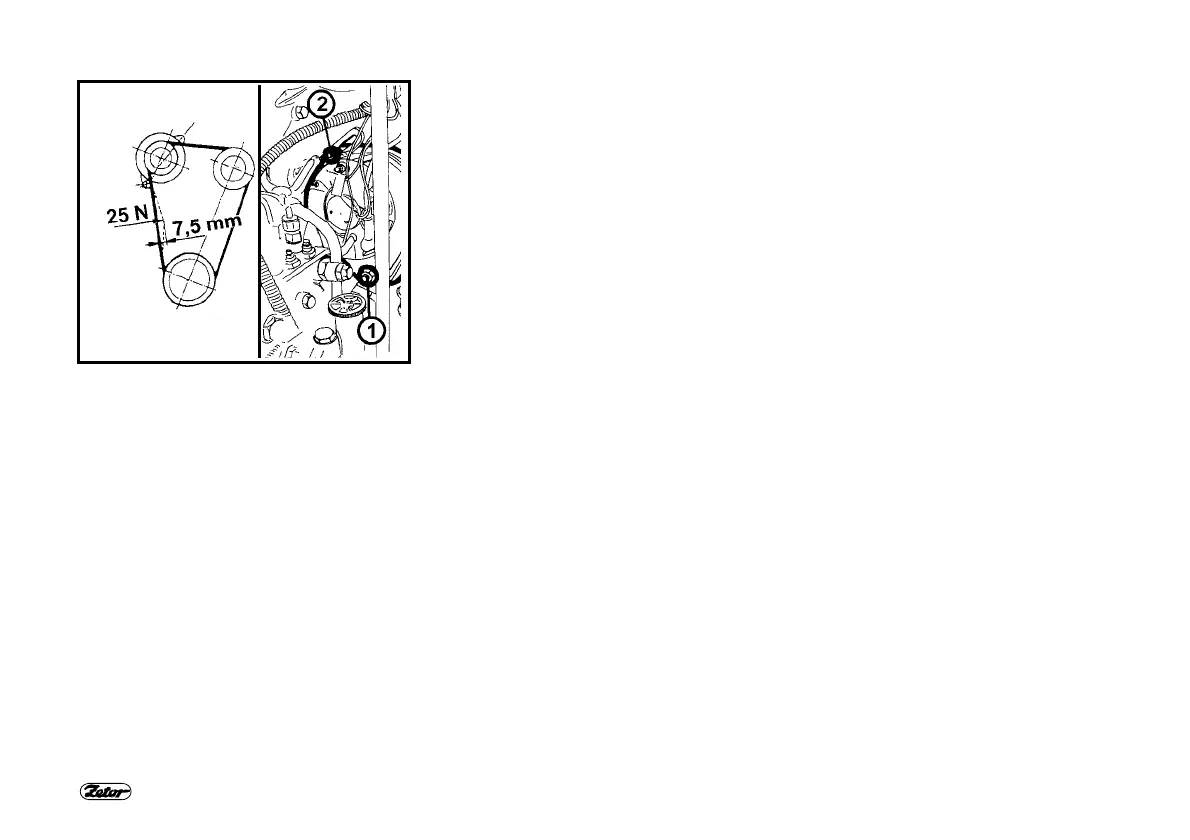

TENSIONING OF AIR-CONDITIONING
COMPRESSOR BELT
At correct tensioning of the belt, belt
deflection must be 7,5 mm after affecting
one belt by force of 25 N.
Adjust the belt tension to prescribed
value after loosening of the fixing screws
of the air-conditioning compressor.
