PTO DRIVE OF AGRICULTURAL MACHINES

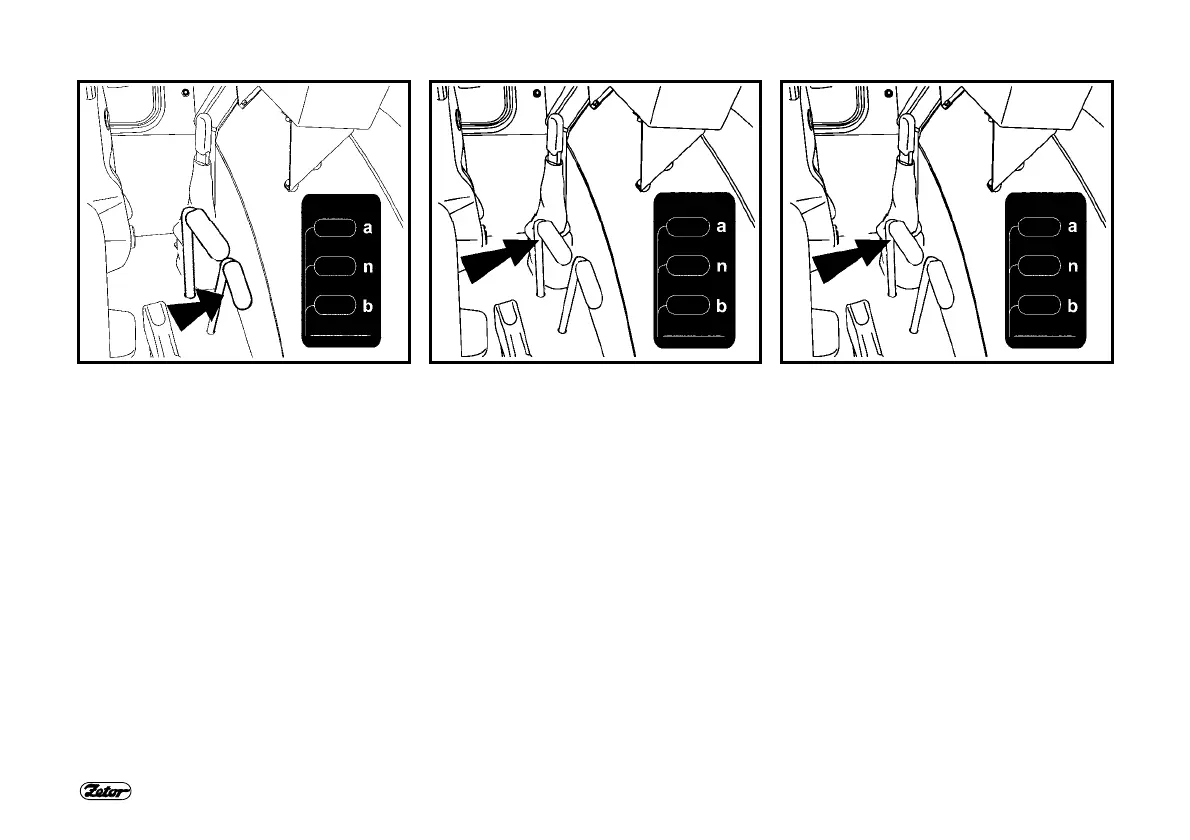

G154 G153 G153
CHANGE OF DEPENDING AND
INDEPENDENT ROTATIONS
Change is implemented when the tractor
is in rest and the hand lever switching off
the output shaft coupling is off.
a -
output shaft independent
rotations (number of rotations
depends on number of the engine
rotations)
n -
neutral position. Use it to make
easier connection of the cardan
shaft of an agricultural machine.
The end piece of the rear output
shaft may rotate freely.
b -
output shaft depending rotations
(number and direction of the
rotations depend on the gear and
position of the reversal lever).
CHANGE LEVER FOR THE OUTPUT
SHAFT ROTATIONS 540 AND 1000
RPM
a -
540 rpm
-1
n -
neutral
b -
1000 rpm
-1
The tractor standard type is equipped
only with 540 rpm
-1
and the lever is not
installed.
Change is implemented when the tractor
is in rest and the hand lever switching off
the output shaft coupling is off.
CHANGE LEVER FOR THE OUTPUT
SHAFT ROTATIONS 540 AND 540
RPM
a -
540 rpm
-1
n -
neutral
b -
540 rpm
-1
The tractor standard type is equipped
only with 540 rpm
-1
and the lever is not
installed.
Change is implemented when the tractor
is in rest and the hand lever switching off
the output shaft coupling is off.
