82
PTO DRIVE OF AGRICULTURAL MACHINES
C350 E352b C352

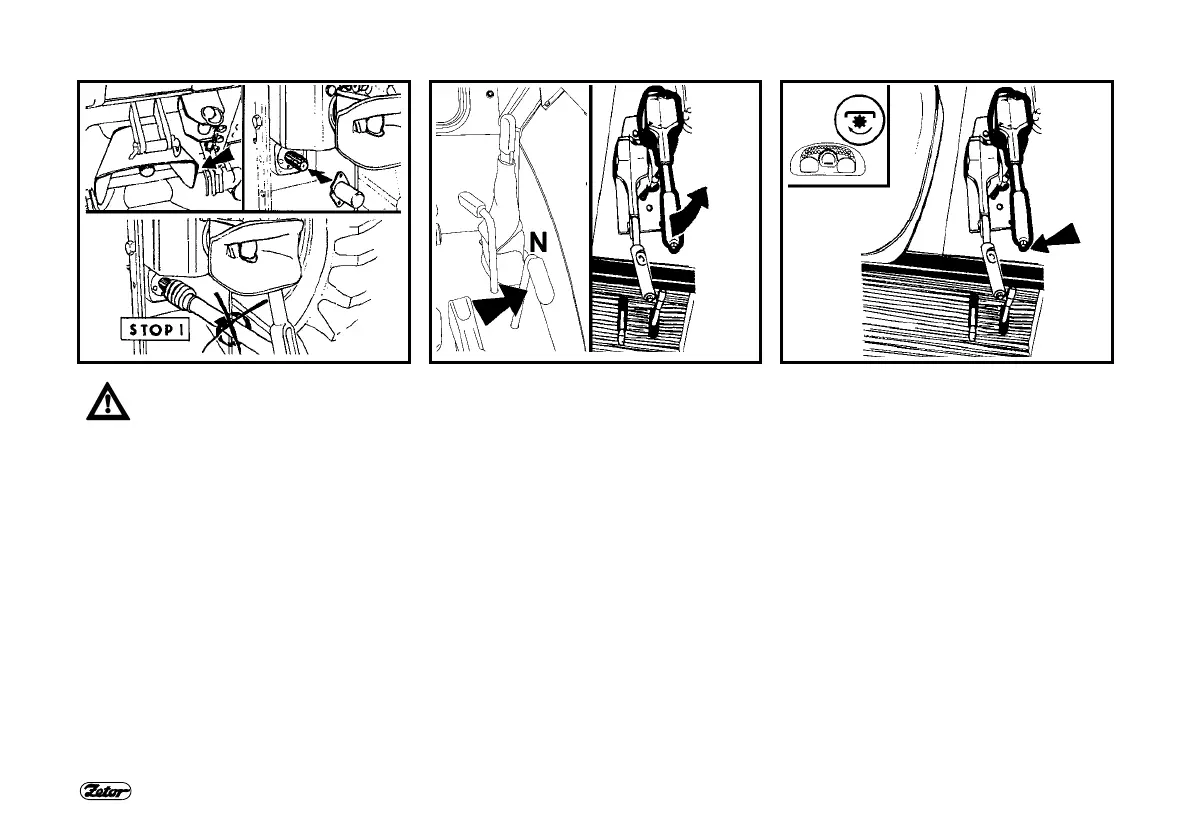

OPERATION WITH PTO
1. When working with the output shaft pay attention to proper fixing of all
covers.
2. After completion of work install always the output shaft cover.
3. Connect and disconnect the articulated shaft of the coupled mechanism
to the rear output shaft of the tractor always when the engine is stopped,
output shaft disengaged and lever of shifting of dependent and
independent rpm of the output shaft in position N - neutral!
4. Connect and disconnect the articulated shaft of the coupled mechanism
to the front output shaft of the tractor always when the engine is stopped
and output shaft disengaged!
5. Perform any repairs or cleaning of parts of the coupled mechanisms
driven by the output shaft only when the engine is stopped, output shaft
disengaged and lever of shifting of dependent and independent rpm of
the output shaft in position N - neutral.
HAND CONTROL LEVER OF PTO
SHAFT CLUTCH
With rising of the hand control lever of
the PTO clutch into the upper position it
comes to disengaging of the PTO clutch.
The upper position of lever is indicated
with indicator light located in the
dashboard. The lever is automatically
locked in the upper position with a latch.
Releasing of locking and return of the
lever into the lower position is possible
after rising the lever and depressing the
push-button at the front of the lever.
Upper position - clutch is disengaged
Lower position - clutch is engaged
