92 Parameters
13.21 AO2 actual value Shows value of AO2 in mA.
This parameter is read-only.
0.000
0.000 … 22.000 mA Value of AO2. 1000 = 1 mA
13.22 AO2 source Selects a signal to be connected to analog output AO2.
Alternatively, sets the output to excitation mode to feed a
constant current to a temperature sensor.
For the selections, see parameter 13.12 AO1 source.
Motor current
13.23 AO2 forced value Forced value that can be used instead of the selected output
signal. See parameter 13.02 AO force selection.
0.000 mA
0.000 … 22.000 mA Forced value for AO2. 1000 = 1 mA
13.26 AO2 filter time Defines the filtering time constant for analog output AO2. See
parameter 13.16 AO1 filter time.
0.100 s
0.000 … 30.000 s Filter time constant. 1000 = 1 s
13.27 AO2 source min Defines the real minimum value of the signal (selected by
parameter 13.22 AO2 source) that corresponds to the
minimum required AO2 output value (defined by parameter
13.29 AO2 out at AO2 src min). See parameter 13.17 AO1
source min about the AO automatic scaling.
Programming 13.27 as the maximum value and 13.28 as the
minimum value inverts the output.
0.0
-32768.0…32767.0 Real signal value corresponding to minimum AO2 output
value.
1 = 1

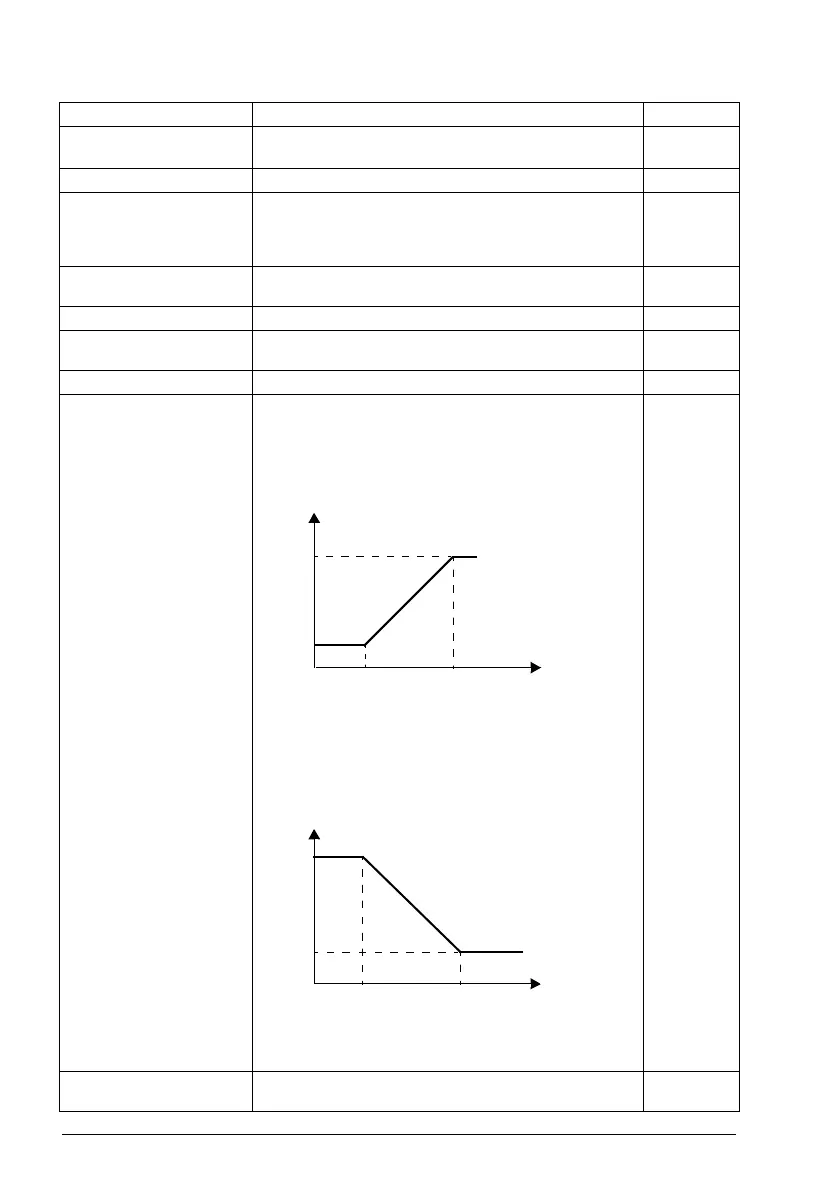

No. Name/Value Description Def/FbEq16
13.2813.27
13.30
13.29
I
AO2
(mA)
Signal (real)
selected by
13.22
I
AO2
(mA)
13.30
13.29
13.28 13.27
Signal (real)
selected by
13.22
