ABB ACS140 User Manual

3

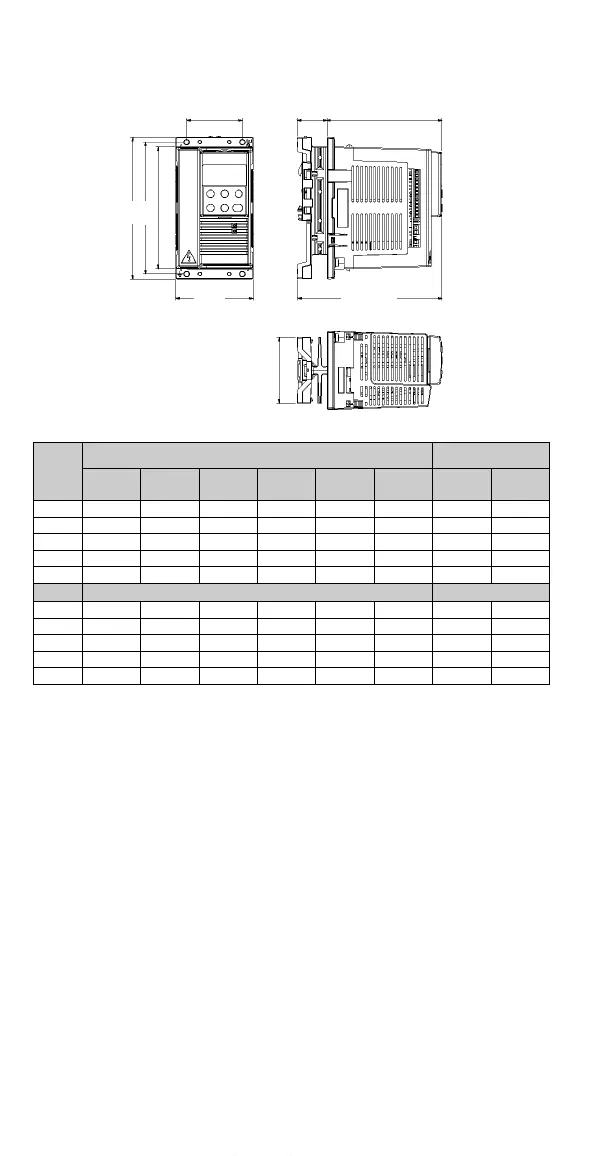

B Dimensions (mm)
Frame
Size
IP 20
200 V Series Weight (kg)
h1 h2 h3 d1 (d2) d1+d2 1~ 3~
A 126 136 146 117 32 149 0.9 0.8
B 126 136 146 117 69 186 1.2 1.1
C 198 208 218 117 52 169 1.6 1.5
D 225 235 245 124 52 176 1.9 1.8
H 126 136 146 119 0 119 0.8 -
400 V Series
A 126 136 146 117 32 149 - 0.8
B 126 136 146 117 69 186 - 1.1
C 198 208 218 117 52 169 - 1.5
D 225 235 245 124 52 176 - 1.8
H 126 136 146 119 0 119 - 0.8
d1 + d2
68
(d2)
h1
d1
h2
h3
58
80
