44
Group 99: Start-up Data
The Start-up Data parameters are a special set of parameters for setting up
the ACS140 and for entering motor information.

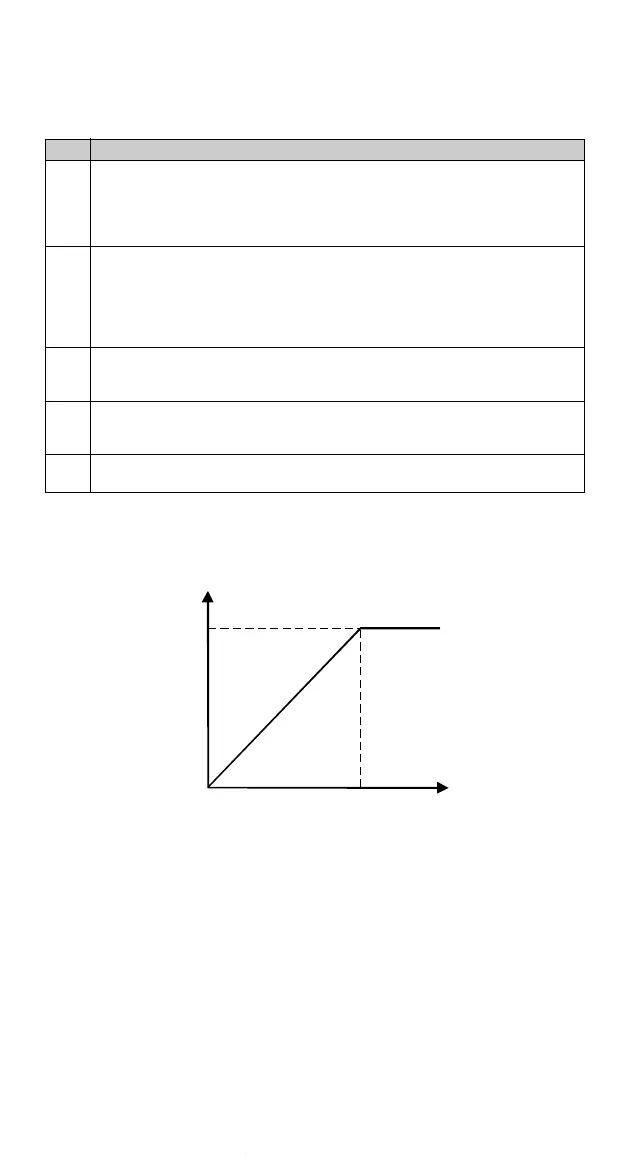

Figure 1 Output voltage as a function of output frequency.
Code Description
9902 APPLIC MACRO
Application macro selection. This parameter is used to select the Application
Macro which will configure the ACS140 for a particular application. Refer to
“Application Macros” on page 29, for a list and description of available
Application Macros.
9905 MOTOR NOM VOLT
Nominal motor voltage from motor rating plate. This parameter sets the
maximum output voltage supplied to motor by ACS140.
MOTOR NOM FREQ sets
the frequency at which output voltage is equal to the
MOTOR NOM VOLT. The
ACS140 cannot supply the motor with a voltage greater than the mains voltage.
See Figure 1.
9906 MOTOR NOM CURR
Nominal motor current from rating plate. The allowed range is 0.5 · I
N
... 1.5 · I
N
of ACS140.
9907 MOTOR NOM FREQ
Nominal motor frequency from rating plate (field weakening point).
See Figure 1.
9908 MOTOR NOM SPEED
Nominal motor speed from rating plate.
Output voltage
Output frequency
MOTOR NOM VOLT
MOTOR
NOM FREQ
