38
Application Macro Premagnetise
This macro is intended for those applications where the drive must start very
quickly. Building up the flux in the motor always takes time. With the
Premagnetise Macro, this delay can be eliminated.
The value of parameter 9902 is 7.
*Constant speed selection: 0 = open, 1 = connected
Premagnetise parameter values:
Input signals Output signals DIP switch S1
• Start, stop and direction (DI1,2) • An. output AO: Frequency
• Analogue reference (AI1) • Relay output 1: Fault
• Preset speed selection (DI3,4) • Relay output 2: Running
• Premagnetise (DI5)
DI3 DI4 Output
0 0 Reference through AI1
1 0 Constant speed 1 (1202)
0 1 Constant speed 2 (1203)
1 1 Constant speed 3 (1204)
1001
EXT 1 COMMANDS 2 (DI1,2) 1106 EXT REF2 SELECT 0 (KEYPAD)
1002
EXT 2 COMMANDS 0 (NOT SEL) 1201 CONST SPEED SEL 7 (DI3,4)
1003
DIRECTION 3 (REQUEST) 1601 RUN ENABLE 0 (NOT SEL)
1102
EXT1/EXT2 SEL 6 (EXT1) 2105 PREMAGN SEL 5 (DI5)
1103
EXT REF1 SELECT 1 (KEYPAD) 2201 ACC/DEC 1/2 SEL 0 (NOT SEL)

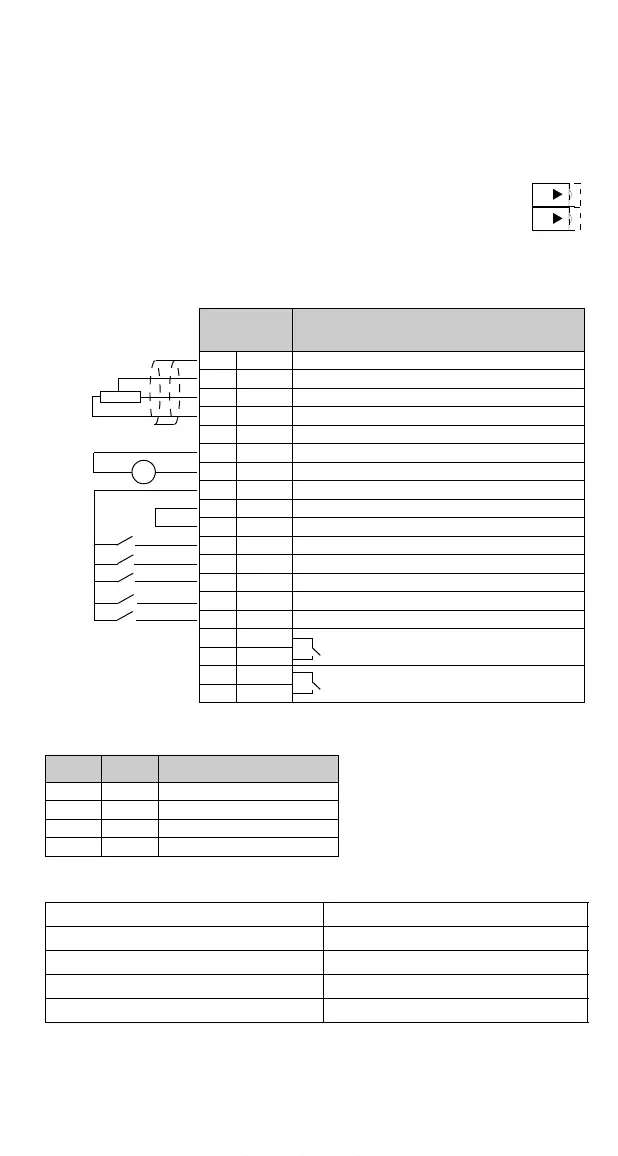

S1:1:U
ON ON
Control
Terminals
Function
1SCR
2 AI 1 External reference1: 0...10 V <=> 0...50 Hz
3AGND
4 10 V Reference voltage 10 VDC
5 AI 2 Not used
6AGND
7 AO Output frequency 0...20 mA <=> 0...50 Hz
8AGND
9 +12 V +12 VDC
10 DCOM
11 DI 1 Start/Stop: Activate to start ACS140
12 DI 2 Fwd/Rev: Activate to reverse rotation direction
13 DI 3 Constant speed select*
14 DI 4 Constant speed select*
15 DI 5 Premagnetise: Activate to start premagnetising
16 RO 1A Relay output 1
Fault: open
17 RO 1B
18 RO 2A Relay output 2
Running: closed
19 RO 2B
mA
