Mechanical installation of non-pre-assembled units (ACS800-04M)
53
Assembling procedure
Assemble the units with bottom exit (+H352) as follows:
1. Remove the front cover of the drive module.

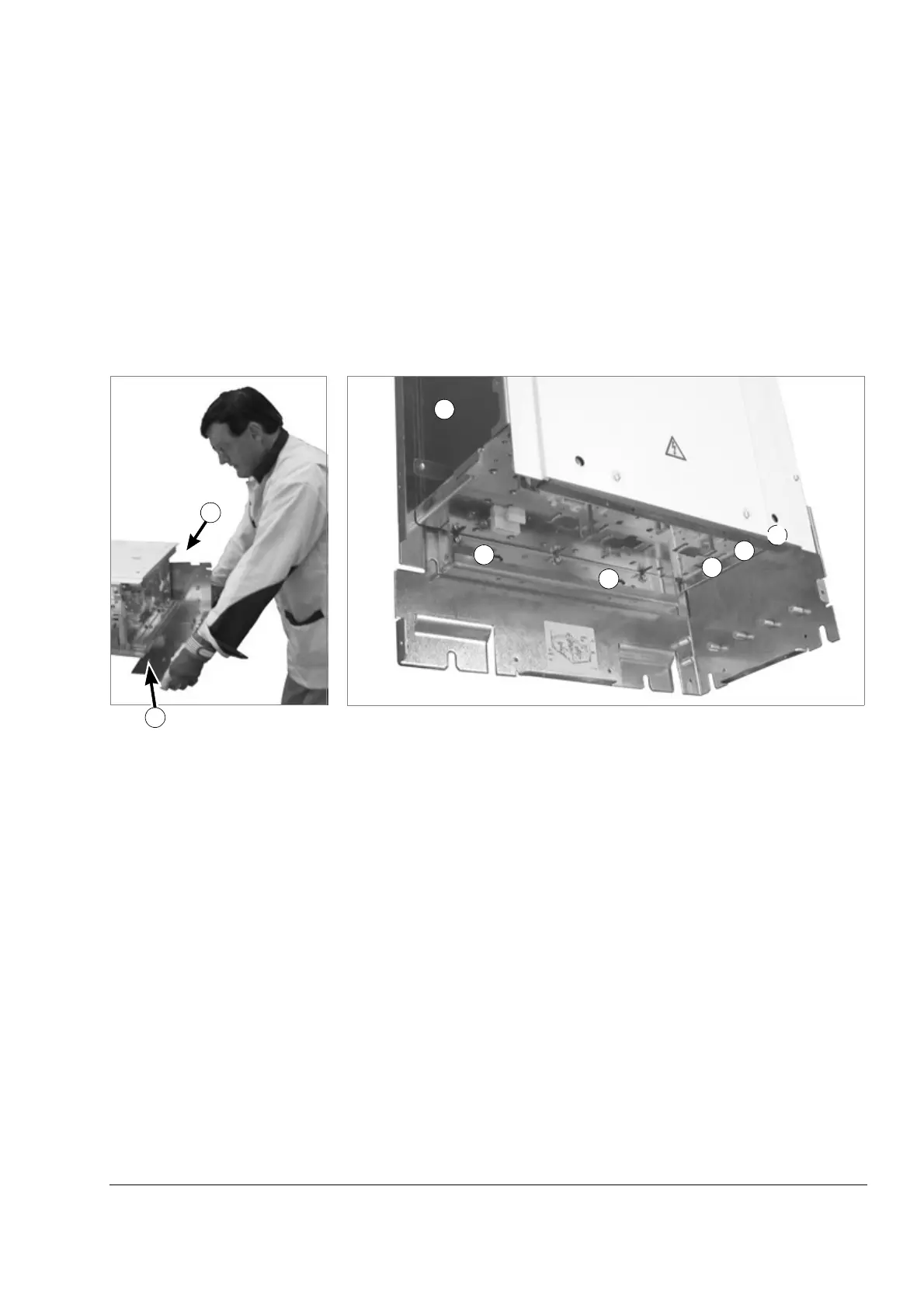

2. Fasten the L-plate to the base of the module.
A. Insert the two pins of the longer side of the L-plate to the counter holes in the side plate of the
drive module.
B. Slide the L-plate horizontally to match the three pins in its shorter side with the counter holes in
the drive module.
C. Fasten the L-plate with 5 screws.
B
A
C
C
C
C
C
1
