Mechanical installation of non-pre-assembled units (ACS800-04M)
87

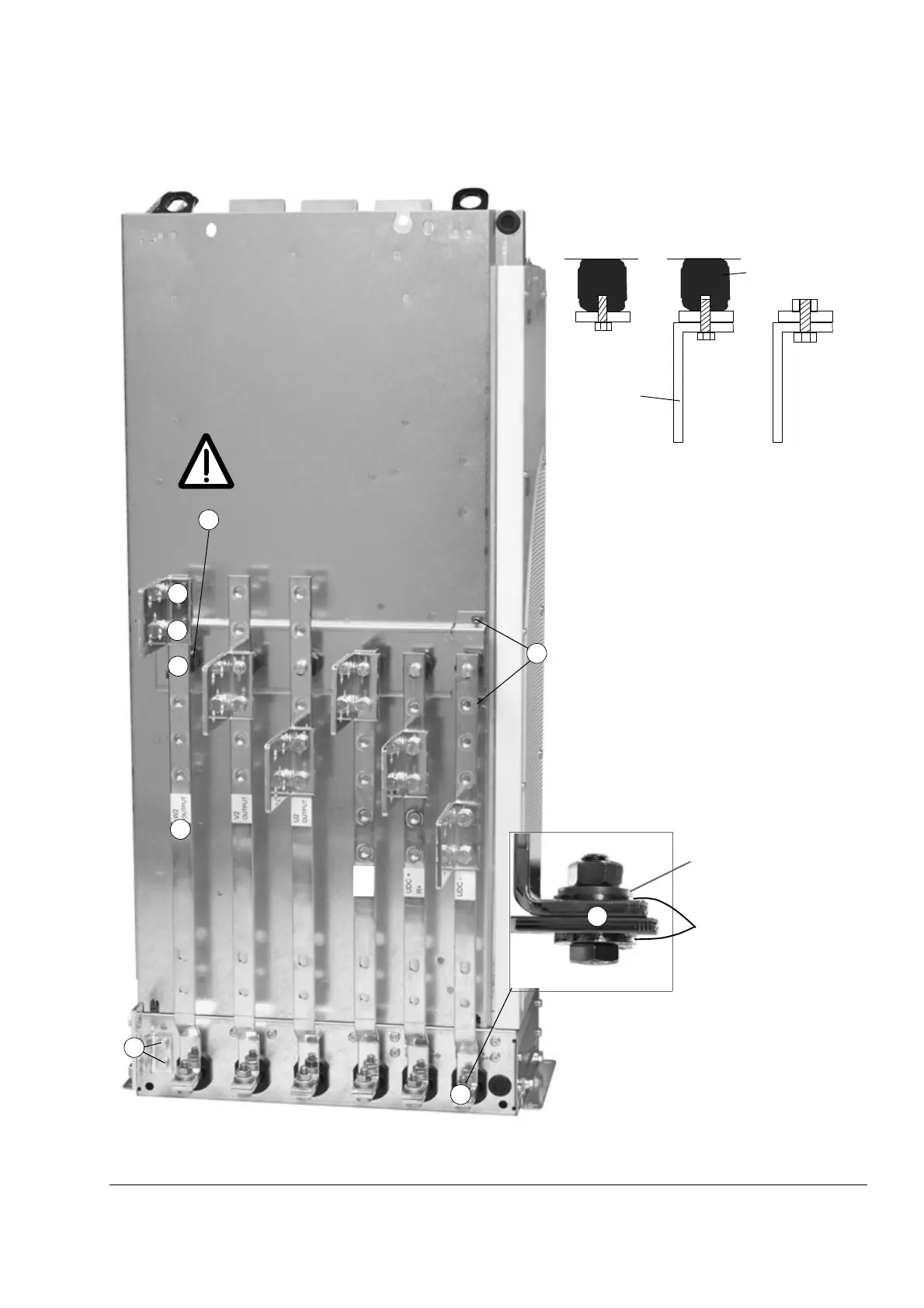

View of output busbar connections of frame size R7 (DC and brake busbars included)
Plain washer with
electroplated zinc coating
and passivation
1
Spring washer with
mechanically sprayed zinc
coating
Nut
M10x30
1
2
3
4
4
4
8
Tightening torque
M8: 15...22 Nm (3.7 lbf ft)
M10: 30...44 Nm (22...32 lbf ft)
M8
WARNING! Fasten the output busbars to the insulating supports with M8x16 screws when
no cable lug terminal is connected, but with M8x20 screws when a cable lug terminal is also
connected with the same screw. Screwing an M8x20 screw without a cable lug terminal
through the busbar into the insulating support will break the insulating support. Fasten the
cable lug terminals elsewhere with M10x25 screws.
M8x16
M8x20
M10x25
Cable lug
terminal
Insulating support
Top view of insulating support and cable
lug terminal connections
9
R-
